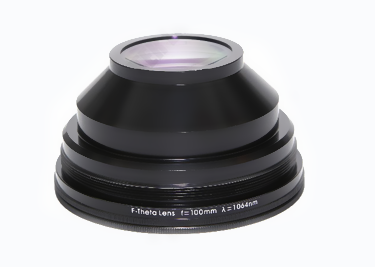

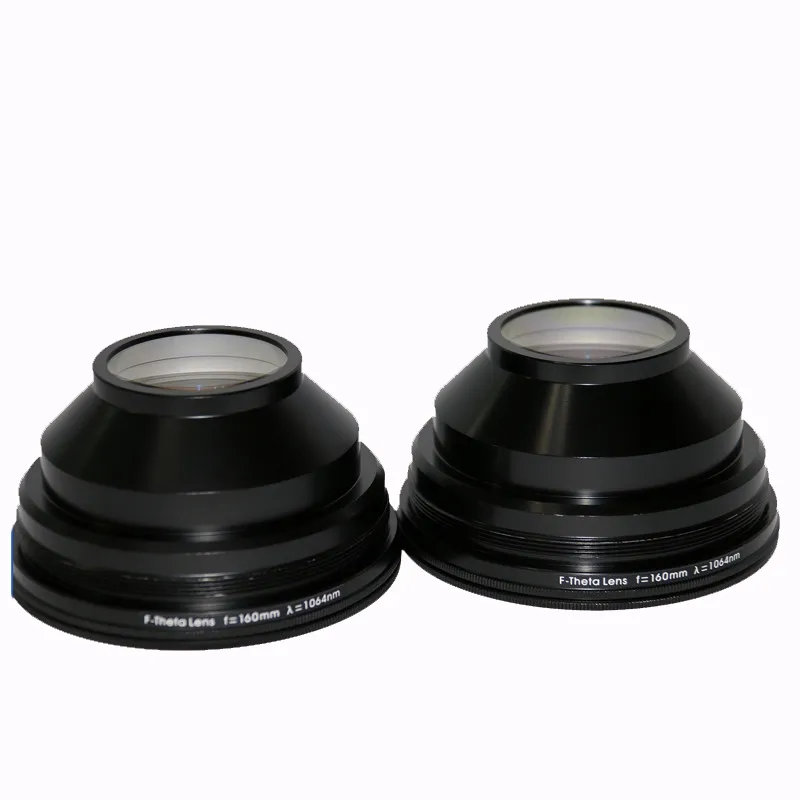

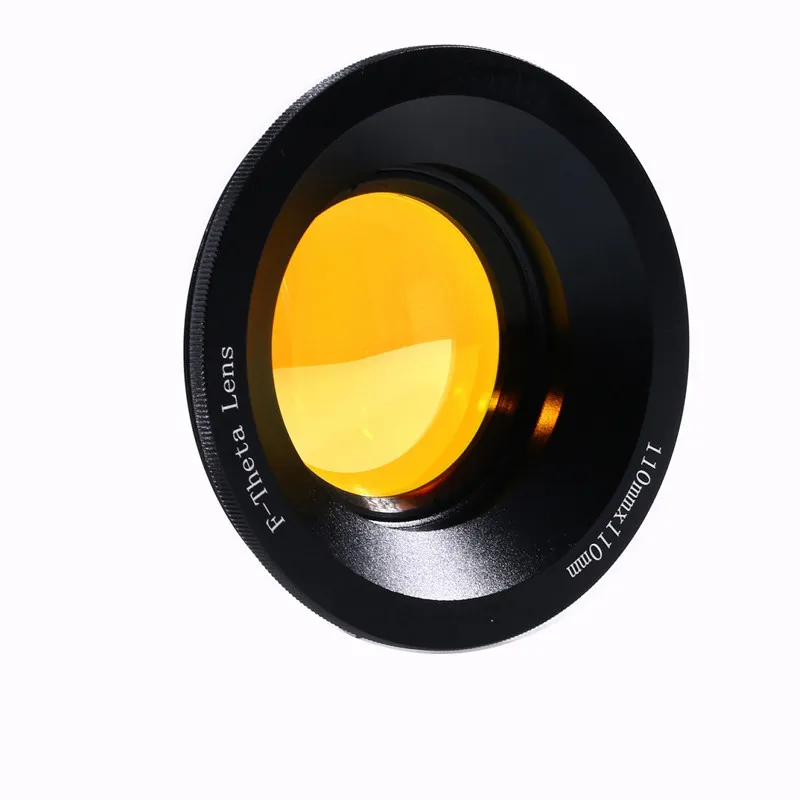

1064nm Laser F-Theta Lens

Description

F-Theta Scanning Lens — Nd:YAG, Fiber Laser

F-theta scanning lens is used in conjunction with XY galvanometer scanner and beam expander to form a two dimensions scanning system. The scan lens is optimized to provide a flat field image with diffraction-limited spot size in micron scale over the entire scan field. The image field height is almost directly proportional to the scan angle. Typically, the linearity f-theta distortion is kept less than 1% without software correction to ensure minimal distortion. High transmissive AR coating is coated onto the lens elements surface to ensure minimal power loss and hence increase the throughput. The scan lenses are designed with a industrial standard M85x1 mount threading to facilitate lens installation into laser machine. To accommodate different standard mount thread, mount adaptors are available for ease of conversion. Most of our products are RoHS compliant unless otherwise stated.

Aperture stop is set at center point of X-Y mirror in case of two-axis scanning system.

SL Series 1064nm Scan Lenses

Description of part Number: SL-xxxx-yyy-zzz  YAG laser f-theta lenses   xxxx — laser wavelength (eg.1064 means 1064nm ), 10.6 means 10.6um. yyy — mark field (eg.70 means 70x70mm),  zzz — focal length in mm
