| Robot Model | ER5-2100 |
| Maximum reach | 2146 MM |
| Effective payload | 50 KG |
| Robot weight | 550 KG |
| Drive type | AC Servo Drive |
| Repeatability | ±0.06 MM |
| Common types of workstations | Assembly |

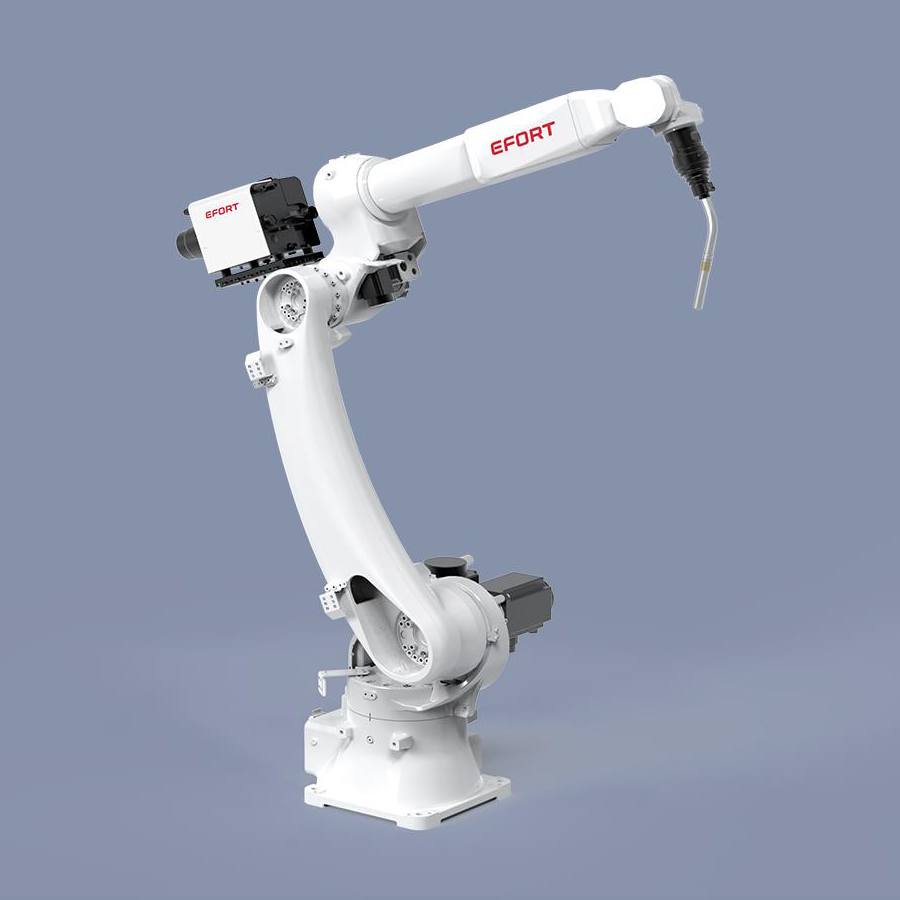

| Robot Model | ARC12-2000 |
| Maximum reach | 2025 MM |
| Effective payload | 12 KG |
| Robot weight | 185 KG |
| Drive type | AC Servo Drive |
| Repeatability | ±0.03 MM |
| Common types of workstations | Standalone, ground track, dual gantry |

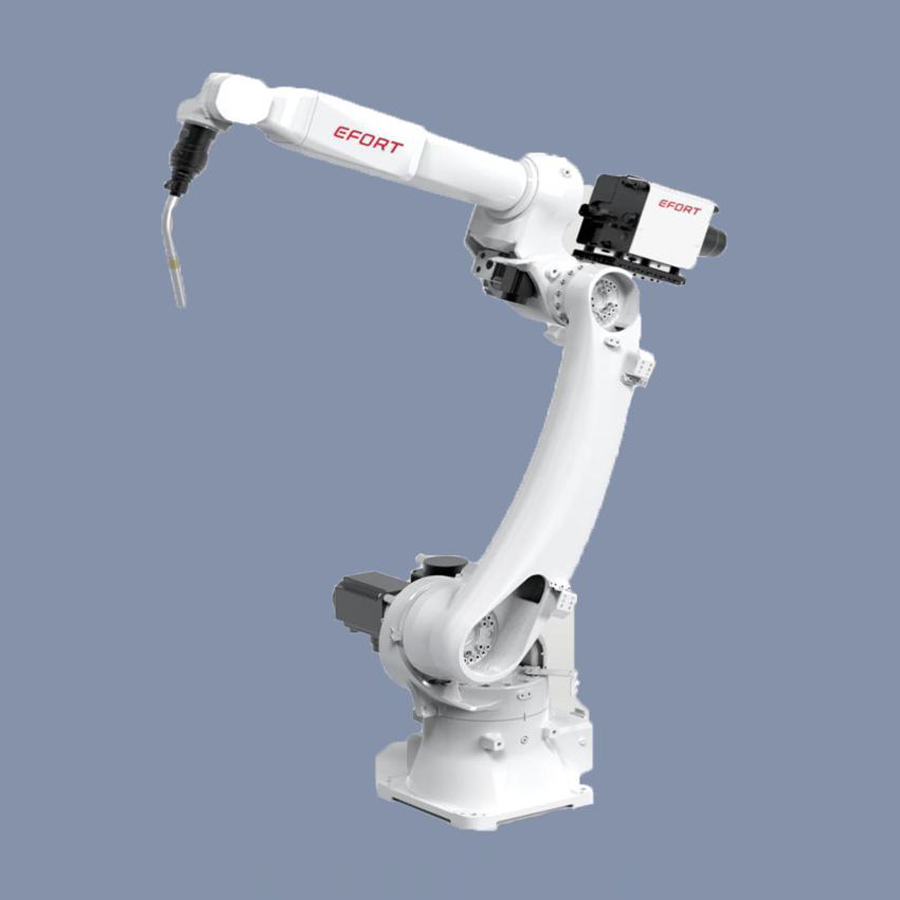

| Robot Model | ARC10-1600 |
| Maximum reach | 1604 MM |
| Effective payload | 10 KG |
| Robot weight | 169 KG |
| Drive type | AC Servo Drive |
| Repeatability | ±0.03 MM |
| Common types of workstations | Assembly,dual gantry |
| Model | Artsen PM500FR |
| Control mode | Digital control |
| Rated input voltage/phase number | 3-phase AC 380V ±25% |
| Output characteristics | CV |
| Rated input current | 500A |
| Rated input voltage | 39V |
| Rated output no-load voltage | 73.3V |
| Rated load duty cycle | Direct current 60% |
| Model | PLUSE MIG-500RP | |
| Input Power Supply | 3-phase AC 380V | |
| Input Power Supply | Power grid | 31KVA |
| Generator | 48KVA | |
| Input protection | Fuse | 50A |
| Circuit breaker | 63A | |
| Cable | Input side | ≥6MM2 |
| Output side | 70MM2 | |
| Connect the wires | ≥6MM2 |

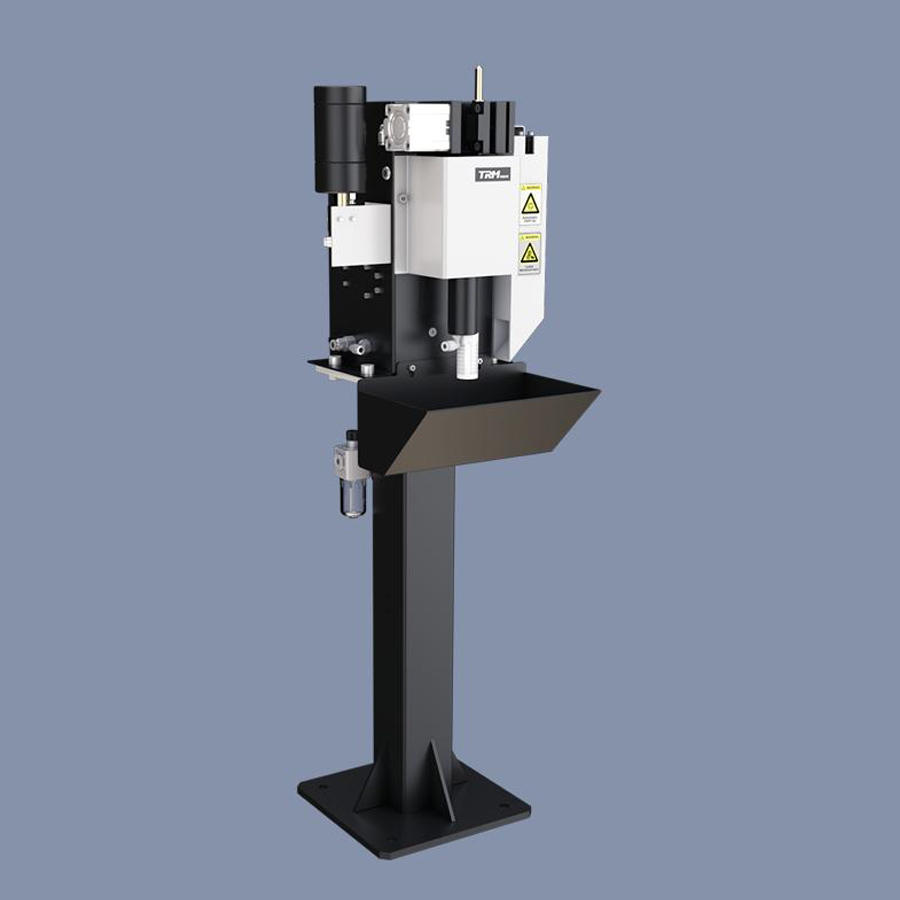

| Model | Pneumatic Gun Cleaner Station SC230A SE |
| Input air pressure | Oil-free dry compressed air, 5.5-8 BAR |
| Air consumption | Approximately 10L/S |
| Pneumatic motor | Approximately 650 RPM, maximum torque 8 Nm |
| Control voltage/current | 24VDC /IMAX=0.15A |
| Cutting capacity | Solid welding wire maximum 1.6mm |
| Flux-cored welding wire maximum 3.2mm | |
| Cutting time | Approximately 0.5 seconds |

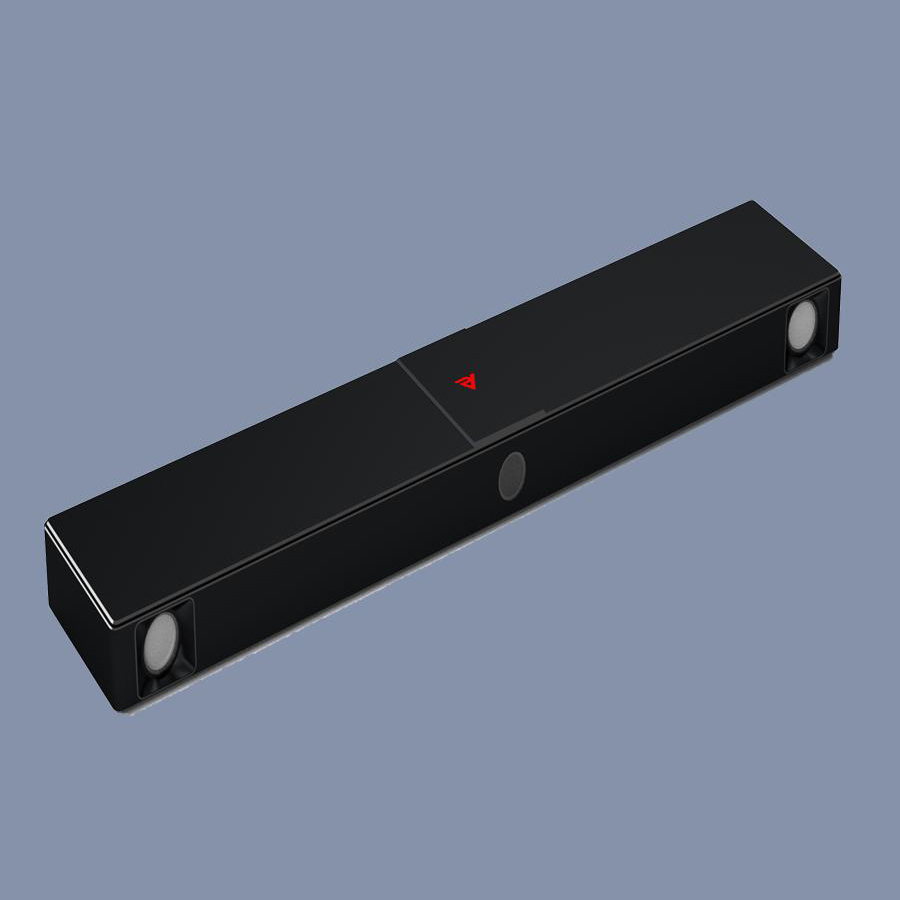

| Model | RVC-P32200 |
| Characteristics | Binocular, wide field of view |
| Protection | IP65 rated protection |
| Applicable scenarios | Large-scale “eyes outside the hands” robot |
| Guidance | Loading and unloading, palletizing and depalletizing, spraying, welding, dispensing, cutting, grinding, positioning and guiding |

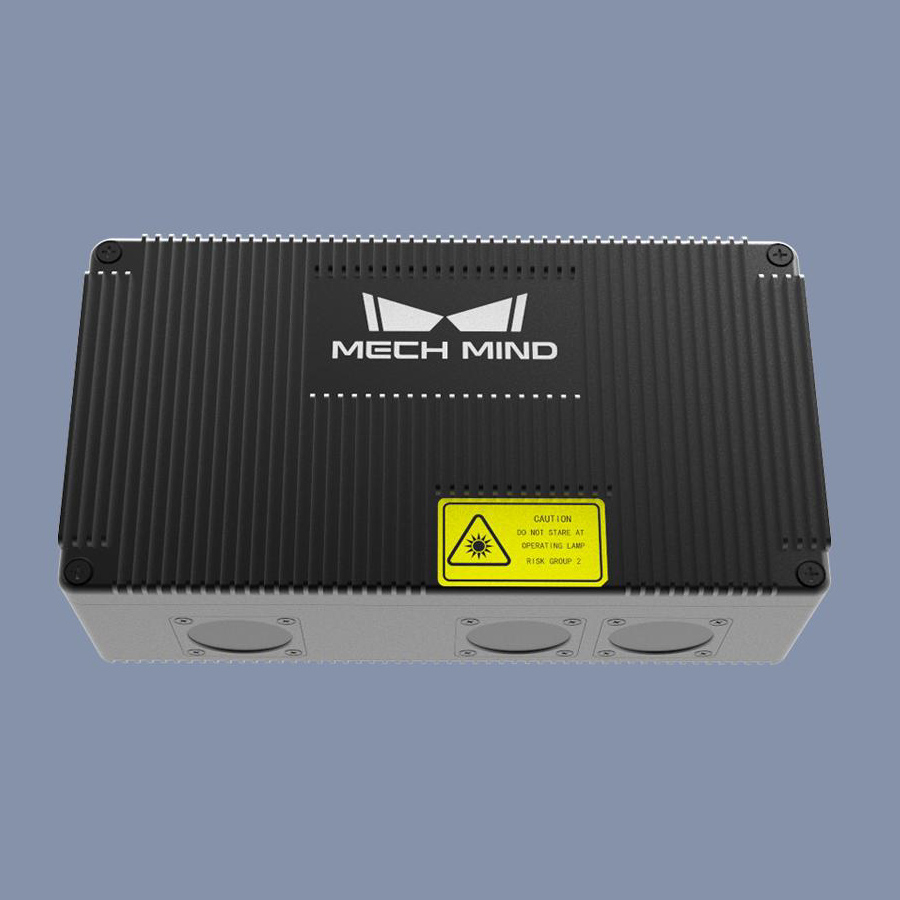

| Model | 3D-MEMS Camera |
| Recommended working distance | 350MM-700MM |
| Resolution | 1280×1024 |
| Acquisition time | 0.8-1.3 S |
| Scanning mode | Single/continuous scan |
| Point cloud format | PCD、PLY、TXT |
| Image type | Grayscale image, depth image |
| Model | PRO XS |
| Recommended working distance | 300~600 |
| Resolution | 1280×1024 |
| Pixel count (MP) | 1.3 |
| Typical acquisition time (s) | 0.7~1.1 |
| Baseline length (mm) | 93 |
| Outer dimensions (mm) | 160x52x87 |
| Model | APW503 |
| Rated current | CO2 500A/100% |
| Duty cycle | MAG 400A/100% |
| Cooling method | Dual water cooling (expandable to triple water cooling) |
| Wire diameter | 0.8–1.6MM |

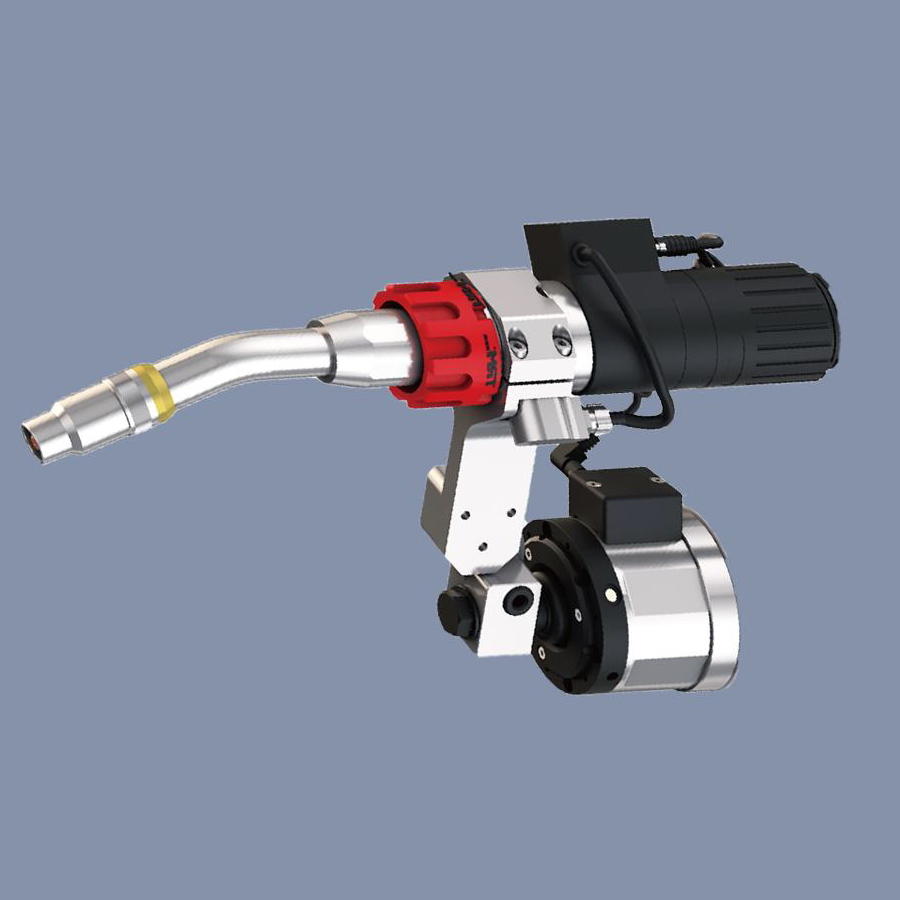

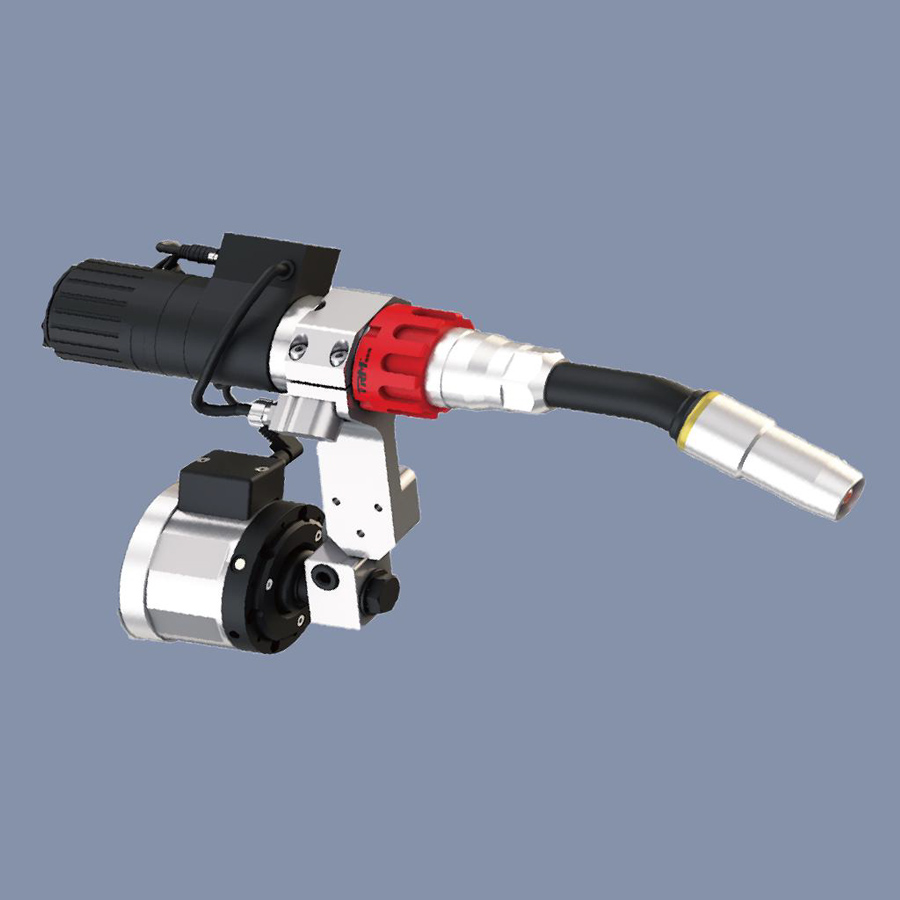

| Model | TRM651W |
| Gun neck angle | 22°，45° |
| Cooling method | Liquid-cooled |
| Rated value | 600A,CO2 |
| 500A Mixer M21(IS014175) | |
| Duty cycle | 100% |
| Wire diameter | 1.0~1.6MM |
| Model | TRM613WPP |
| Gun neck angle | 22°，45° |
| Cooling method | Liquid-cooled |
| Rated value | 550A,CO2 |
| 500A Mixer M21(IS014175) | |
| Duty cycle | 100% |
| Wire diameter | 0.8~1.6MM |

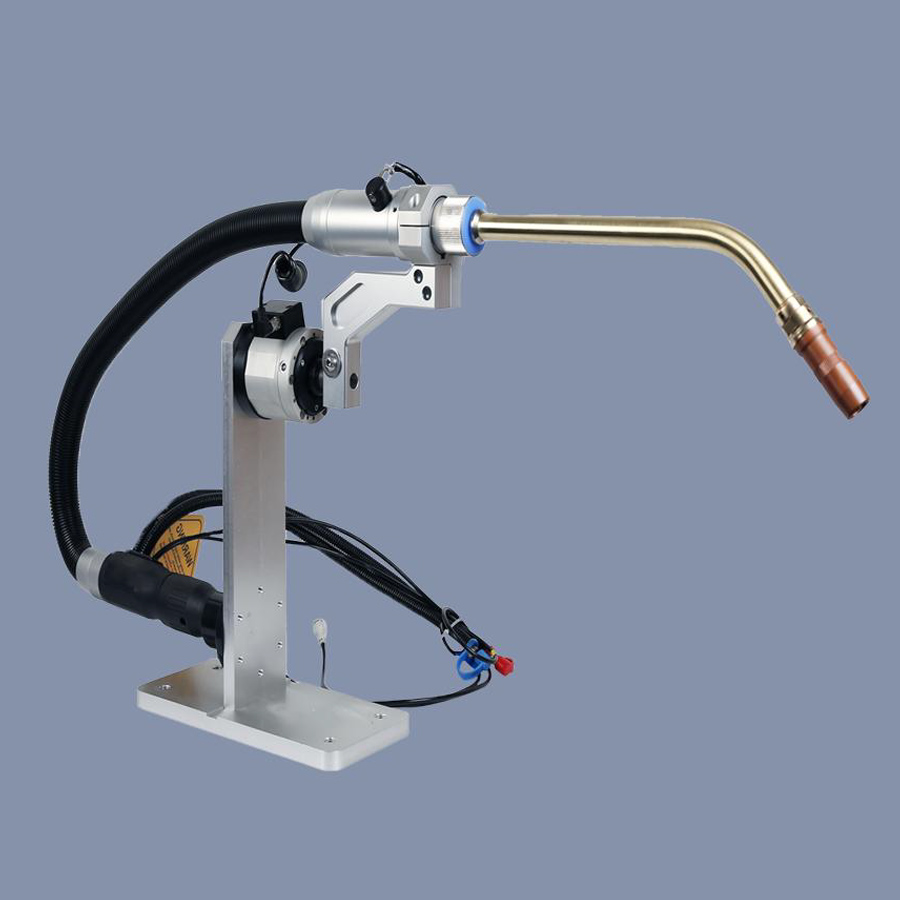

| Model | TRM602W |
| Gun neck angle | 45° |
| Cooling method | Liquid-cooled |
| Rated value | 550A,CO2 |
| 500A Mixer M21(IS014175) | |
| Duty cycle | 100% |
| Wire diameter | 0.8~1.6MM |

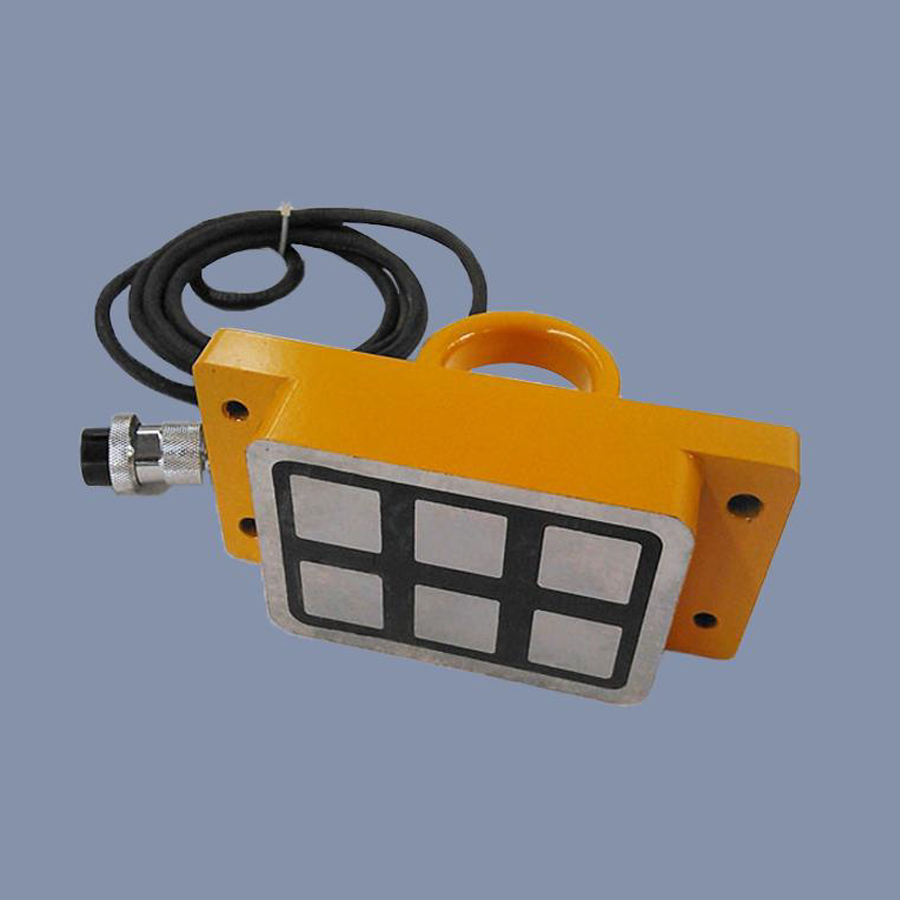

| Model | QC10-80-B1-W type electric permanent magnet |
| Input power supply voltage | AC220-380V |
| Input power supply frequency | 45HZ-65HZ |
| Output charging and discharging pulse current | ≤50A(80A) |
| Multi-channel charging and discharging demagnetization switching interval time | ≤0.25 秒 |
| Charging and discharging demagnetization time | 0.1-0.99S |
| Operating temperature | -10~45℃ |

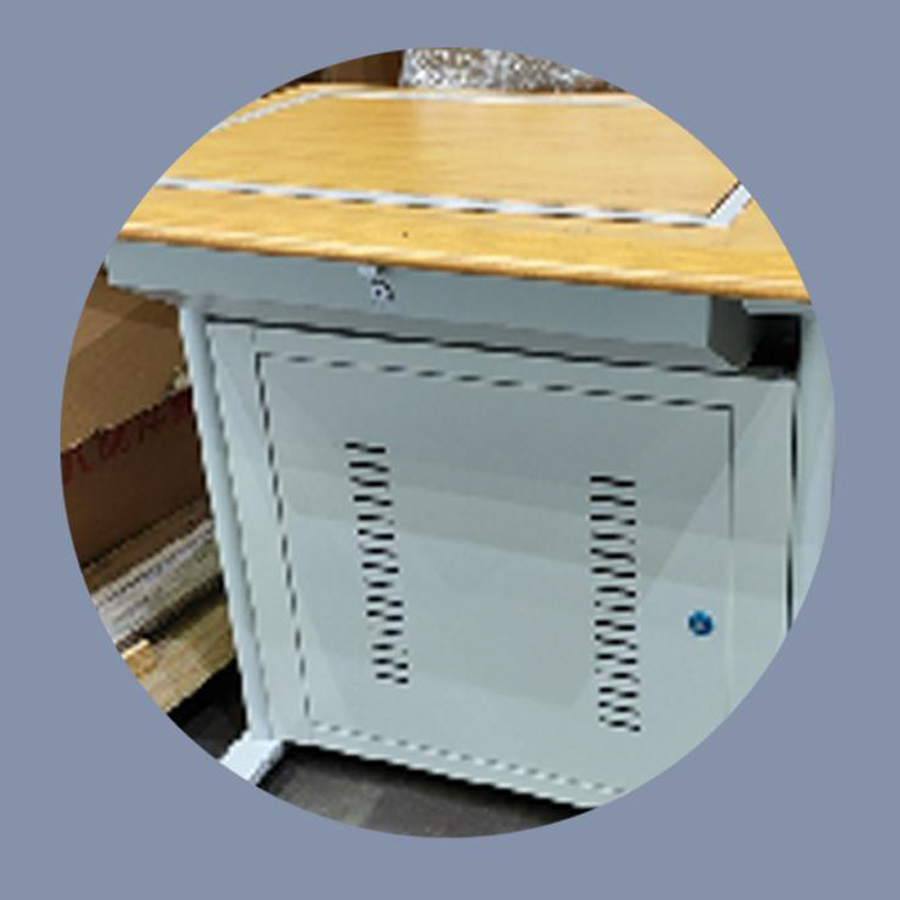

| Product name | Control console |
| Specifications and dimensions | 900*600*750（Special dimensions can be customized through negotiation） |
| Custom manufacturer | Tianjin Cheng |

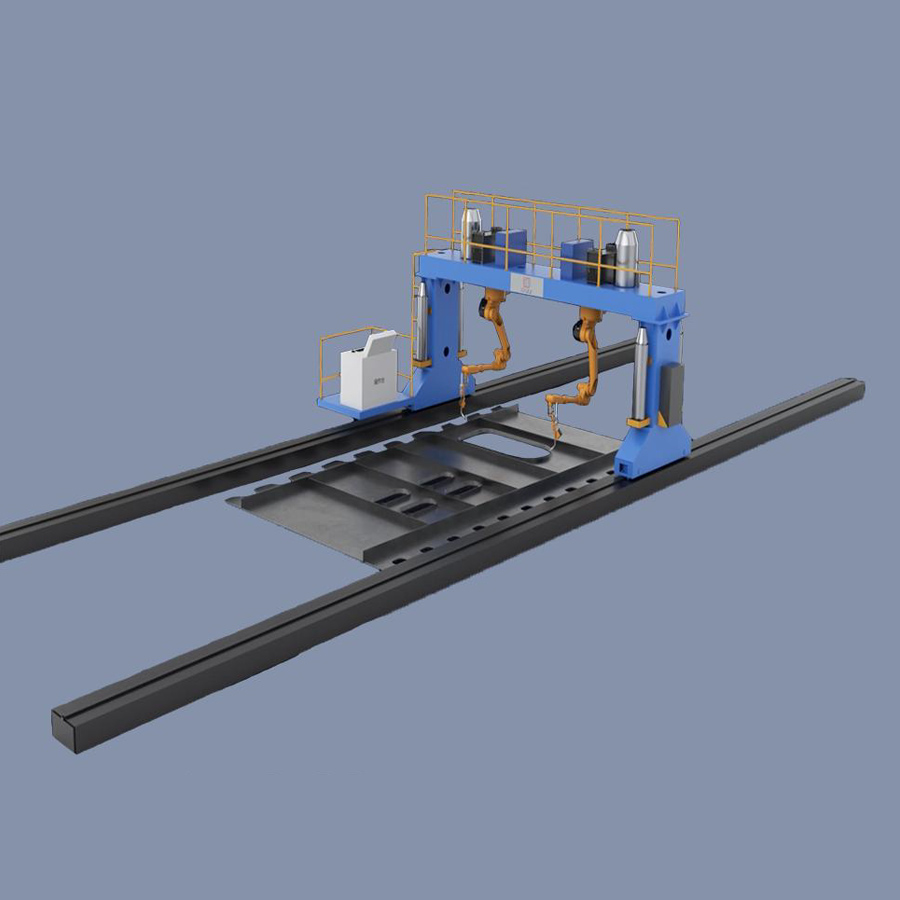

| Model | Ground track：DG-6X |
| Gantry: Seven-axis, eight-axis, nine-axis | |
| Cantilever: Eight-axis, nine-axis, ten-axis | |
| Gantry: Customized | |
| Manufacturer | HAIMADE,SHIMPO,KETA,HYWD |

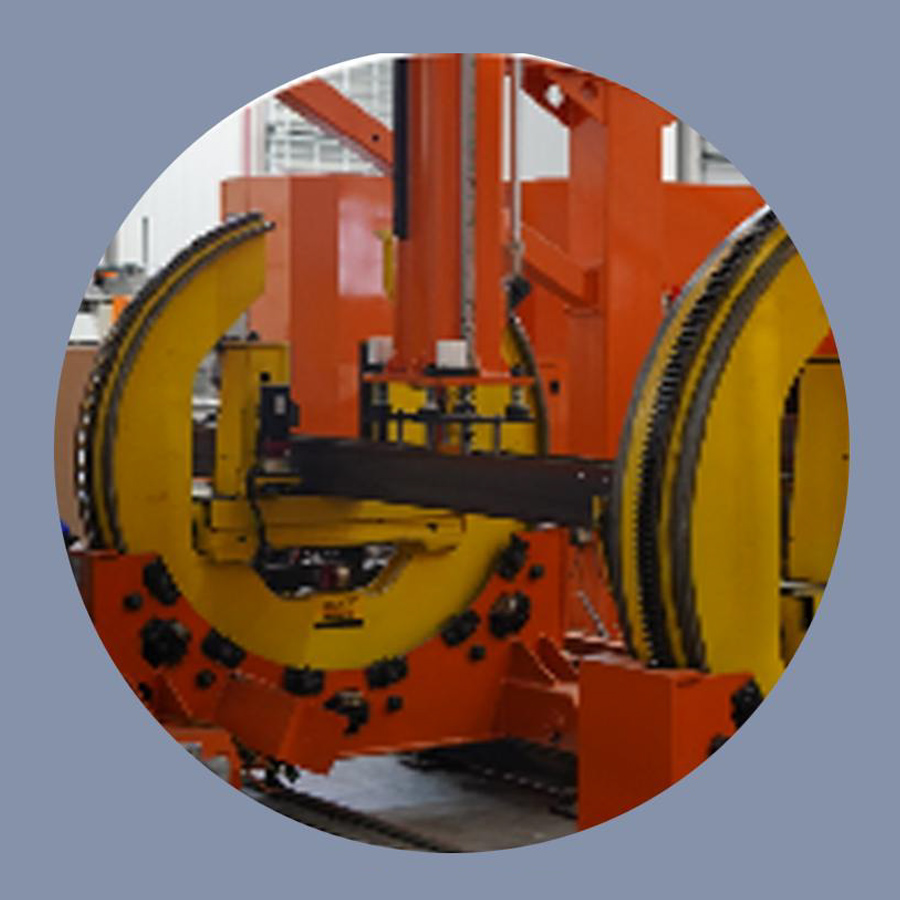

| Product name | HYWD C-type displacement machine |
| Payload | 2 tons |
| Flipping angle | 90°+180° |
| Moving speed | 20 M/MIN |
| Maximum flipping speed | 2.5 RPM |
| Conductive capacity of the equipment | 500A |
| Workpiece clamping method | Electric clamping, with mechanical clamping function |

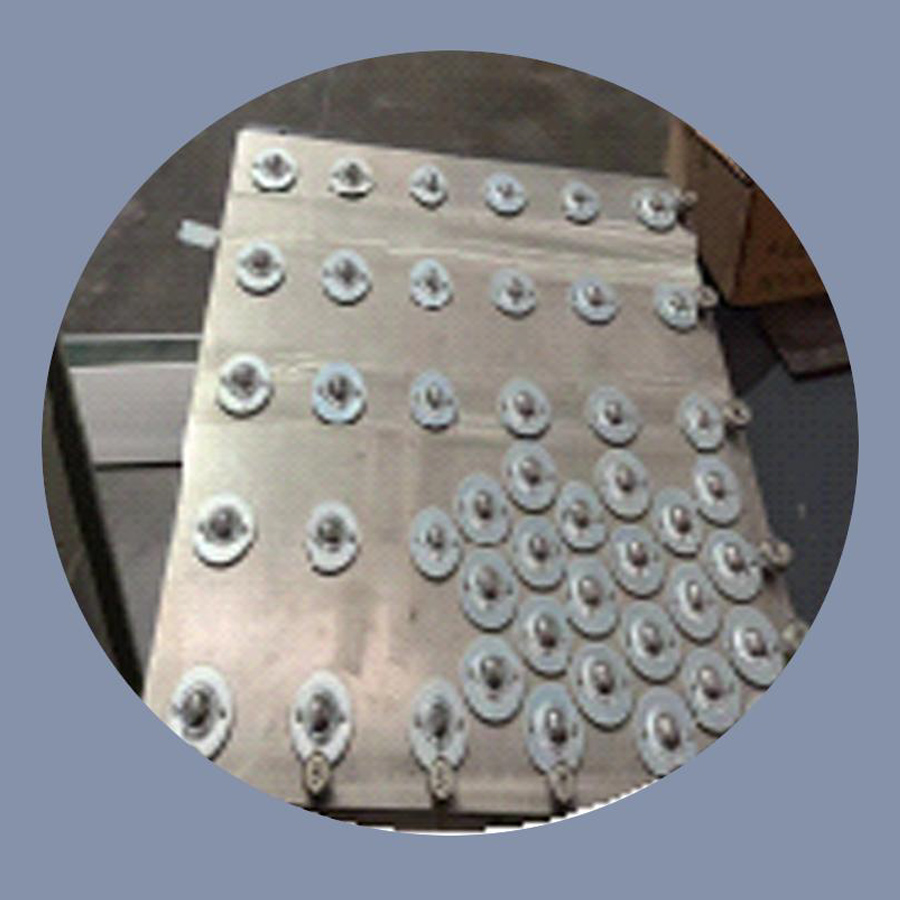

| Product name | Bull’s eye sliding table |
| Material | Stainless steel |
| Model | Customizable |
| Manufacturer | FUBAITE |
