Programming-Free Robotic Welding Systems

Robotic Welding Systems for Steel Fabrication

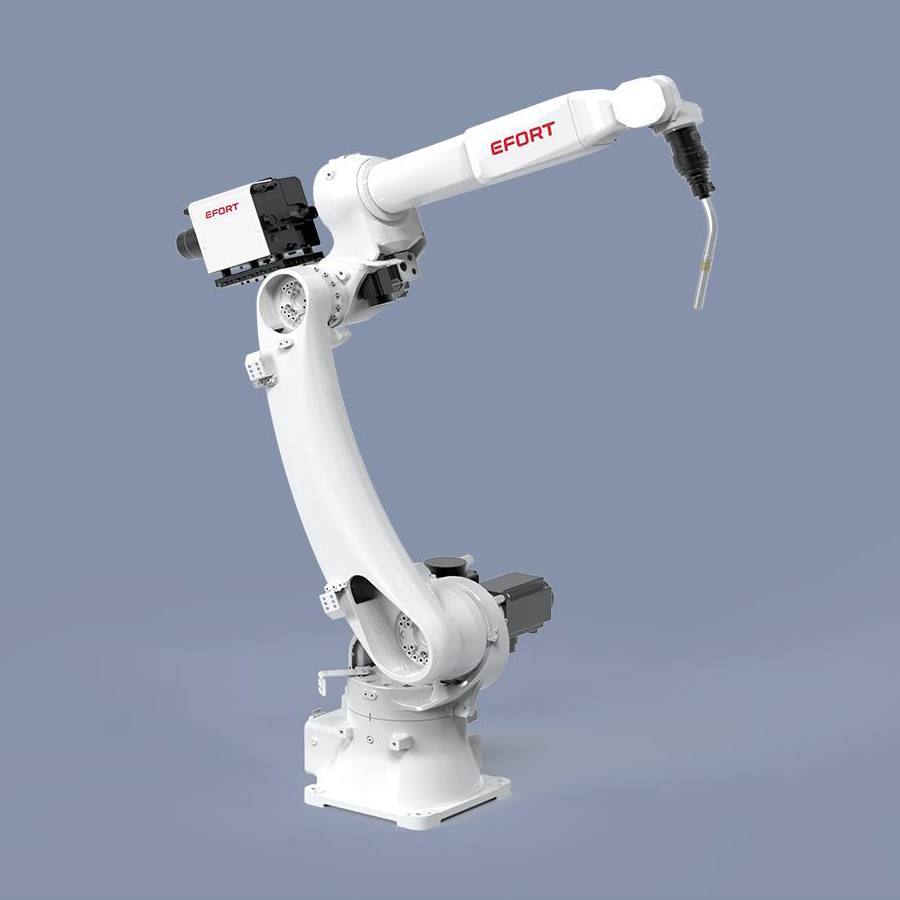

JTCLASER programming-free robotic welding systems combine welding robots, vision-based seam recognition and workstation control software to support the fabrication of steel components. The range includes cantilever, gantry, ground rail, single robot, and robotic assembly and welding workstations. Typical workpieces described in our product range include structural beams and columns, brackets, bridge plate units, ship panels and other fabricated assemblies.

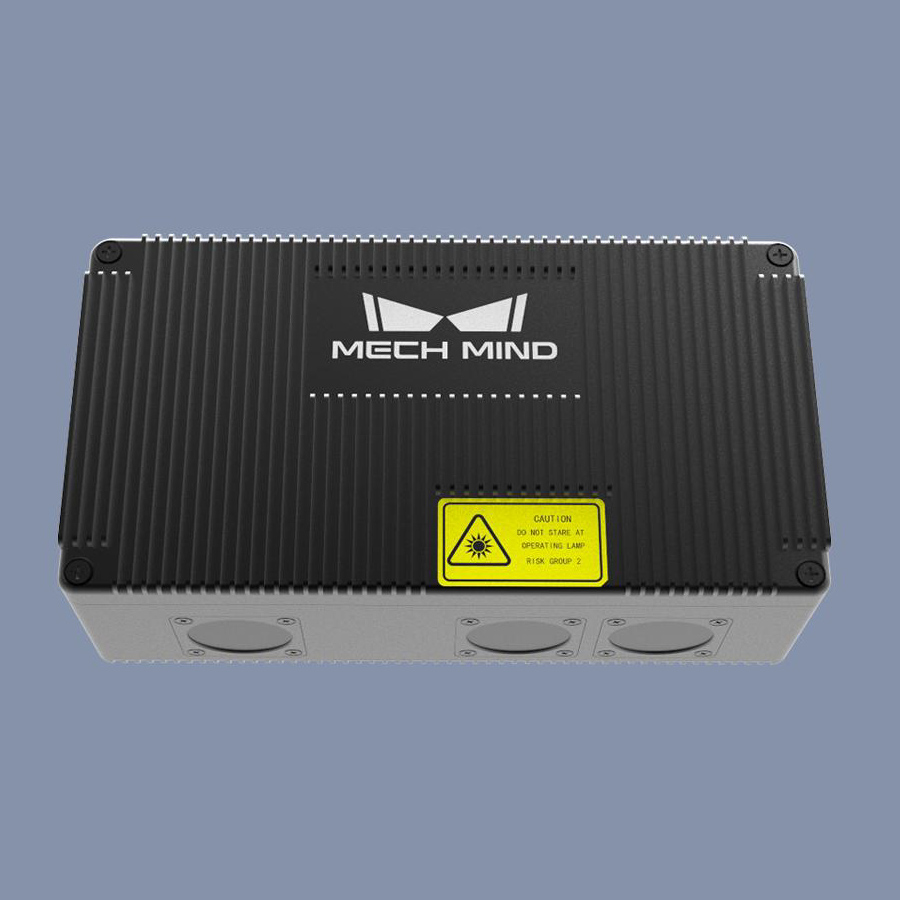

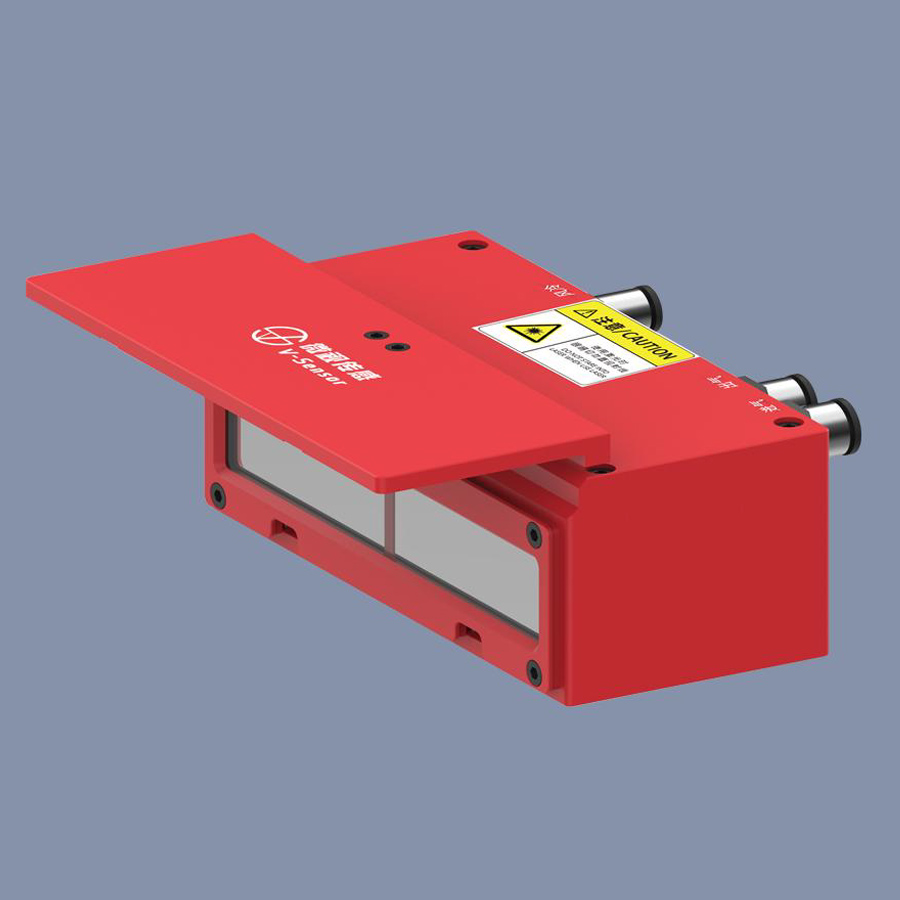

For suitable welding applications, the vision system identifies the position of accessible weld seams and supplies information for welding path generation and process selection. The equipment still requires application setup, appropriate welding parameters, workpiece support and a review of torch access. Programming-free operation does not mean that every part can be welded without preparation. Assembly and welding workstations may also use imported model data as part of their workflow.

Choose a workstation around your actual components rather than the axis count alone. Workpiece dimensions, seam positions, material, joint preparation and factory layout determine the appropriate working envelope and equipment configuration. The product links below explain the different arrangements and their intended applications. Send us drawings, material information and photos of the joints to discuss a suitable system.

How to Choose a Robotic Welding Workstation

Cantilever and gantry welding workstations use external axes to position the welding robot over larger workpieces. The 7-axis models are described for applications such as structural beams, columns and brackets. The 8-axis models extend the range toward plate-unit structures used in bridges and ships. Our 9-axis cantilever reference arrangement uses X, Y and Z travel, while the 9-axis gantry product describes a dual-robot arrangement. These configurations should be compared using their own product specifications, rather than assuming that all systems with the same axis count have the same reach or capacity.

A ground rail workstation moves the robot along the length of the work area. A single robot workstation covers components that can be presented within the robot working envelope. The assembly and welding workstation combines material positioning with welding operations for suitable production lines. Before selecting a model, review seam visibility, welding position, part turning, fixture access and the required material flow. Compare the product pages, then share representative drawings and weld requirements with JTCLASER so that the proposed layout can be checked against the actual job.
