3D Vision Reverse Modeling: How Does Multi-Layer Multi-Pass Welding Solve Real Production Deformation Problems?

I've been in the laser and welding automation industry for nearly 20 years now, and let me tell you something that keeps factory owners up at night: deformation. You weld one pass, the workpiece warps. You try to weld another pass, everything's shifted. By the third or fourth pass, you're looking at scrap metal. But here's what most people don't know - with 3D vision reverse modeling technology, you can weld one pass, pull the workpiece away for other work, bring it back days later, and continue welding the third, fourth, and fifth passes as if nothing happened. This isn't magic. It's the difference between line laser systems that lose track after the first weld and 3D vision systems that can rescan the actual physical part and regenerate paths based on what's really there.

I remember the first time I saw this problem up close. We had a customer - a steel structure fabrication shop - who came to us frustrated beyond belief. They'd invested in what they thought was a top-tier robotic welding system. Line laser tracking, fancy German robot, the whole package. Cost them a fortune. But here's what happened: they could weld the first pass beautifully. Perfect penetration, nice bead appearance, everything looked great. Then they'd move the workpiece to another station for assembly work, bring it back the next day, and the robot couldn't find where to weld the second pass. Why? Because after that first weld, the part had moved. Thermal stress, handling during transport, natural settling - all of it meant the part wasn't in the exact same position. And that line laser system? It was looking for theoretical points that no longer existed in the real world.

Can You Weld the Third, Fourth, and Fifth Passes After the Workpiece Has Been Moved Away and Returned?

You know what I heard at a trade show last month? A competitor's salesman telling a potential customer, "Oh yeah, we can do multi-pass welding, no problem." I wanted to interrupt right there. Because there's multi-pass welding where you weld all passes continuously - that's easy, anyone can do that - and then there's multi-pass welding in real production conditions.

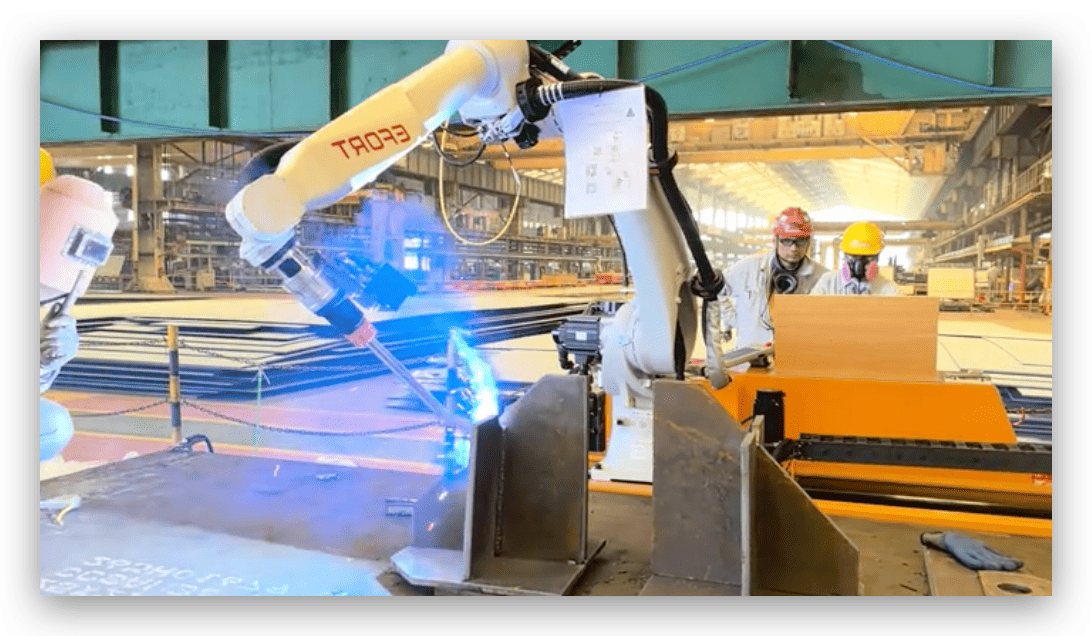

Real production means you weld one or two passes, the workpiece gets moved to another station, maybe it sits overnight, maybe it goes through other processes, and then it comes back. Can your system pick up where it left off? That's the real question. With 3D vision technology, the answer is yes. The system rescans the actual part, sees what's already been welded, identifies the new starting points based on reality - not theory - and continues the work. Line laser systems simply cannot do this because they're looking for geometric features that change after welding.

Let me break down what actually happens in a real factory. You've got production schedules. You've got multiple workpieces moving through different stations. You cannot afford to tie up a robotic welding cell for hours just to complete all welding passes on one part. That's not how modern manufacturing works. You need flexibility. You weld the root pass on Part A, move it out, bring in Part B, weld its root pass, move it out, bring in Part C. Then maybe tomorrow you bring Part A back for the second pass.

This is where most systems fall apart. I've seen it happen dozens of times. The robot goes to where it thinks the weld should be, based on the original CAD model or the initial teaching points, and it's off by millimeters or even centimeters. In robotic welding, being off by even 2-3 millimeters means you're welding air or you're burning through the material. Neither outcome is acceptable.

Now, here's the technical reality that nobody wants to talk about. When you weld that first pass, you're introducing massive amounts of heat into the material. That heat causes expansion, then contraction as it cools. This thermal cycle creates internal stresses. The material wants to move. It will move. Depending on the joint configuration, the material thickness, the welding parameters, and how the part is fixtured, you can see movement ranging from a fraction of a millimeter to several millimeters.

I remember working with a shipyard - can't name them due to NDAs, but major operation, thousands of tons of steel moving through their facility monthly. They were doing multi-pass groove welds on thick plate assemblies. We're talking 25mm plate, 6-8 weld passes to fill the joint. Their old process? Weld all passes continuously. The problem? By the time they finished, the thermal input was so high that the parts were distorting badly. They were spending hours with cutting torches and hydraulic jacks trying to straighten everything out. Sometimes they just had to scrap the part and start over.

We came in with our 3D vision system and completely changed their approach. First pass - weld it, pull the part out, let it cool completely. During that cooling time, they're working on other parts. Next day, part comes back, system rescans it, identifies where the first pass actually is (not where it was supposed to be), calculates the optimal path for the second pass considering the actual as-built condition, and welds it. Pull it out again, let it cool. Third pass, same process. By allowing the part to cool between passes and by adapting to the actual part geometry after each weld, they cut their distortion problems by about 70%. Rework dropped dramatically. Scrap rate went way down. Productivity actually went up because they could keep multiple parts moving through the cell instead of babysitting one part through an entire multi-hour welding cycle.

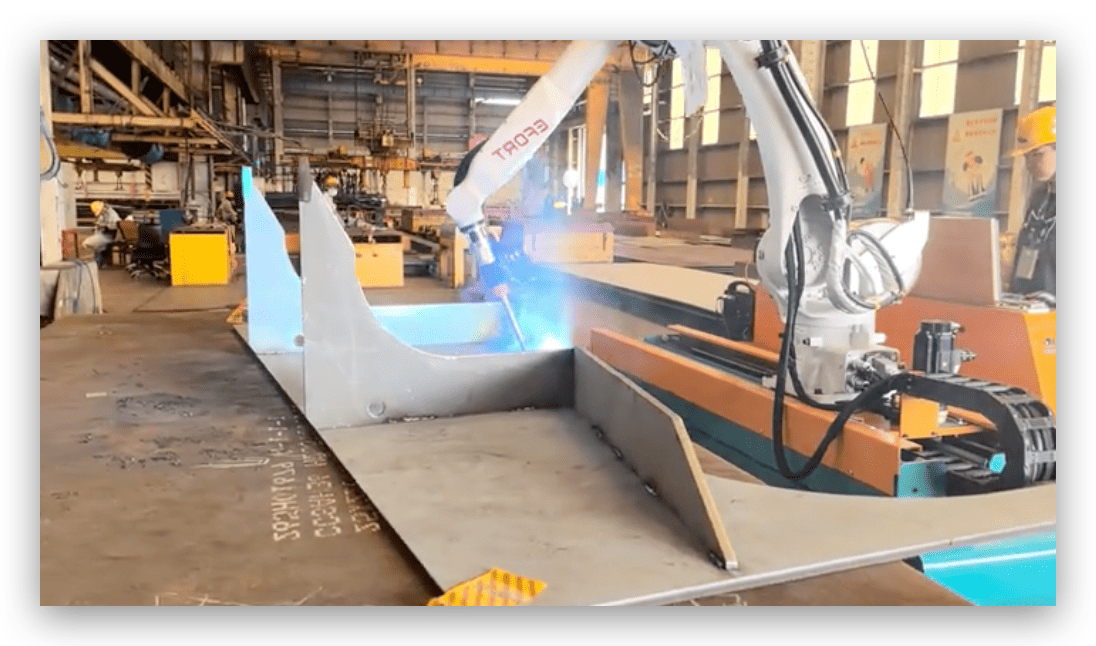

But here's the thing that makes this possible - and this is crucial - it's the difference between 2D line laser tracking and 3D vision systems. Line laser works by projecting a laser line onto the part and looking at how that line deforms around features like a groove or a joint. It's looking for specific geometric signatures. "I'm looking for a V-groove that's 10mm wide at the top, 60-degree included angle." When you weld that first pass, you fill in part of that groove. Now the laser is looking at a different geometry. It doesn't know what to do. It was trained to find an empty groove, not a partially filled one.

3D vision is fundamentally different. It's capturing a point cloud - a three-dimensional map of the actual surface. It's not looking for specific features. It's scanning everything, building a digital model of what's actually there right now, and then calculating weld paths based on the intersection of surfaces. When you bring that part back after welding the first pass, the system scans it fresh. It sees the new bead, it sees the remaining unfilled area, it calculates where the next pass should go based on the current reality. This is what I mean by "reverse modeling." You're not modeling what should be there according to the drawing. You're modeling what is there, right now, in the real world.

I was doing a live demonstration of this recently - actually had it streaming to show customers the technology in real-time. We set up a test piece, deliberately moved it between passes. First pass looked good. Then we literally pulled the part off the table, moved it around, set it back down in a slightly different position. Everyone watching was thinking "okay, this is where it's going to fail." Hit the scan button. System took about 15 seconds to capture the point cloud, another 10 seconds to process it and generate the new path for the second pass. Hit start. Robot moved in, found the weld, completed the pass perfectly. No manual teaching, no adjustment, no fiddling with offsets. Just worked.

Technical Implementation Details

Now let's talk about how this actually works in practice, because the devil is in the details. Our 3D vision system uses structured light scanning. We project a pattern onto the workpiece and capture it with high-resolution cameras from multiple angles. The system analyzes the distortion of that pattern to build the 3D point cloud. Resolution is typically around 0.1mm - that's the level of detail we're capturing.

Process Step	Time Required	Key Output
Initial scan and point cloud capture	10-20 seconds	High-resolution 3D surface data
Point cloud processing and filtering	5-15 seconds	Clean geometry with noise removed
Weld path calculation	3-10 seconds	Robot trajectory with all points
Welding parameter assignment	1-2 seconds	Complete weld program ready to execute

Once we have the point cloud, the software identifies the weld joint. For a groove weld, it's finding the intersection between the two surfaces that form the groove. For a fillet weld, it's finding where the two plates meet at an angle. The beauty of working with point cloud data is that the system isn't making assumptions. It's measuring actual distances, actual angles, actual positions.

Then comes path generation. The system calculates the robot trajectory to follow that weld joint. This includes not just the X-Y-Z position of the torch, but also the torch angle and orientation at every point along the path. For multi-pass work, the system needs to calculate the optimal position for each pass considering things like access, torch angle relative to the previous bead, and avoiding interference with the part.

Why Line Laser Cannot Recognize Welded Bead Contours, But 3D Vision Can Rescan and Generate New Paths?

This is where we need to get a bit technical, but I'll try to keep it practical. The fundamental limitation of line laser tracking comes down to how it sees the world. A line laser is essentially one-dimensional vision. Yes, it's seeing the deformation of a laser line in space, so it has some 3D information, but it's limited to what that single line can tell it.

Line laser tracking excels at finding pre-weld joint geometry. It can identify a groove, track a seam, follow an edge. But once you've deposited weld metal, the geometry changes in ways that confuse the line laser system. A 3D vision system, by contrast, captures the entire surface area. It sees the weld bead, the base material, the remaining unfilled groove - everything. It can then calculate where the next pass should go by analyzing the actual 3D topology of the part. This is not just an incremental improvement. It's a fundamental difference in capability.

I want to be really clear about something because I've heard competitors trying to claim their line laser systems can do this. They can't. And I'm not saying that to bash line laser technology - line laser is excellent for many applications. Single-pass welds, seam tracking on clean joints, following edges - line laser is actually faster and simpler for those tasks. But for multi-pass welding where you need to come back to a part that's been welded, moved, cooled, and possibly distorted, you need 3D vision. There's no way around it.

Let me give you a specific example. We had a customer fabricating pressure vessels - thick-wall cylinders with longitudinal seams. These seams required 8-10 passes to fill completely. Each pass deposited about 3-4mm of weld metal. After the first pass, the groove profile had changed significantly. The sharp V-shape of the empty groove was now rounded at the bottom where the root pass had been deposited. The included angle had effectively changed. The width at the top remained similar, but the depth was reduced by the root pass height.

A line laser system scanning this would be confused. It was programmed to look for a V-groove with certain dimensions. Now it's seeing something that doesn't match its expected profile. The software might try to fit the line laser data to the original groove model, resulting in inaccurate positioning. Or it might fail entirely and throw an error.

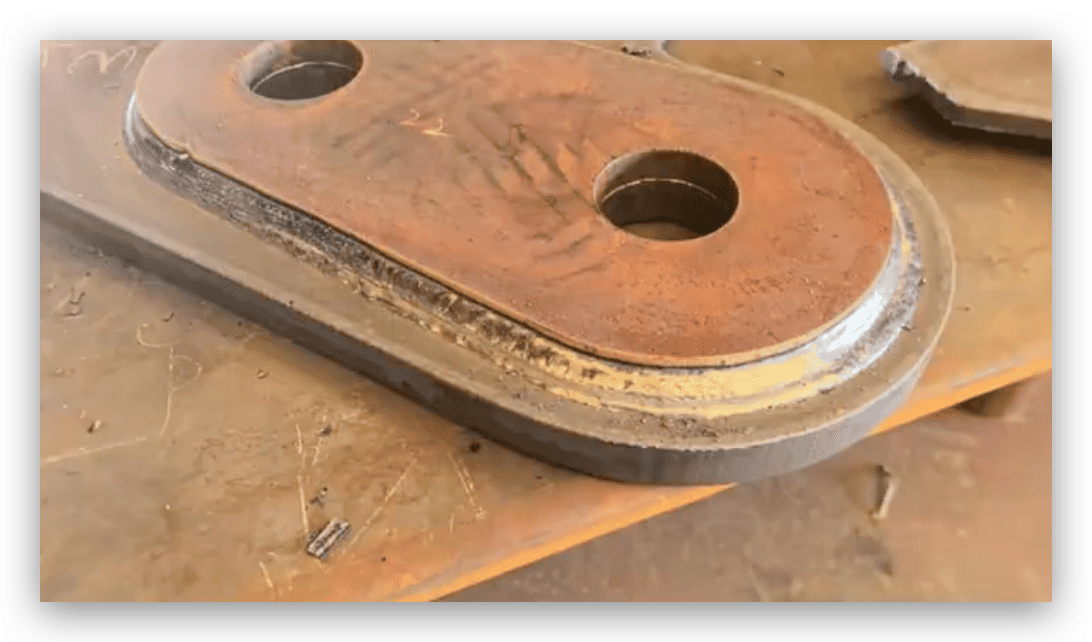

Our 3D vision system scanned the post-weld condition and saw exactly what was there. The point cloud showed the deposited root pass, the remaining unfilled portion of the groove, and the precise geometry of both. The software calculated that the second pass should be positioned slightly offset from center - deliberately placed to one side of the root pass to ensure proper fusion and to help control the filling sequence. This is actually good welding practice for thick-section groove welds, but you can only do it if your system can see and adapt to the actual as-welded condition.

Real-World Performance Data

I want to share some actual numbers from our installations because claims mean nothing without data. At a steel structure fabrication facility, they were running multi-pass fillet welds on beam-to-column connections. Before our system, their process was:

• Weld all 4-5 passes continuously
• Distortion required rework on approximately 30% of parts
• Scrap rate was around 5% due to excessive distortion
• Average time per connection (including rework) was about 25 minutes

After implementing our 3D vision multi-pass system with intermittent welding:

• Weld 2 passes, move part, weld 2 more passes
• Distortion rework dropped to less than 5% of parts
• Scrap rate dropped to under 1%
• Average time per connection was about 18 minutes (less time overall due to reduced rework)

The financial impact was significant. They were processing about 200 connections per day. The reduction in rework labor alone saved them approximately 30 hours per day. The reduction in scrap saved tens of thousands of dollars per month in material costs. And the increased throughput meant they could take on additional work without adding another welding cell.

Another case - automotive parts supplier doing multi-pass welds on thick brackets. Their challenge was that parts came back from heat treatment between weld passes. Heat treatment caused some dimensional change. Their old system required manual re-teaching after heat treatment. That was costing them 15-20 minutes per part in setup time. With our 3D vision system, parts came back from heat treatment, got scanned, new paths were automatically generated, welding resumed. Setup time dropped to under 2 minutes - just the time for the scan and path generation.

Now, I want to address something that comes up in every sales conversation. "Isn't 3D vision scanning slower than line laser tracking?" Yes. Scanning time is typically 10-20 seconds compared to near-instantaneous line laser. But here's what matters: total cycle time and overall productivity. If that 15-second scan means you can automatically adapt to part variation, eliminate manual re-teaching, reduce rework, and enable flexible production scheduling, the scan time becomes irrelevant. You're optimizing for the wrong metric if you're only looking at sensing speed.

The real question is: what does the technology enable you to do? Can you run lights-out production with part variation? Can you schedule work flexibly without dedicating cells to single parts? Can you minimize distortion by controlling thermal input? Can you eliminate scrap and rework? These are the questions that actually matter to your bottom line.

Technical Advantages of Surface-Based Scanning

Here's a deeper dive into why 3D vision technology works better for this application. The system is creating what we call a "dense point cloud" - typically millions of data points representing the surface of the part. Each point has X, Y, and Z coordinates in three-dimensional space. The resolution and accuracy of this point cloud depends on the scanner specifications, but we're typically working with 0.1mm resolution and 0.05mm accuracy.

Compare this to line laser, which is capturing maybe a few thousand points along a single line. Yes, it updates rapidly as the line is swept across the part, but fundamentally you're working with much less data. More importantly, that data is inherently one-dimensional. You're seeing the profile along the laser line, but you don't have complete surface information around that area.

When the software analyzes the 3D point cloud to identify the weld joint, it's looking at surface intersections. For a groove weld, it finds where two angled surfaces meet at the bottom of the groove. For a fillet weld, it finds where two perpendicular surfaces meet at an inside corner. This surface intersection is geometric truth - it's not sensitive to local irregularities or noise in the data because the software is fitting surfaces to large numbers of points.

This is fundamentally more robust than looking for specific feature signatures. A line laser might be programmed to look for "a sharp dip in the profile indicating a groove." But what happens when that sharp dip is partially filled with weld metal? The signature changes. The software doesn't know what to do. But surface-based analysis doesn't care. It says "I see two surfaces here, they intersect at this location and angle, therefore the weld joint is here." Whether those surfaces are bare metal or partially covered with weld metal, the intersection point is still clearly defined.

Support for Adjusting Torch Angle, Current, Voltage, Speed, Weave, and Other Process Parameters for Real Production Applications?

Now we're getting to the part that really separates systems that work in real production from systems that are just impressive in a demo booth. Because here's the truth: every weld is different. Different materials, different thicknesses, different joint configurations, different positions, different quality requirements. A system that can only run with one fixed set of parameters isn't a production solution. It's a science project.

**Our system allows full adjustment of welding parameters including torch angle, current, voltage, travel speed, weave amplitude, weave frequency, dwell time, and more. These parameters can be adjusted on-the-fly and saved into process libraries for different applications. This isn't just about flexibility. It's about enabling the wel
