Manual boom welding eats time, strength, and skill. One wrong bead can bring rework. I built this system to make heavy welding more certain.

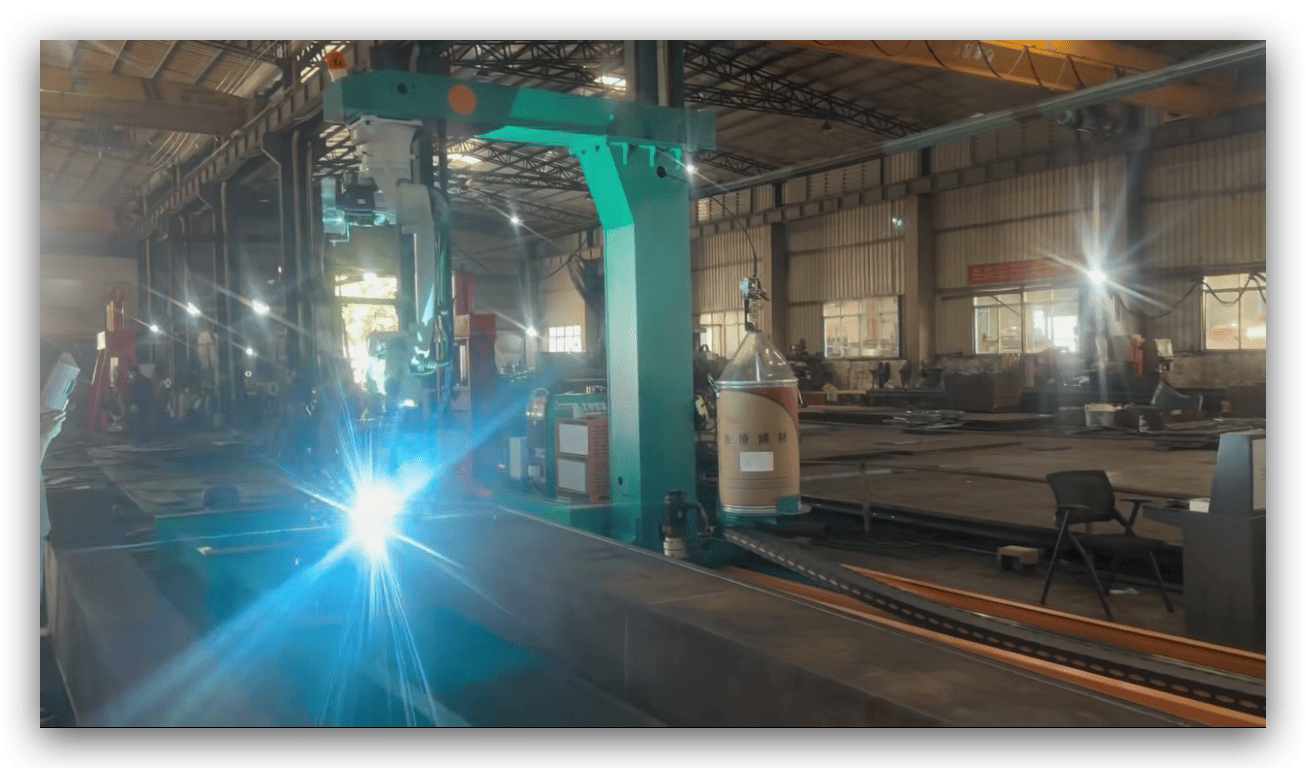

I use an intelligent robotic welding station with 3D vision to scan the excavator boom, rebuild the weld position, generate the welding path, and complete welding without manual teaching or traditional robot programming.
I have stood beside many excavator booms in different factories. I have seen the same problem repeat itself. The workpiece is large. The weld seam is long. The part shape is not always the same. The fitter may leave a small gap difference. The operator may place the boom a little to the left. The drawing may be clear, yet the real part may still change.
I do not see this as a small workshop problem. I see it as the main reason many factories hesitate to use robot welding for large steel structures. A robot can weld fast. A robot can repeat well. But a robot also needs to know where the seam is. In the past, this meant programming, teaching, touching points, checking angles, and adjusting again. That process was slow. It also asked too much from the operator.
This is why I focus on reverse modeling and photo-based welding. I want the robot to see the workpiece first. I want the system to understand the actual part, not only the drawing. I want the weld path to come from the real seam position. When I talk about a welding robot without manual teaching, I am not talking about a dream. I am talking about a practical way to weld heavy parts like excavator booms, frames, beams, and box structures.
The excavator boom is a good example. It is long. It has many plate joints. It has groove welds, fillet welds, multi-pass welds, and thick steel sections. It may need strong penetration. It may also need stable bead shape. If the robot can handle this kind of part, it can handle many other mechanical structural parts.
How Do I Use Photos to Identify the Workpiece and Generate the Weld Path Automatically?
Large parts are hard to locate by hand. Small position errors become big welding errors. I use vision so the robot can see before it moves.
The system takes photos or scans of the boom, identifies weld seam features, builds the actual workpiece model, and creates the robot welding path automatically based on real seam position and welding rules.
When I say “photo recognition,” I do not mean a simple camera picture. I mean a 3D vision system that collects real shape data from the workpiece. The camera or scanner reads the boom surface, plate edge, groove line, and joint area. Then the software compares this real data with the process logic. The robot does not guess. It follows the calculated seam.

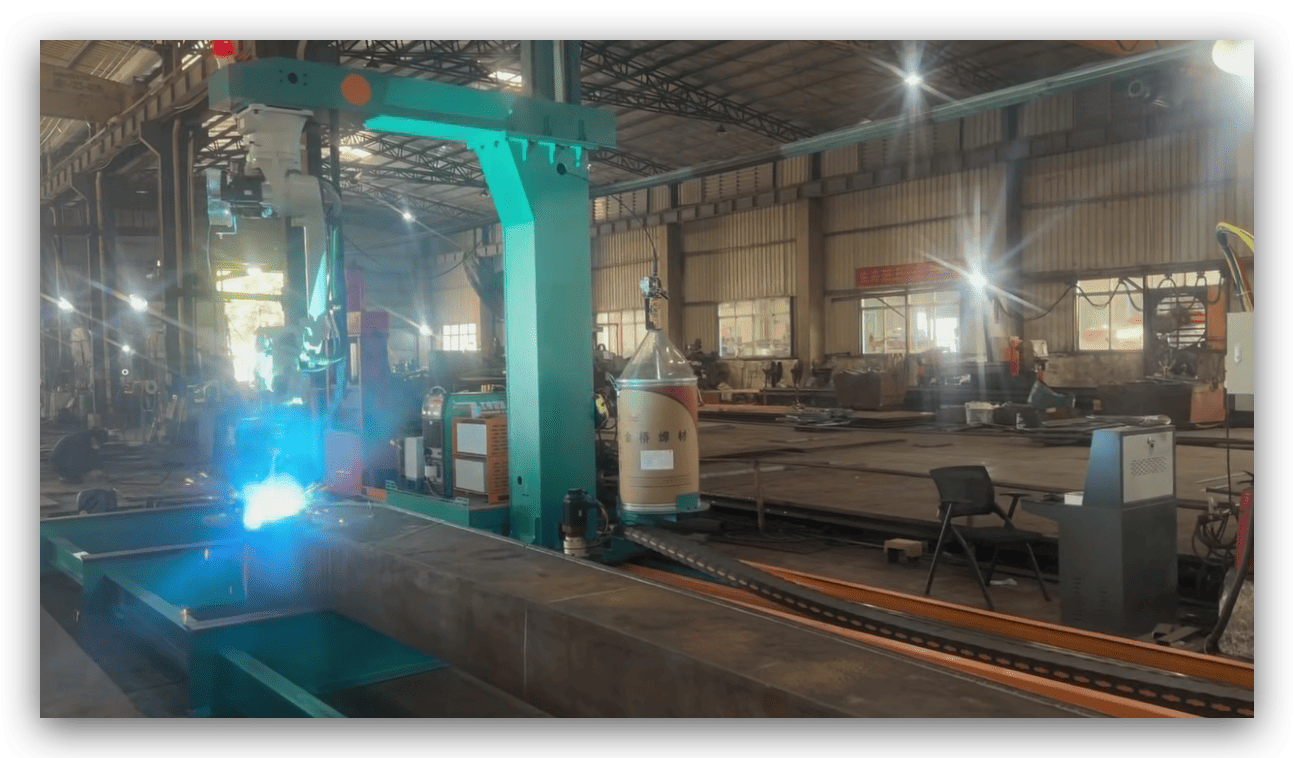

This is the base of 3D vision robotic welding without teaching. The operator places the excavator boom on the fixture or worktable. The system scans the key welding areas. The software finds the weld seam. Then the robot receives the welding path. I use this method because heavy structural parts are not always perfect. A cut plate may have small error. A tack weld may move the joint. A long boom may have slight deformation after assembly. A traditional taught path may miss the seam. A vision-based path can correct it before welding.
What Happens from Scanning to Welding?
| Step | What I Do | What the System Gives Me |
|---|---|---|
| Workpiece loading | I place the excavator boom in the welding station | A real part position inside the robot workspace |
| 3D scanning | I scan weld areas with a vision device | Point cloud or surface data |
| Feature recognition | I let software find edges, grooves, and seam lines | Actual weld seam position |
| Reverse modeling | I rebuild the needed weld geometry from the real part | A working model for welding |
| Path generation | I apply weld rules and torch angle rules | Robot path, speed, angle, and sequence |
| Welding execution | I start automatic welding | Stable welding based on the real seam |
I care about this chain because each step reduces human error. I do not want an operator to spend hours teaching points on a large boom. I want the operator to load, scan, check, and start. This makes the station close to an automatic weld path generation robot, not only a normal robot arm.
Why Reverse Modeling Matters for Excavator Boom Welding
An excavator boom looks simple from far away. It is not simple when I weld it. It has inner stiffeners, side plates, curved areas, long seams, and thick joints. Many welds must carry heavy load. Some welds need multi-layer welding. Some welds need clean torch access. A fixed offline program can work when every boom is exactly the same. But many factories produce different models, small batches, and changing parts.
Reverse modeling solves this problem in a more grounded way. I let the robot build the welding reference from the real boom. The system does not depend only on ideal CAD data. It uses the actual seam position. That matters when the factory produces several boom types in one week.
I once visited a factory that welded booms by hand during the day and repaired weld defects at night. The welders were experienced. The problem was not only skill. The problem was fatigue and part variation. Long welds require steady hands. Thick steel requires heat control. Repeated seams require patience. I saw that a robot could help, but only if it could adapt. This is the reason I kept working on vision, reverse modeling, and path generation.
What Kind of Weld Data Can I Set?
| Welding Item | Typical Setting Logic | Why It Matters |
|---|---|---|
| Weld type | Fillet weld, groove weld, butt weld | The robot must choose the right path center |
| Torch angle | Based on joint type and access space | Good angle helps penetration and bead shape |
| Welding speed | Based on thickness, wire, and current | Speed affects heat input and fusion |
| Weaving | Set by weld size and gap | Weaving helps fill wider seams |
| Multi-pass sequence | Based on groove size and strength demand | Thick steel may need layered welding |
| Start and end point | Based on seam feature and run-on needs | Good start and end reduce defects |
I do not use vision only to find a point. I use it to help the whole welding process. The goal is not to move the robot blindly from A to B. The goal is to weld the seam with the right torch angle, right speed, right layer plan, and right start position. This is where the intelligent robotic welding station becomes more than a mechanical arm.
How Can I Weld Without Programming or Manual Teaching?
Traditional robot welding scares many workshops. They fear programming, teaching, and robot language. I remove that wall so production people can use automation.

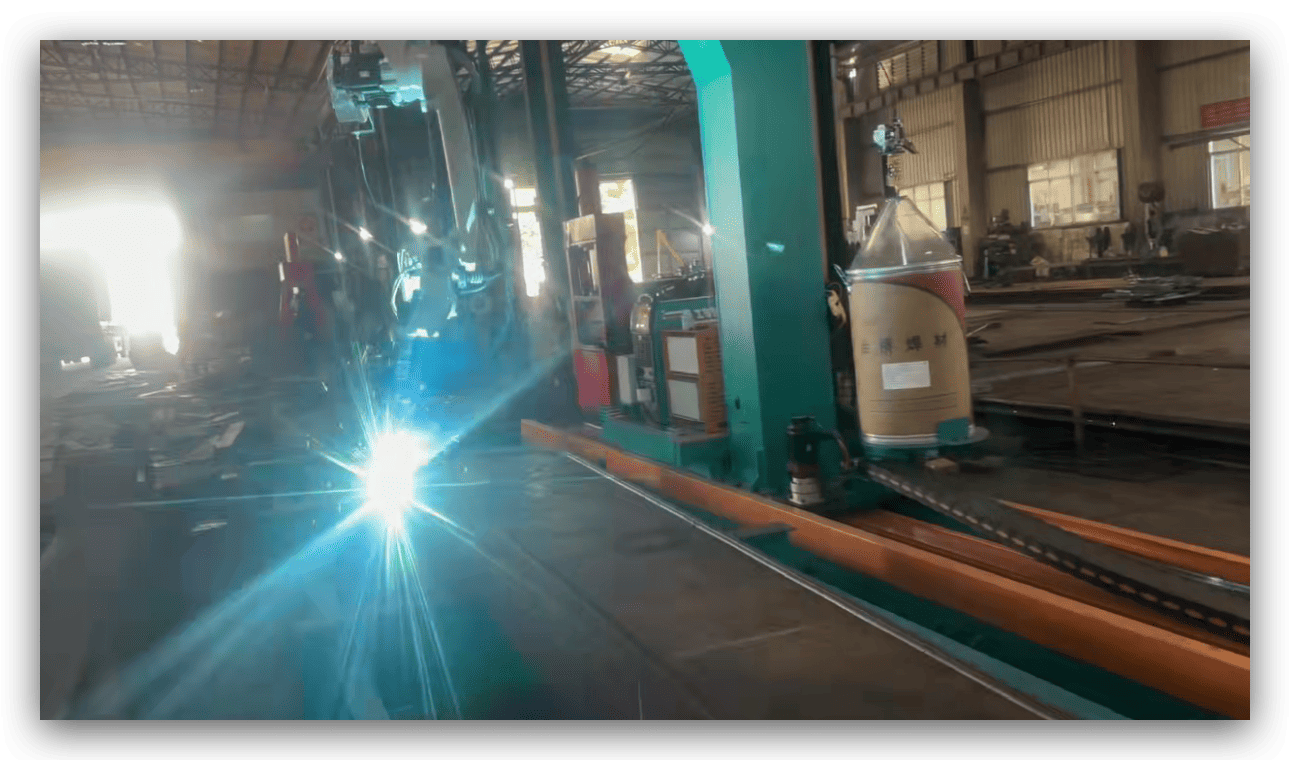

A robotic welding system without programming uses 3D scanning, seam recognition, welding process templates, and automatic path planning, so the operator does not need to manually teach every robot point.
I have heard the same sentence many times: “We want robot welding, but we do not have robot programmers.” This is a real problem. A robot expert is not easy to hire. A welder may understand weld quality, but may not know robot coordinates. A robot programmer may understand motion, but may not understand penetration, groove fill, or welding sequence. When both skills are needed in one person, automation becomes expensive.
This is why I build the system around simple operation. I want the operator to work with welding logic, not robot code. The operator selects the workpiece type, scans the seam, checks the generated path, and starts welding. The system handles robot movement. This is what I mean by welding robot without manual teaching.
What Does “No Programming” Mean in Real Production?
| Old Robot Welding Method | My Programming-Free Method |
|---|---|
| Teach point by point with a pendant | Scan the real seam with 3D vision |
| Adjust path after trial welding | Generate path based on actual seam |
| Need a skilled robot programmer | Need an operator trained on process steps |
| Hard to change product model | Easier for high-mix production |
| Long setup time for large parts | Shorter setup after process templates are ready |
| Path may not match part deformation | Path updates from real workpiece data |
A robotic welding system without programming does not mean there is no process knowledge. It means the system hides robot code from the operator. I still set welding parameters. I still define rules. I still prepare torch angle logic, clearance limits, weld types, and process templates. The difference is that the operator does not need to write or teach the full robot path by hand.
For excavator boom welding, this is very important. A boom may have dozens of welds. If an operator teaches each weld point one by one, the setup time becomes too long. If the boom model changes, the work starts again. This is why many factories gave up on robot welding in the past. They saw that robot speed was good, but preparation time was painful.
I build the station so the robot can follow the real seam after scanning. The automatic weld path generation robot function turns the scan data into movement. The operator can review the path on the screen. The operator can adjust process parameters when needed. Then the station welds.
How I Make the Operation Simple for the Workshop
I do not believe good equipment should make people feel small. I believe good equipment should make people stronger. A welder already knows how a good weld should look. A production manager already knows where the bottleneck is. My job is to give them a machine that fits that knowledge.
Here is the simple working flow I usually design:
| Stage | Operator Action | Main Skill Needed |
|---|---|---|
| Load | Place the excavator boom on the fixture | Basic lifting and positioning |
| Select | Choose part type or weld task | Production knowledge |
| Scan | Start 3D vision scanning | Basic system operation |
| Check | Review seam and path result | Welding judgment |
| Weld | Start automatic welding | Safety and quality control |
| Inspect | Check bead shape and key weld areas | Welding inspection experience |
This flow makes the robot closer to the workshop. It does not ask the operator to become a software engineer. It respects the operator’s welding experience. It turns that experience into rules inside the system.
Where the Human Still Matters
I do not remove the human from welding. I remove the most repeated and tiring parts. The human still decides weld quality standards, fixture method, groove preparation, shielding gas, wire type, and final acceptance. The system gives steady movement and repeatable execution. The human gives judgment.
This balance is important. Some people think automation means the robot does everything. I do not sell that idea. I sell a stronger way of working. The operator can focus on the weld result. The robot can handle long seams, stable travel speed, steady angle, and repeat work.
When I build a programming free robotic welding for steel structures project, I always ask about real production first. I ask about part size, steel thickness, weld type, annual quantity, product variation, crane loading method, and current welding problems. I do not start with the robot brand. I start with the workpiece. The workpiece is the king. The robot is the tool.
Why This Helps High-Mix, Low-Volume Production
Many large steel structure factories do not make one product for ten years. They make different beams, booms, frames, tanks, and welded assemblies. Some orders are small. Some are urgent. Some drawings change. This is the exact place where old robot welding struggles.
A robot welding system for high mix low volume production must reduce setup time. It must adapt to different parts. It must not depend on long manual teaching. It must use real workpiece data. That is why 3D vision, reverse modeling, and automatic path generation are so valuable.
I have seen small and medium factories reject automation because they believed robots only fit mass production. That was true for many old systems. It is not the full truth now. If the system can scan, identify, and generate paths, then robot welding can enter more flexible production. This does not mean every weld can be automated on day one. It means more welds can be moved from manual work to controlled robot work step by step.
Why Is This System Suitable for Large Mechanical Steel Structures?
Large steel structures bring heavy loads, long welds, and part variation. I use intelligent robot welding to make quality steadier and production easier to manage.
This system is suitable for excavator booms, frames, beams, tanks, and heavy welded parts because it combines 3D vision, adaptive path planning, stable robot motion, and welding process control.
I often describe an excavator boom as a test of truth. It tells me if a welding system is only a show machine or a real production machine. A small demo part on a table is easy. A large boom is different. The welds are long. The access space can be narrow. The steel thickness can demand high heat input. The part may bend after tack welding. The robot must reach far. The fixture must hold strong. The software must understand the seam. The welding source must support stable arc performance.

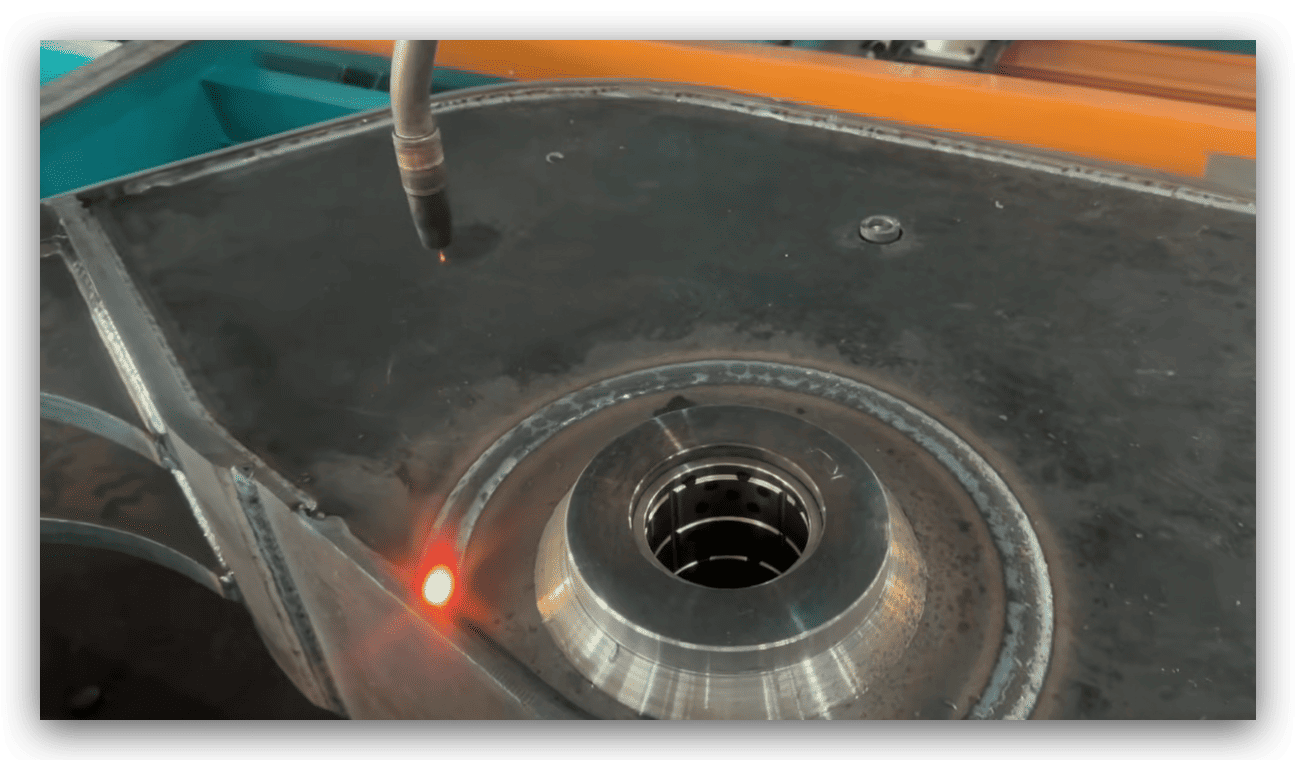

This is why a robotic welding solution for large steel structures must be designed as a whole station. I do not only sell a robot arm. I design around the workpiece, process, fixture, vision, robot reach, power source, safety, and training.
What Makes Large Structure Welding Different?
| Challenge | Why It Happens | How I Handle It |
|---|---|---|
| Long weld seams | Booms and frames need continuous strength | Robot keeps steady speed and angle |
| Part size variation | Cutting, bending, and assembly create error | 3D vision scans real part position |
| Thick plate welding | Heavy machinery needs strong joints | I set power, wire, layers, and groove logic |
| Hard robot access | Some seams are inside corners or near ribs | I plan torch angle and robot posture |
| High labor demand | Manual welders get tired on long seams | Robot handles repeated heavy welding |
| Small batch production | Product models change often | Automatic path generation reduces setup time |
I care most about weld quality and repeatability. A robot can keep the same travel speed for a long weld. A human welder may slow down after fatigue. A robot can keep the same torch angle. A human hand may drift after many hours. A robot can repeat the same weaving pattern. A human welder may change motion under pressure. These differences become important when the weld is long and structural.
How Efficiency Improves in a Real Workshop
I never promise that a robot will magically fix every production problem. I do say that a well-designed robot station can change the rhythm of the workshop. Manual welding often depends on the number of skilled welders. If two skilled welders leave, production suffers. If a large order comes, overtime rises. If weld quality changes between shifts, inspection pressure grows.
With an intelligent robotic welding station, I can move repeated long welds to the robot. The human team can handle fitting, inspection, special positions, and process control. This gives the workshop a more stable base.
| Production Area | Manual Welding Situation | Intelligent Robot Welding Situation |
|---|---|---|
| Setup | Depends on welder and fixture | Depends on scanning and task selection |
| Welding speed | Changes by person and fatigue | More stable and repeatable |
| Weld appearance | May vary between shifts | More consistent bead shape |
| Labor cost | Needs many skilled welders | Uses fewer operators for repeated welds |
| Quality control | More rework risk | Easier to standardize |
| Delivery time | Sensitive to labor shortage | Easier to plan after process is mature |
I once watched a team weld a large structural part manually. The first welds looked clean. After several hours, the bead shape changed. The welders were still skilled, but their bodies were tired. Heavy welding is not gentle work. It uses heat, noise, smoke, and strength. A robot does not feel tired. This is why I see automation as a practical answer, not a fancy upgrade.
Why Stability Is More Valuable Than Speed Alone
Many people ask first about speed. I understand this question. Faster welding means higher output. But I do not treat speed as the only target. I care about stable quality. A fast weld with poor fusion is not progress. A fast station with long setup time is not efficient. A fast robot that stops often is not a production tool.
For excavator boom welding, I look at the full result:
| Target | My Practical Meaning |
|---|---|
| Good penetration | The weld must meet strength needs |
| Stable bead shape | The weld should be easy to inspect |
| Less rework | The station should reduce repair welding |
| Shorter setup | The system should avoid long teaching time |
| Safer work | The operator should stay away from heat and arc |
| Better planning | Production should depend less on rare labor skills |
This is also why I choose a programming-free and vision-guided approach. If the robot needs too much manual teaching, the efficiency gain may disappear. If the robot cannot adapt to the real seam, weld quality may suffer. If the operator cannot use the system, the machine may stand idle. I design against these risks.
What Equipment Is Usually Inside My Intelligent Welding Station?
A complete station for excavator boom welding may include the robot, welding power source, wire feeder, torch cleaning unit, safety fence, positioner or fixture, 3D vision scanner, control cabinet, software, and process package. The exact design depends on part size and production target.
| Module | Main Function |
|---|---|
| Industrial robot | Moves the welding torch along the planned path |
| 3D vision system | Scans the boom and finds seam position |
| Welding power source | Provides stable welding current and voltage |
| Wire feeding system | Feeds welding wire at controlled speed |
| Fixture or positioner | Holds the boom safely and repeatably |
| Software platform | Handles recognition, reverse modeling, and path planning |
| Safety system | Protects operators from robot movement and welding arc |
| Training package | Helps the customer operate and maintain the station |
I can use different robot brands based on project needs. Some customers prefer KUKA. Some prefer SIASUN. Some focus on price. Some focus on local service. I choose the robot only after I understand the workpiece. I also consider payload, reach, accuracy, and working area.
For heavy structural welding, reach matters. The robot must access long seams without dangerous posture. The fixture must keep the boom stable. The vision device must scan the needed area clearly. The welding source must match the plate thickness and process. The software must output a path that the robot can actually run. A strong station is built from all these details.
How I Match the System to the Customer’s Workpiece
I do not like one-size-fits-all answers. A metal fabrication workshop may need flexibility. A steel structure manufacturer may need long weld coverage. A pipe and tank producer may need rotary movement. An automotive component factory may need speed and repeatability. A heavy machinery factory may need penetration, strength, and multi-pass welding.
For excavator boom welding, I usually ask these questions:
| Question | Why I Ask |
|---|---|
| What steel grade do you weld? | Material affects parameters and process |
| What thickness range do you use? | Thickness affects power and layer plan |
| What weld types are required? | Joint form affects path and torch angle |
| How many boom models do you produce? | Model variety affects software workflow |
| How accurate is your assembly? | Fit-up affects vision and welding plan |
| Do you need full penetration? | This affects groove design and welding power |
| How many shifts do you run? | This affects ROI calculation |
| What is your current rework rate? | This shows the real value of automation |
These questions help me design the right robotic welding solution for large steel structures. The customer may want a simple answer, but the workpiece gives the real answer. I have learned this through many projects. A good station starts before the robot arrives. It starts from honest process review.
Why ROI Comes from More Than Labor Saving
Many customers first calculate how many welders the robot can replace. I understand this. Labor cost matters. Skilled welders are hard to find in many countries. But I also ask customers to look at the wider return.
ROI can come from:
| ROI Source | Practical Value |
|---|---|
| Less manual teaching | Faster product changeover |
| Less rework | Lower repair cost and better delivery |
| More stable quality | Easier inspection and customer trust |
| Higher arc-on time | More welding time per shift |
| Lower skill barrier | Easier operator training |
| Safer production | Less exposure to heat, smoke, and arc |
| Better capacity planning | More predictable output |
If a factory produces many different parts, a normal robot may not give good ROI because programming time is high. A robot welding system for high mix low volume production must shorten that setup stage. This is where vision and automatic path planning create value.
I also believe after-sales support is part of ROI. A machine that cannot be supported is a risk. I usually provide remote support, on-site installation, training, and process adjustment. I want the customer’s team to gain confidence. A robot station should not be a black box. It should become part of the factory’s daily language.
What I See as the Future of Heavy Welding
I believe heavy welding will become more intelligent, but it will not lose its practical heart. Steel still needs good fit-up. Welding still needs clean joints. Operators still need judgment. But the old way of teaching every robot point by hand will become less common, especially for large parts.
The future is clear to me. The robot will see more. The software will understand more. The operator will do less repeated teaching. The system will create paths from real workpieces. The welding process will be stored, reused, and improved. The factory will move from person-dependent welding to process-dependent welding.
This is why I keep using words like welding robot without manual teaching, robotic welding system without programming, and 3D vision robotic welding without teaching. These are not only keywords to me. They describe the direction of the workshop. They describe a shift from muscle and memory to vision and process.
For excavator boom welding, this shift is already useful. The system can scan the boom. It can rebuild the weld features. It can generate the path. It can guide the robot to weld long seams with stable movement. It can help factories that build large machines, steel frames, structural beams, and similar products. It can serve both large plants and growing workshops that want to upgrade.
Conclusion
I use intelligent vision, reverse modeling, and path generation to make excavator boom welding simpler, steadier, and easier to automate without programming or manual teaching.
