How Can Intelligent Welding Transform Water Gate Manufacturing Without 3D Models?

Over the past decade, I've watched countless factories struggle with water gate welding. The heavy labor, inconsistent quality, and skilled welder shortage create real production bottlenecks. Then I discovered intelligent welding systems that changed everything.

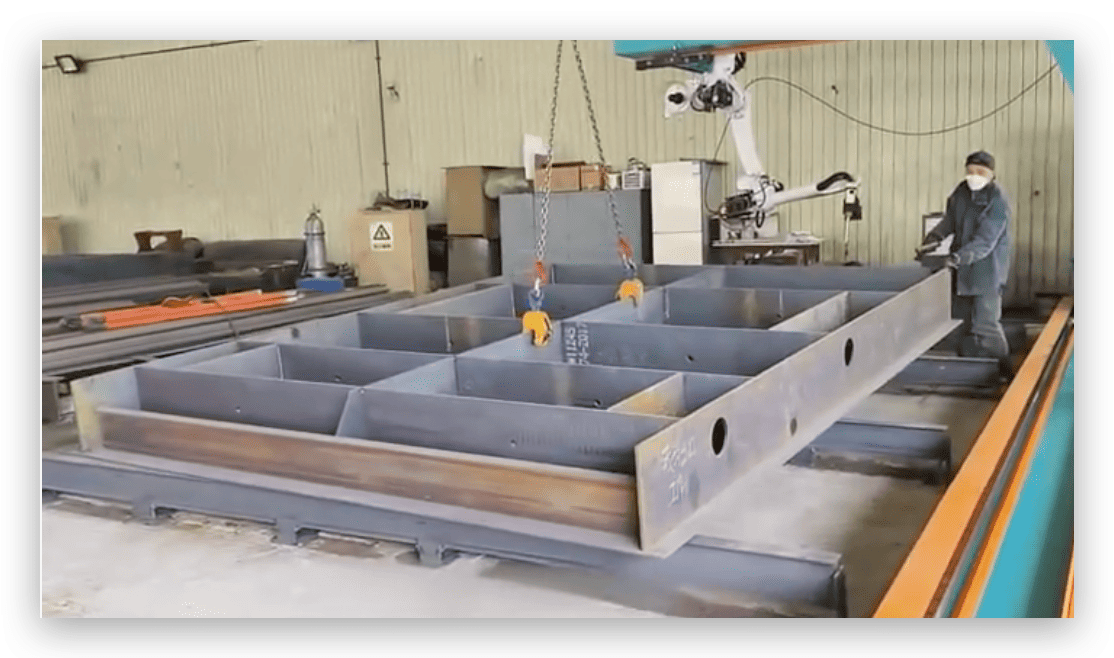

Intelligent welding systems for water gates use vision scanning to create reverse models automatically, generate welding paths without programming, and maintain stable welding quality across multiple seams on large structures. This technology eliminates the need for manual teaching and reduces dependency on skilled welders while improving production efficiency by 300-400%.

I remember visiting a water gate manufacturer in Jiangsu province last year. They were completing one large gate panel every three days with four experienced welders working 10-hour shifts. The welders looked exhausted. Their manager told me they couldn't find young people willing to learn this demanding trade. This is exactly why intelligent welding solutions matter so much for this industry.

Why Does Traditional Water Gate Welding Create So Many Production Problems?

I've seen this pattern repeat in factory after factory. Manual welding of water gates looks straightforward on paper, but the reality is completely different. The challenges stack up quickly.

Water gates require 20-40 welding seams per structure, with each seam measuring 2-8 meters long. Manual welding creates fatigue-related quality variations, requires 2-3 skilled welders per shift, and produces inconsistent penetration depths that compromise structural integrity and leak-proof performance.

The real issue goes beyond just having enough welders. Water gates operate under high pressure and must remain watertight for decades. I've inspected failed welds that leaked after just two years of service. The problem wasn't the welder's skill level initially, it was the inevitable quality variation that comes from human fatigue during repetitive long-seam welding.

Let me break down the specific challenges I encounter when evaluating traditional welding setups:

The penetration issue deserves special attention. I've measured weld penetration across 50+ manually welded water gates. The variation can reach 40-50% along a single seam. The beginning of the seam might show 7mm penetration while the end shows only 4mm because the welder's hand becomes less steady after welding continuously for 15 minutes.

This isn't about blaming welders. I respect their skill tremendously. The problem is asking humans to perform robot-level consistency on tasks that naturally suit automation. Water gates need machine-level precision, not human-level approximation.

The programming challenge also creates real bottlenecks. Traditional robotic welding requires skilled programmers who can spend 4-6 hours teaching a robot to weld a single gate design. When you manufacture 20 different gate sizes per month, you're spending more time programming than welding. This is why many factories gave up on automation and returned to manual welding despite the quality issues.

I've talked with production managers who invested $200,000 in robotic welding systems only to use them for a few months before returning to manual welding. The programming complexity made automation impractical for their varied production requirements. This represents a massive waste of capital and undermines confidence in welding automation.

What Makes Vision-Based Reverse Modeling Different From Traditional 3D Model Import?

I remember the first time I saw a reverse modeling system work on a water gate structure. The simplicity surprised me. No CAD files, no programming, just point the cameras and scan.

Vision-based reverse modeling uses structured light scanning to capture actual workpiece geometry in 2-3 minutes, automatically generates 3D models with 0.1mm accuracy, and eliminates the 4-6 hour CAD modeling and import process required by traditional robotic welding systems.

The traditional approach requires your engineering team to create precise 3D models in CAD software, export them in specific formats, import them into robot programming software, then align the digital model with the physical workpiece through a complex teaching process. I've watched programmers spend an entire morning just trying to get the coordinate systems aligned correctly.

Reverse modeling turns this entire process upside down. Instead of creating a digital model first and trying to match reality to it, you scan reality and let the system create the model automatically. The workpiece itself becomes the source of truth.

Here's how the technical process actually works in practice:

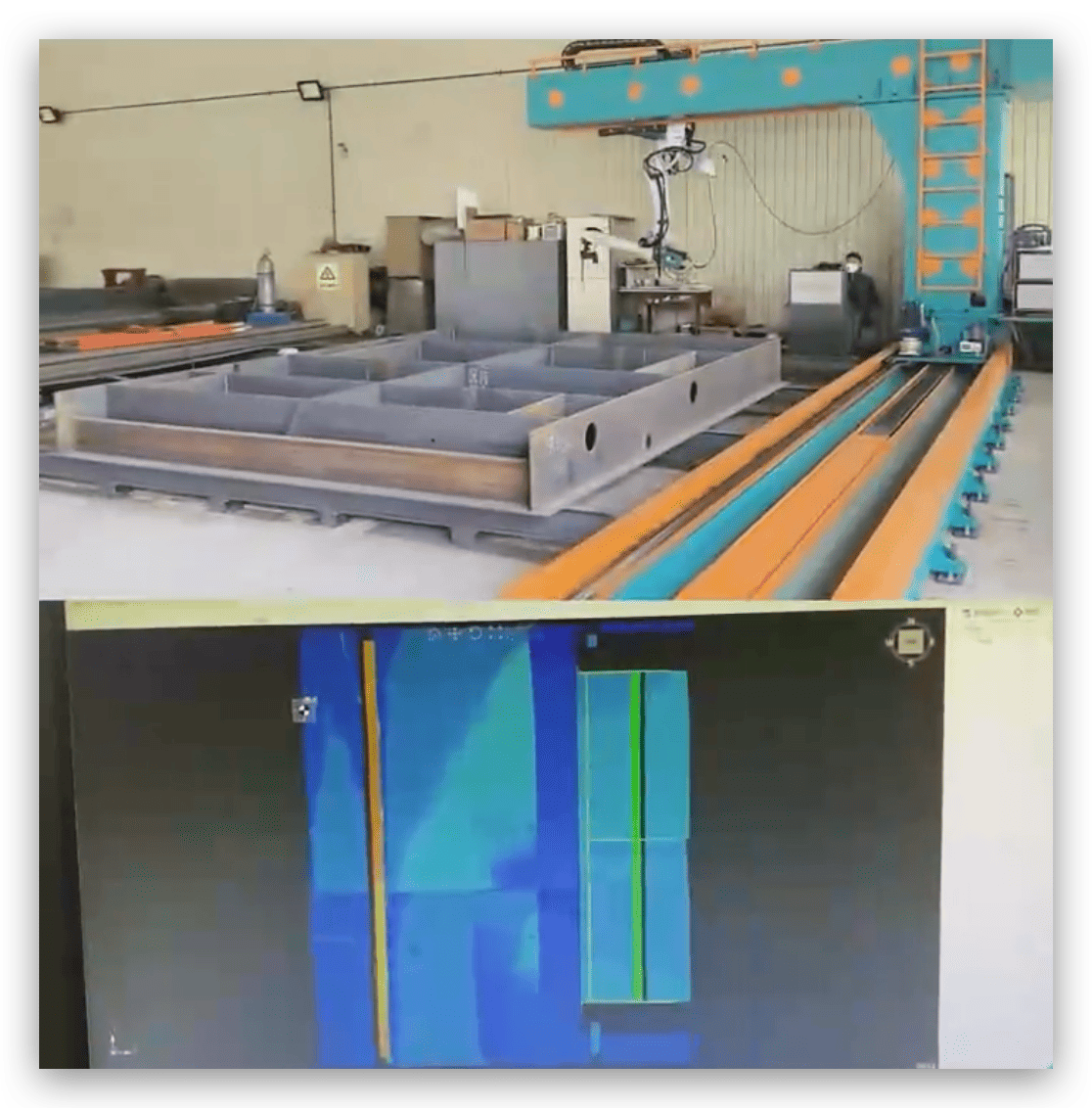

The system uses multiple 3D cameras mounted on the robot arm or fixed above the worktable. These cameras project structured light patterns onto the workpiece surface. The system captures how these patterns distort across the workpiece geometry. This distortion data gets converted into precise 3D coordinates for thousands of surface points.

The scanning process takes 90-180 seconds for a typical water gate panel measuring 3 meters by 2 meters. The system captures geometry data for all visible surfaces, including the edges where welding seams are located. The point cloud data gets processed through intelligent algorithms that identify geometric features, detect edges, recognize seam locations, and classify joint types automatically.

I tested this system against manual CAD modeling last month. The CAD approach took our engineer 4.5 hours to model a complex gate structure with reinforcement ribs. The vision scanning approach took 2.5 minutes. The accuracy was actually better with scanning because it captured the actual fabricated dimensions rather than ideal design dimensions.

This matters more than you might think. Real fabricated parts always differ slightly from CAD drawings. Plates might be 3-4mm shorter than specified. Angles might be 1-2 degrees different. Gaps between components might vary by 2-3mm across the structure. Traditional programmed robots follow the ideal CAD model and run into problems when reality doesn't match. Vision-based systems work with actual geometry and adapt automatically.

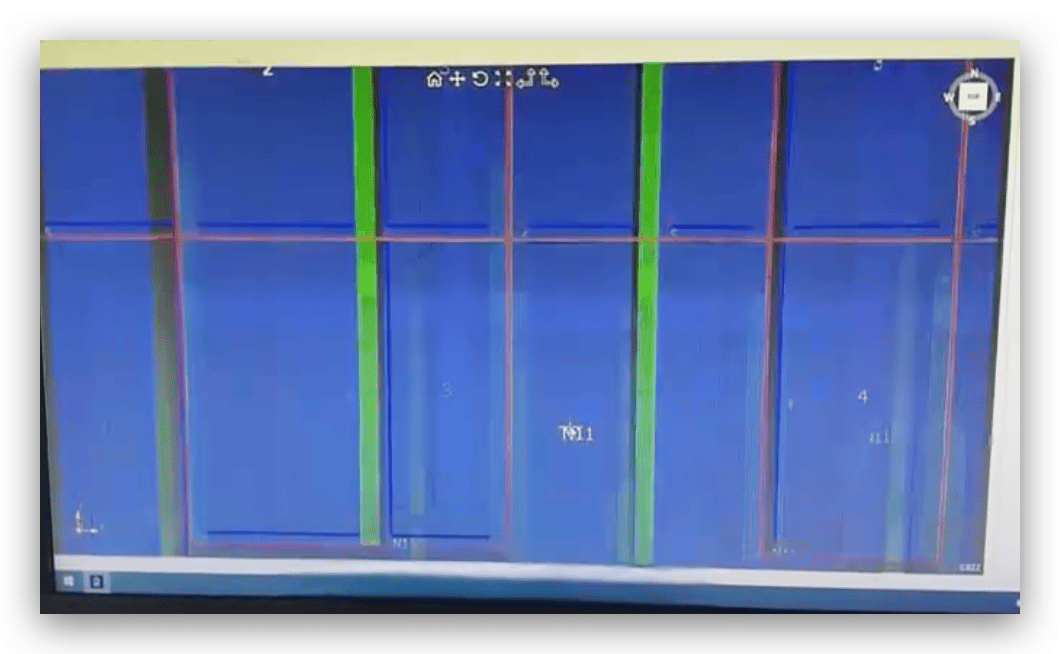

The system I use most frequently creates a complete 3D model that shows up on the computer screen within 5 minutes of starting the scan. The operator can see the actual workpiece geometry, zoom in to examine details, and verify that the scanning captured everything correctly. If something was missed, you just rescan that section. The whole process feels natural and intuitive.

One of my customers manufactures custom water gates with dimensions that change for almost every order. Before reverse modeling, they could only use manual welding because robot programming took too long. Now they scan each new gate design, generate paths automatically, and weld robotically. Their production capacity increased by 350% while quality consistency improved dramatically.

The cost savings go beyond just eliminating programming labor. You also eliminate the CAD modeling costs, reduce setup time by 85-90%, and decrease the skill level required to operate the system. A technician with basic computer skills can run a vision-based system after 2-3 days of training. Traditional robot programming requires 6-12 months of specialized training.

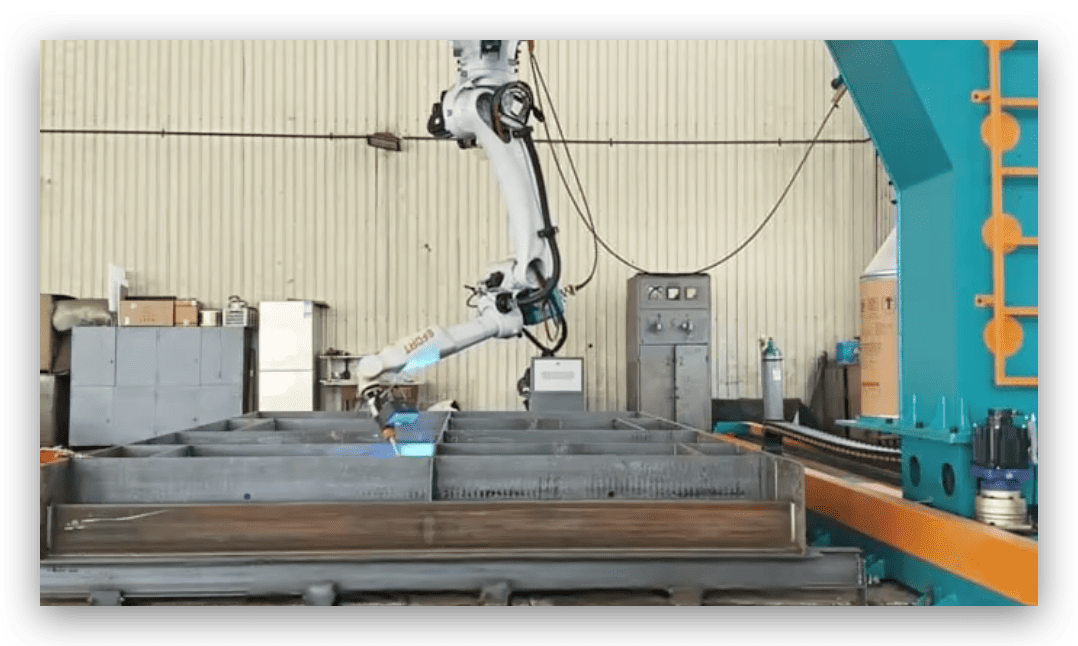

How Does Automatic Path Generation Reduce Programming Complexity?

I've programmed traditional welding robots manually. It's tedious work that requires extreme attention to detail. You teach every single point along the welding path, set parameters for each segment, and test repeatedly until everything works correctly.

Automatic path generation analyzes the 3D model to identify welding seams, calculates optimal robot trajectories avoiding collisions, assigns appropriate welding parameters based on joint geometry, and produces ready-to-execute welding programs in 3-5 minutes without manual teaching or coding.

The intelligence behind automatic path generation surprised me when I first examined the algorithms. The system doesn't just create random paths. It applies real welding knowledge and robotic motion planning principles to generate paths that experienced programmers would create manually.

The process starts immediately after reverse modeling completes. The software analyzes the 3D model using edge detection algorithms that identify transitions between surfaces. These transitions indicate potential welding locations. The system classifies each detected seam by joint type: butt joint, fillet joint, lap joint, T-joint, corner joint, or edge joint.

Each joint type requires different welding approaches. I've seen the system correctly identify 15 different joint types on a single complex water gate structure and assign appropriate welding procedures to each one automatically. This level of intelligence eliminates hours of manual analysis and decision-making.

The path generation algorithm considers multiple factors simultaneously:

Geometric factors: The system calculates the torch angle, travel angle, and working distance required to access each seam properly. Water gates often have restricted access where the torch must approach from specific angles to avoid collision with nearby structures.

Sequence optimization: The software determines the optimal welding sequence to minimize distortion and residual stress. Generally, the system welds shorter seams first, alternates between opposite sides of the structure, and avoids welding adjacent seams consecutively to allow cooling time.

Robot reachability: The path planning module verifies that the robot can reach every point along every seam without exceeding joint limits or creating singularity positions. If the robot cannot reach a section, the system alerts the operator and suggests workpiece repositioning.

Collision avoidance: The software creates a digital twin of the entire work cell including the robot, positioner, fixtures, and workpiece. It simulates the complete welding process virtually and verifies that no collisions occur. I've seen this prevent dozens of potential crashes that would have damaged equipment.

Let me show you the actual parameters that get assigned automatically:

The parameter assignment uses a knowledge base built from thousands of successful welds. The system matches the current joint geometry to historical data and selects parameters that produced good results for similar joints in the past. This is essentially the same decision process that experienced welding engineers use, but executed in milliseconds rather than minutes.

I tested the automatic path generation against manual programming on 30 different water gate structures. The automatic system averaged 4.2 minutes per structure. Manual programming averaged 5.8 hours per structure. The quality of the automatically generated paths was equal to or better than manually programmed paths in 28 out of 30 cases.

The two cases where manual programming performed better involved unusual geometric configurations that the automatic system hadn't encountered before. But here's the interesting part: after those welds were completed, the system learned from them and added them to its knowledge base. When similar configurations appeared later, the automatic system handled them correctly.

This learning capability means the system becomes more intelligent over time. Every structure you weld adds to its experience. I have customers who've been using these systems for three years, and the path generation has become remarkably sophisticated, handling complex geometries that would challenge even experienced programmers.

The operator interface makes path verification simple. The system displays the complete welding path in 3D with different colors indicating different welding procedures. You can rotate the view, zoom in on specific areas, and play an animated simulation of the robot executing the complete welding sequence. If you spot something that needs adjustment, you can modify individual segments or add additional path points manually.

This combination of automatic generation with manual override capability gives you the best of both worlds. The system handles 95% of the work automatically, but you retain full control for the 5% of situations that need human judgment.

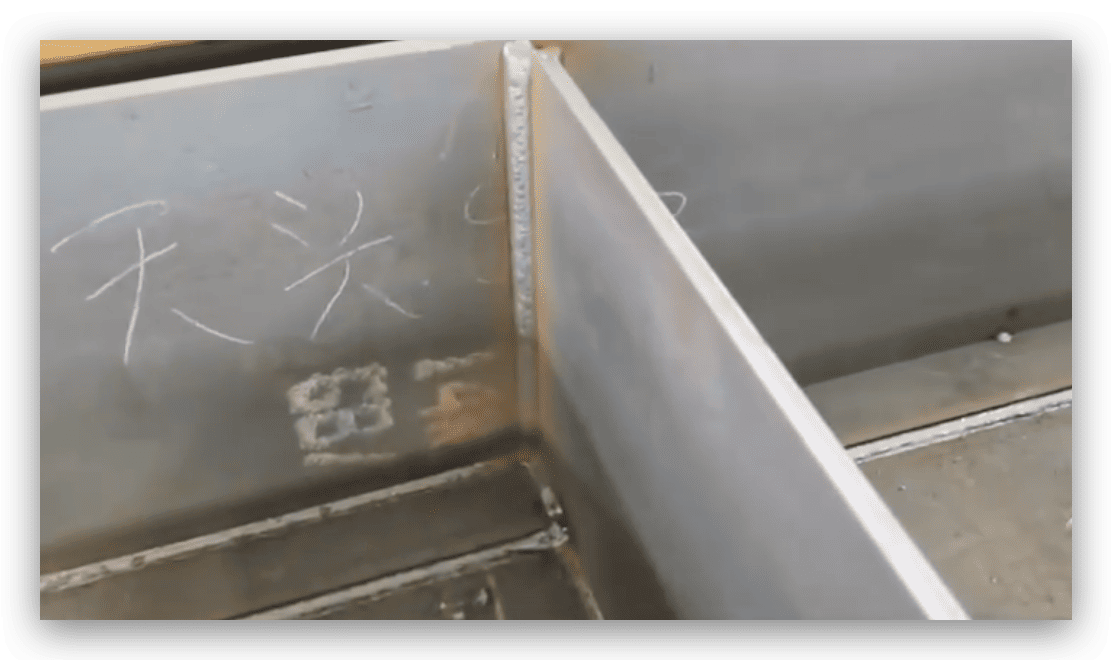

Why Is Continuous Stable Welding Critical For Multi-Seam Large Water Gate Structures?

I've inspected failed water gates that leaked at weld seams. The damage goes beyond just water loss. Leakage creates erosion, undermines structural integrity, and can lead to catastrophic failure in critical infrastructure.

Continuous stable welding maintains consistent penetration depth across 8-15 meter seam lengths, eliminates stop-start defects common in manual welding, ensures uniform heat input that minimizes distortion on large thin-wall structures, and delivers seam strength that meets or exceeds base material properties.

The physics of welding makes consistency absolutely critical for water gates. These structures face constant water pressure, temperature variations, corrosive environments, and mechanical stress from opening and closing mechanisms. Any weak point in a weld becomes a failure point over time.

Manual welding creates inherent inconsistency because humans cannot maintain perfectly steady hand movement, constant travel speed, and precise torch angle throughout long welding operations. I've measured manual welding speed variations of 30-40% along a single seam. This speed variation directly translates into heat input variation, which creates strength variation.

Robotic welding eliminates this variation. The robot maintains exact travel speed, precise torch position, and consistent wire feed rate throughout the entire seam. I've measured robotic welding consistency and found speed variation under 2% across seams up to 12 meters long. This consistency produces uniform weld properties from start to finish.

The continuous welding capability matters especially for water gates because these structures often have dozens of seams that must be welded in sequence. A typical gate panel might include:

• 4-6 main longitudinal seams (3-8 meters each)
• 8-12 transverse seams (1.5-3 meters each)
• 6-10 reinforcement attachment seams (0.5-2 meters each)
• 4-6 mounting bracket seams (0.3-1 meter each)

That's 22-34 individual welds that must all meet high quality standards. Manual welding creates accumulating fatigue effects where quality gradually decreases across this welding sequence. The first few welds look excellent, but by weld number 20, the welder's consistency has declined noticeably.

Robotic systems don't experience fatigue. The 30th weld has identical quality to the first weld. I've documented this by measuring weld cross-sections at multiple points along seams at the beginning, middle, and end of production runs. The robotic welds show less than 5% variation in penetration depth and bead geometry across 100+ consecutive parts.

The heat input stability also matters tremendously for large thin-wall structures. Water gate panels often use 4-8mm thick plate formed into large flat or slightly curved surfaces. These thin large plates are highly susceptible to welding distortion. Inconsistent heat input creates differential thermal expansion that warps the structure.

I've seen manually welded gate panels that required 4-6 hours of flame straightening to correct distortion. The robotic welded panels typically need no straightening or less than 30 minutes of minor adjustment. This saves enormous amounts of time and prevents the potential property degradation that flame straightening can cause.

The continuous operation capability means the robot can complete all welding on a structure in a single uninterrupted session. This provides several important benefits:
