6.3 Technical data
| Model | 500 |
|---|---|
| Power supply for motor | DC24V |
| Rated input current (A) | 3 |
| Range of welding current (A) | 60～500 |
| Duty cycle (%) | 100 |
| Wire diameter (mm) | Ф0.8, Ф1.0, Ф1.2, Ф1.4, Ф1.6 |
| Weight (Kg) | 10 |
| IP class | IP23X |
Table 6-3-1: Technical data

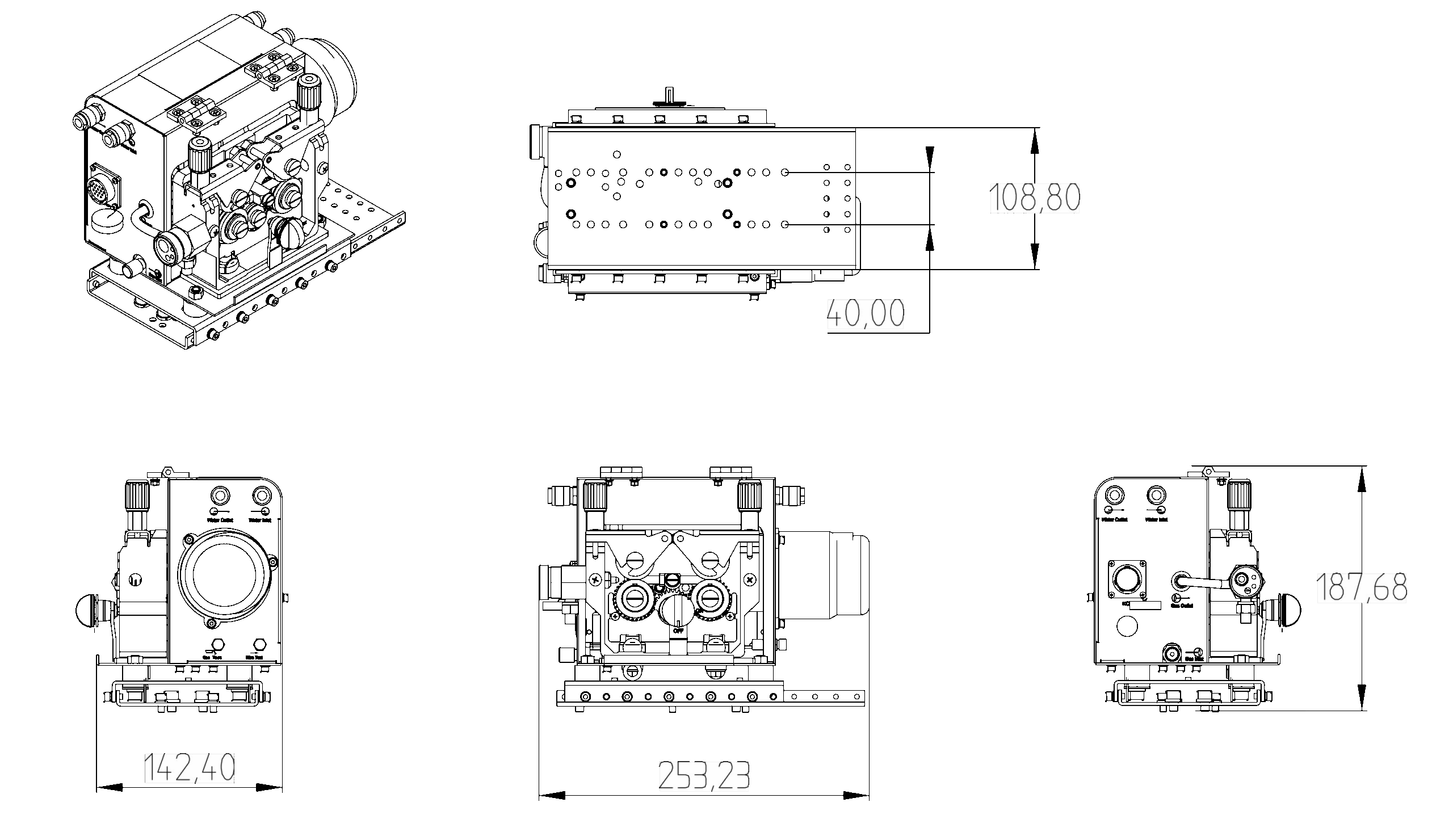

6.4 Dimensions
6.5 Spare Parts

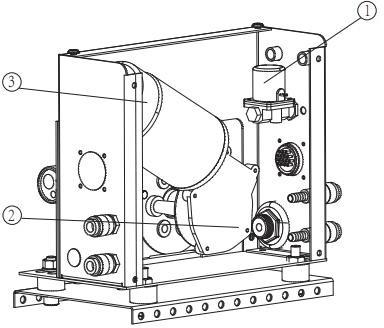

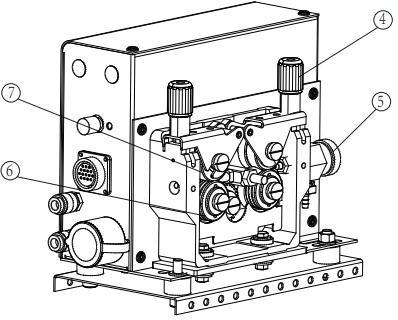

Fig 6-5-1 wirefeeder
| NO | Item | Stock No. | Qty |
|---|---|---|---|
| 1 | Valve | 752001-00020 | 1 |
| 2 | Wire feed motor | 321011-00020 | 1 |
| 3 | Grating | 328005-00065 | 1 |
| 4 | Pressure handle | 327047-00009 | 1 |
| 5 | Torch connector (EURO) | 322017-00002 | 1 |
| 6 | Drive roller V type Φ0.8–Φ1.0 | 327011-00042 | 2 |
| Drive roller V type Φ1.0–Φ1.2 | 327011-00044 | 2 | |
| Drive roller V type Φ1.2–Φ1.6 | 327011-00046 | 2 | |
| Drive roller U type Φ0.8–Φ1.0 | 327011-00043 | 4 | |
| Drive roller U type Φ1.0–Φ1.2 | 327011-00045 | 4 | |
| Drive roller U type Φ1.2–Φ1.6 | 327011-00047 | 4 | |
| 7 | Pressure roller (for hard wire) | 327023-00002 | 2 |
Table 6-5-1: Wirefeeder Part List
