Single Robot Welding Workstation

Which components suit a single robot welding station?

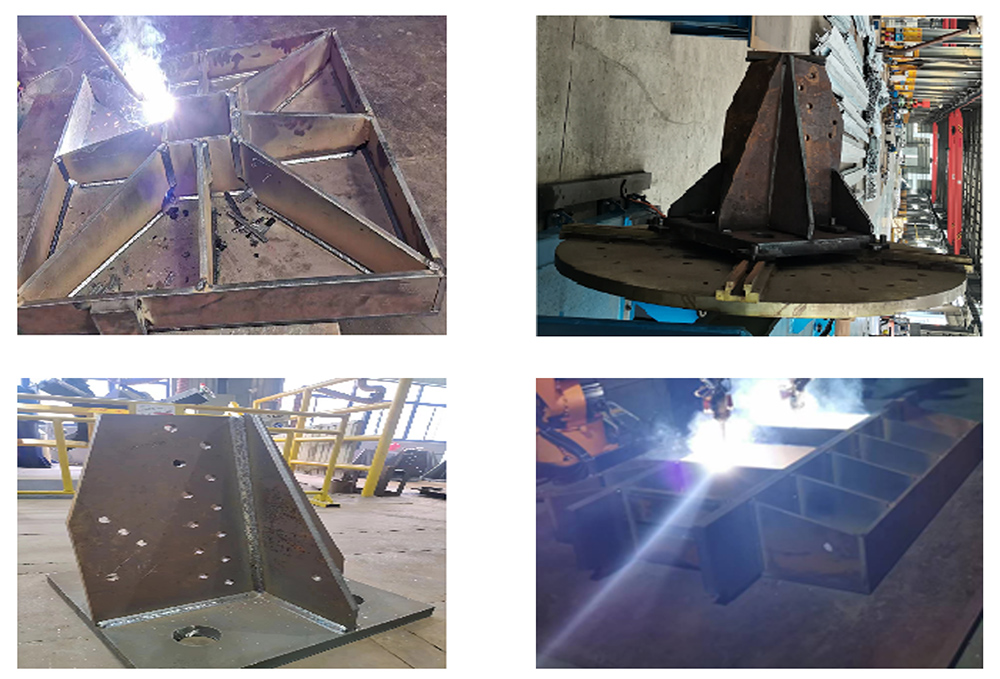

The single robot workstation is intended for smaller structural parts that can be placed within the robot’s working area. The existing applications include node plates, purlins, brackets and other compact fabricated components. It is a useful arrangement to consider when the joint distribution can be reached from a fixed robot position and a long travel mechanism would add little value.

Begin with the weld positions, not just the outside dimensions. A small bracket can still have an inaccessible inside corner, while a larger open plate may offer straightforward torch access. The approach angle, clearance for the vision system and support arrangement all matter. Provide photographs from the side and above, together with a weld drawing, to show where the torch must work.

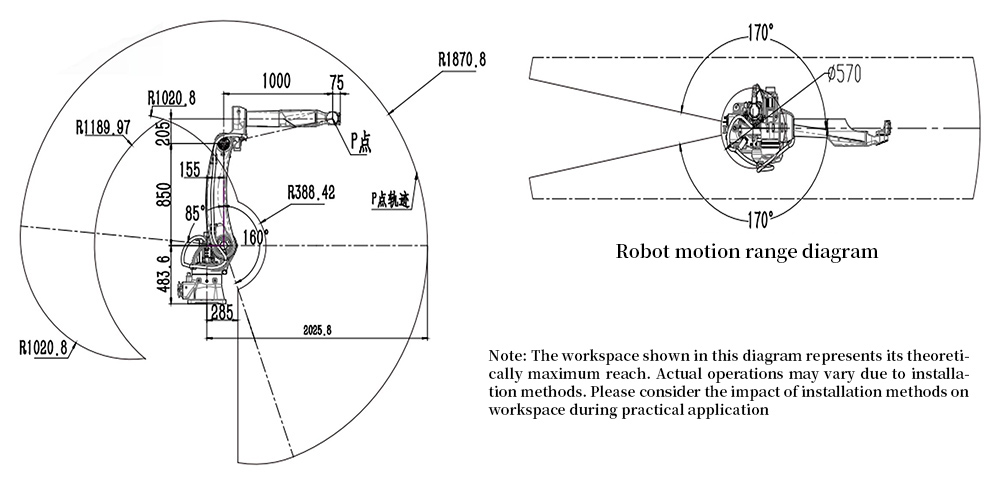

The ARC12-2000 reference has a listed 12 kg robot payload and 2025 mm maximum reach. Robot payload is the load carried at the robot wrist under the manufacturer’s specified conditions; it is not the maximum weight of the component on the table. The torch, sensor and attached equipment must be considered in the tool package. Workpiece weight is assessed separately against the fixture, supports and loading equipment.

Configure the station around the part family

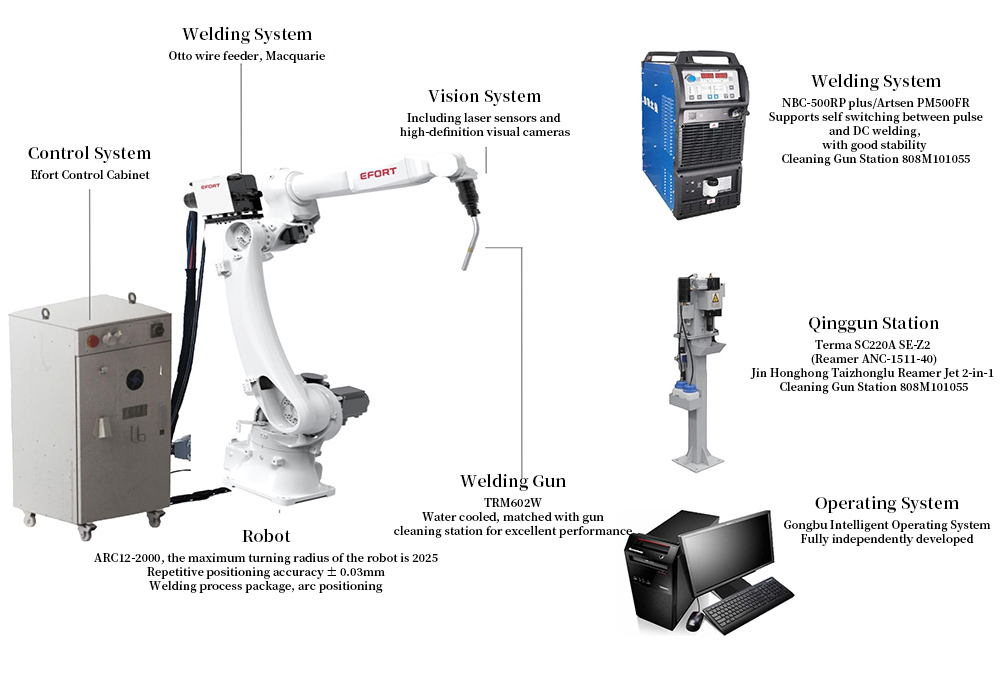

The essential comparison is between the robot, vision and welding package, the fixture arrangement and the operating workflow. Confirm the selected welding power source and process functions rather than choosing the package on rated current alone. A suitable arrangement must support the intended material, weld size, joint preparation and number of passes.

The existing equipment dimensions and working-range references describe different aspects of the installation. They should not be combined into a promise that every point inside a rectangular volume is weldable. Robot posture and torch orientation affect access. A drawing-based review and sample trial should establish which seams can be completed in one setup and which require turning the component.

A complete cycle, from loading to inspection

Prepare the component and place it in the accepted support arrangement. Check the joint fit-up, clamp position and the selected part identity. For a family with different sizes, the changeover procedure should define which fixture elements and process settings must change. This preparation is part of the cycle and should be measured rather than treated as free time.

The workstation uses visual acquisition and scanning to establish suitable seam information. The welding control associates the path with the selected process and supplies the robot instructions. During commissioning, check starts, stops, corners and transitions between joints. Review the first accepted part before using that setup for routine batches.

After the cycle, inspect the required joints and move the completed component to the next operation. If alternating work areas are used, the loading procedure must follow the integrated protection and control sequence. Include tool cleaning, tip replacement and periodic checks in the expected operating routine. The person responsible for loading also needs a clear way to identify and escalate a part that differs from the approved setup.

What a compact station can help improve

A fixed station can make repetitive accessible joints easier to organise around a consistent fixture and sequence. Vision-assisted seam acquisition can help with suitable changes in actual joint position. The opportunity is strongest when there is enough repeat work to use the cell and when parts arrive prepared for welding. A robot cannot compensate economically for every upstream variation.

A useful feasibility trial includes the small details that cause production interruptions: variation in the clamp position, a short return weld, a changed stiffener, or a joint with poor visibility. Identify which variations the accepted workflow can accommodate and which require operator action. That boundary is more useful to a buyer than a claim that the cell handles any part without preparation.

The published metres-per-day figure is a reference tied to structural type. It is not a production promise for a different bracket or weld size. Compare accepted parts per shift, using the same part preparation and inspection requirement. A station that welds faster can still spend much of its time waiting for fit-up, a crane or an inspection decision.

Single robot, ground rail or a larger workstation?

Consider the ground rail arrangement when the required joints extend well beyond a fixed robot’s practical length coverage. Compare a cantilever workstation for suitable plate-unit layouts and a gantry system for a broader structural work area. Avoid specifying travel solely to accommodate an occasional part if another setup or manual stage is more practical.

A compact robot station and manual welding can serve different jobs in the same workshop. Manual work may remain useful for low-volume exceptions, difficult access or changing repair work. The automation proposal should identify that remaining work, the expected part mix and the preparation resources needed to keep the robot supplied with suitable components.

Five questions to ask before ordering

Discuss your component and production target

Send your component drawings, weld requirements and floor layout through the enquiry form below. We can review the joint access and the appropriate configuration before preparing a quotation.
