Ground Rail Welding Robot Workstation

When a ground rail welding workstation is the right starting point

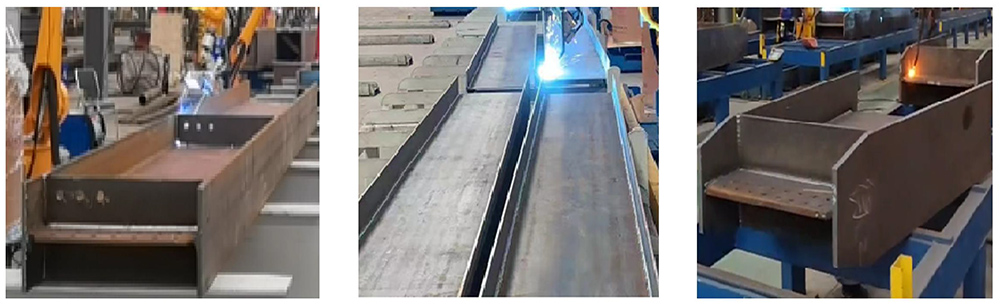

A ground rail arrangement extends the robot’s access along the length of structural components. It is useful to consider for H-beams, columns and accessible bridge or ship plate structures when the welding task mainly exceeds the reach of a fixed robot in the length direction. The track moves the robot to another working position; the robot arm must still reach the joint with the required torch angle.

Separate three dimensions when preparing a quotation: component length, rail length and the accessible weld envelope. A long rail does not establish the width or depth that the torch can reach. Supports, clamps and end clearances can reduce usable access. Include both the largest and smallest parts, because a fixture arrangement that suits a long beam may make a small component awkward to load.

For box sections, diaphragms and closely spaced ribs, provide sectional views. A joint hidden behind a plate may remain unreachable despite fitting the nominal external dimensions. The supplier needs to assess the sensor view and the approach path as well as the end position of the torch. Repositioning or a different station layout may be more practical than increasing track length.

What is included in the system?

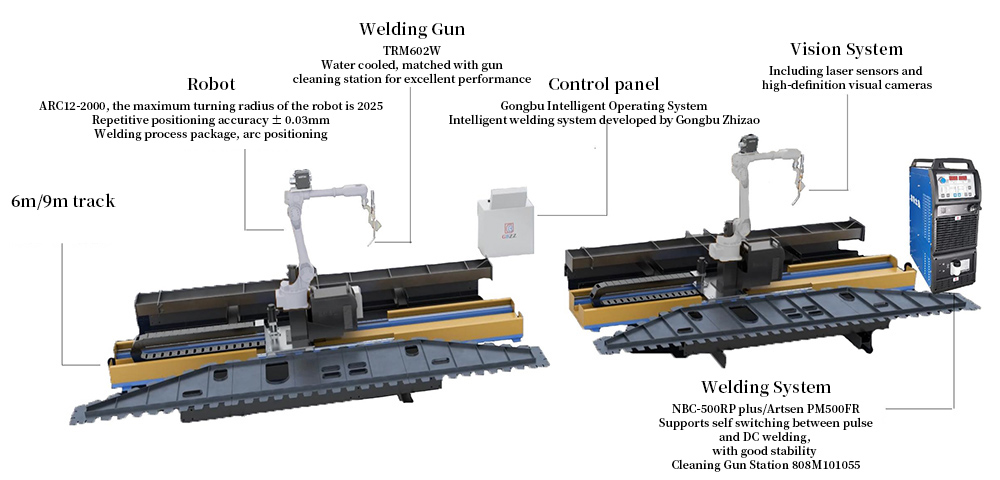

The existing description lists an arc-welding robot, ground-track mechanism, welding power source, torch and cooling package, vision system and intelligent welding control. Confirm the exact models and interfaces in the quotation. Also establish the part supports, fixture responsibilities, extraction, guarding and installation work. These determine whether two offers describe a comparable integrated cell.

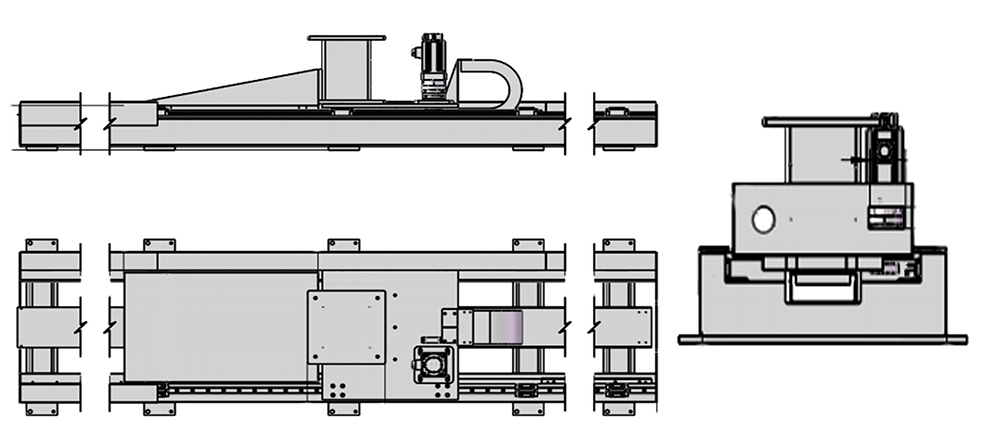

The reference data includes different rail and model arrangements. Treat the listed dimensions as configuration references, not interchangeable limits for one machine. The 9 m dual-station footprint, working-range figures and component-size entries should be matched to the selected layout drawing. This prevents a sales comparison from combining the length of one configuration with the width of another.

How the work moves through the station

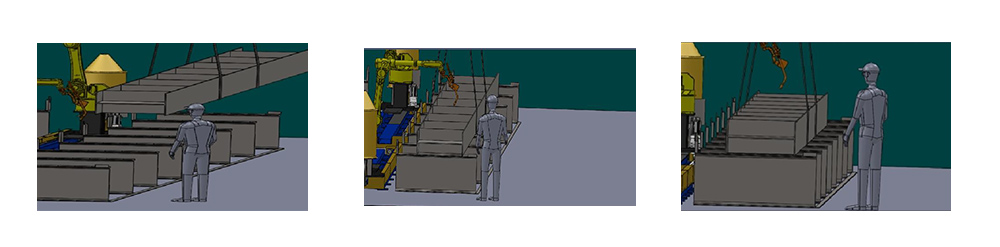

Load the component onto the agreed supports and locate it against the cell reference. Check that clamps, temporary attachments and cables do not obstruct the planned robot motion. The welding process starts with the part prepared for the approved joint type and with the appropriate process selected. A consistent loading routine helps keep the locating and scanning steps predictable.

The current model-driven workflow aligns the component model with the actual orientation, checks placement where necessary and scans the joint area. Once the accepted seam information is available, the system generates or selects the welding instructions. The control must coordinate the robot with the track at the required positions. Commissioning should test representative joints at the near, middle and far parts of the usable travel.

After welding, inspect and transfer the part to the next operation. A two-side arrangement can support a loading strategy, but simultaneous loading and robot operation must be permitted by the designed cell protection and control sequence. Do not assume that an empty side is safe to enter simply because the torch is working elsewhere. Follow the installed cell’s operating procedure.

What a track can change in your workshop

The principal benefit to investigate is access to longer components without repeatedly relocating a fixed robot installation. A planned support layout can make successive parts easier to locate. Vision-based seam acquisition addresses suitable placement variation, while coordinated travel positions the robot around the joint. These capabilities still depend on stable fixtures, suitable sensing conditions and a qualified welding process.

Measure the full production cycle before estimating a saving. Track movement, scanning and locating are necessary work, even though no arc is burning. Loading a long beam may occupy a crane that other departments also need. Torch cleaning, inspection and occasional repositioning should be included in the expected output. A faster weld does not necessarily remove the handling bottleneck.

Before ordering, ask for a sample sequence that includes the difficult ends and intersections. Compare the accepted-part output with the same component welded by your current method. Keep the assumptions for shifts, availability and part mix visible. The published operating-hours description is not a guarantee of unattended operation or a reason to omit maintenance from the production plan.

Compare alternative welding station layouts

A single robot workstation is worth comparing for smaller parts that can be brought within reach. A cantilever workstation provides another access arrangement for suitable wider plate units. Consider a gantry system when the overall work area and joint distribution justify that mechanical layout. The choice follows the weld map, not component length alone.

Manual welding can remain appropriate for occasional joints that cannot be reached economically by the proposed installation. A production plan can divide the work between the robot and a manual stage rather than adding mechanical complexity for a small number of exceptional seams. Include that remaining work and its inspection in any cost comparison.

Five questions to ask before ordering

Discuss your component and production target

Send your component drawings, weld requirements and floor layout through the enquiry form below. We can review the joint access and the appropriate configuration before preparing a quotation.
