Many factories want automation, but the workshop is crowded, orders keep changing, and workers fear robots will break the current rhythm.
A compact mobile intelligent welding robot gives factories a practical first step into smart manufacturing. I use it for flexible welding, small-batch parts, non-standard structures, and multi-station work without rebuilding the whole workshop.
I have visited many welding workshops where the problem is not a lack of interest in automation. The problem is that the first step feels too big. A full gantry system may be too large. A ground-track station may need a fixed area. A digital welding line may require planning, fixtures, product rules, and a team that already understands automation. Many factory owners tell me the same thing. They want to move forward, but they cannot stop production for a long rebuild. I understand this pressure because I see it every week. This is why I see the compact mobile intelligent welding robot as a new entry point. It is not a magic machine. It is a practical bridge between manual welding and full smart manufacturing, and that bridge is worth understanding before the next investment decision is made.

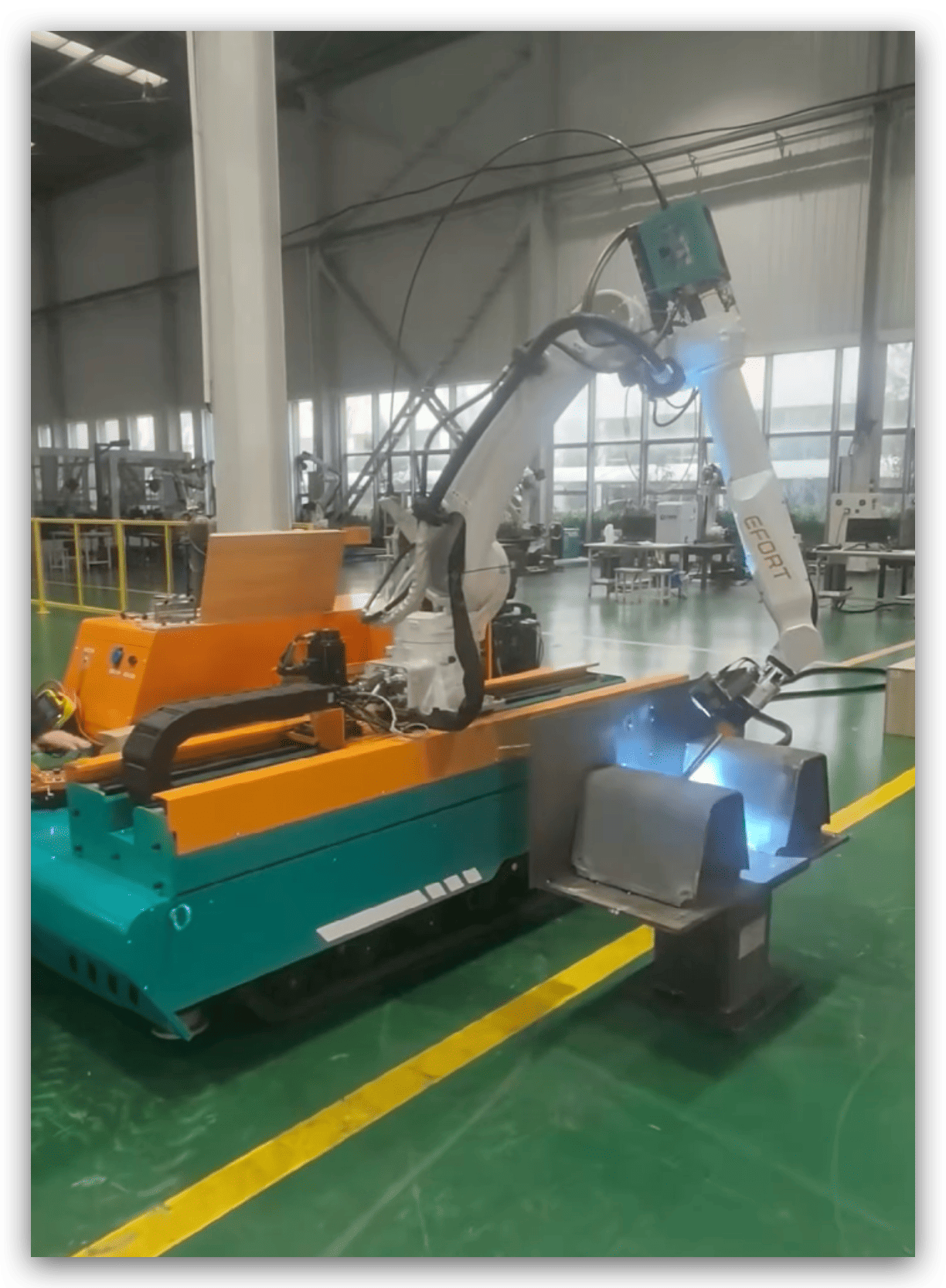

Can a 2.5 m × 1.5 m compact design move between workstations without disrupting existing production flow?
A large robot station can feel risky when the workshop is already busy, because one wrong layout change can slow the whole factory.
A 2.5 m × 1.5 m compact mobile welding robot can move between workstations, support different welding tasks, and park for charging after work. I use this design to reduce layout pressure and protect the factory’s normal production rhythm.
Why I care about size before I talk about intelligence
When I discuss robotic welding with a customer, I do not start with fancy words. I first ask about the workshop. I ask where the parts are placed. I ask where the crane moves. I ask where workers stand. I ask where welding smoke goes. I ask how parts move from cutting to assembly to welding to finishing. I ask these questions because the best robot is useless if it blocks people, forklifts, or cranes.

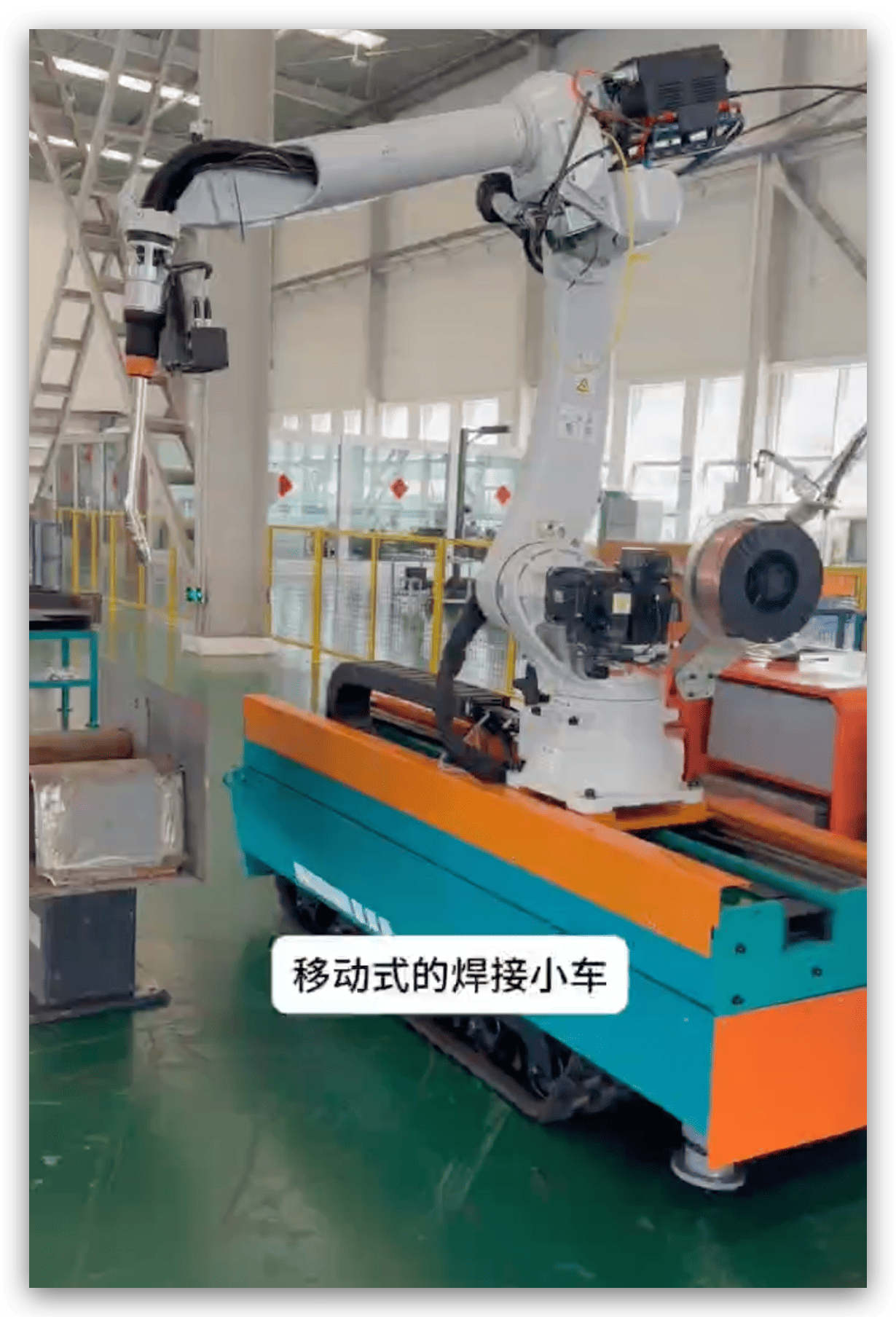

The compact mobile intelligent welding robot is built around a simple idea. The robot should enter the workshop like a helpful worker, not like a large project that forces every area to change. With an equipment length of about 2.5 meters and a width of about 1.5 meters, it can fit into many existing production spaces. It can move near a workpiece, finish a task, and then move away. This is a very different logic from a fixed robotic workstation.
| Item | Practical Meaning in My Workshop Thinking |
|---|---|
| Approx. 2.5 m length | I can place it near many common welding stations without taking a large fixed area |
| Approx. 1.5 m width | I can move it through many workshop paths if the aisle is planned well |
| Mobile cart base | I can bring the robot to the work instead of always moving the work to the robot |
| Short ground track | I can expand the robot’s reach without building a long fixed track |
| Central charging area | I can park units near a wall after work and keep the floor clear |
Why mobile deployment changes the investment risk
I remember one factory visit where the owner pointed to three different work zones. He said, “This morning we weld frames here. In the afternoon we repair parts there. Tomorrow we may produce another order.” His concern was very real. A fixed robot could serve one area, but his production did not stay in one area.
In this type of factory, a mobile robot creates a lower-risk route. I do not need to ask the factory to rebuild everything first. I can start with one or two suitable workstations. I can test simple welds. I can let the workers watch the robot, adjust the parts, and learn the control logic. Then I can decide whether more products are suitable.
This step-by-step method matters because smart manufacturing is not only a machine purchase. It is a change in the way people work. If the first project is too heavy, the team may resist it. If the first project is compact and mobile, the team can learn with less pressure.
How I usually explain the movement logic
I often explain the daily use in a very simple way.
| Time | Robot Location | Typical Task |
|---|---|---|
| Morning | Workstation A | Weld small steel structure parts or brackets |
| Afternoon | Workstation B | Weld frames, connectors, or repair parts |
| Evening | Wall-side parking area | Charge, clean, inspect, and prepare for the next day |
This daily rhythm is easy for a production team to understand. The robot does not need to own one fixed area forever. It becomes shared equipment. It can support the station that needs capacity most that day.
What the compact system usually includes
I call this product a mobile compact intelligent welding workstation because it is more than a robot arm on a cart. It includes the key parts needed for real welding work.
| System Module | What I Expect It to Do |
|---|---|
| Industrial robot | Move the welding torch with stable speed and repeatable path |
| Mobile cart | Carry the system and support flexible movement |
| Short ground track | Increase the effective working range of the robot |
| Welding power source | Match MIG/MAG, TIG, or laser welding needs |
| Welding torch system | Perform the weld based on selected process settings |
| Vision or intelligent recognition system | Help identify weld seams and reduce manual teaching |
| Control system | Manage path generation, parameters, and welding nodes |
| Power or charging module | Support mobile use and centralized charging after work |
Why I do not oversell the compact size
I never tell a customer that a compact mobile robot can replace every large system. That would be wrong. Large components, long straight welds, high-volume parts, and heavy fixtures may still need ground-track, cantilever, gantry, or full digital production line solutions.
The compact mobile system has another value. It gives the factory a practical beginning. It helps the team understand robotic welding without making the whole workshop stop. It helps workers see how a robot moves, how a seam is found, how welding nodes are selected, and how parameters affect the weld. In my view, this learning value is often as important as the welding output.
What I check before I recommend it
Before I recommend this system, I usually check several basic points.
| Check Point | Why I Check It |
|---|---|
| Part size | I need to know if the robot can reach the welds well |
| Part weight | I need to know if moving the part or moving the robot is better |
| Weld length | I need to judge whether mobile welding is efficient |
| Batch size | I need to see if repeated work can justify automation |
| Weld position | I need to know if vision recognition and torch access are practical |
| Workshop aisle | I need to confirm that the cart can move safely |
| Worker skill level | I need to plan training and handover speed |
When these points are clear, the discussion becomes honest. The customer can see both the value and the limits. I prefer this way because trust is built by clear judgment, not by big promises.

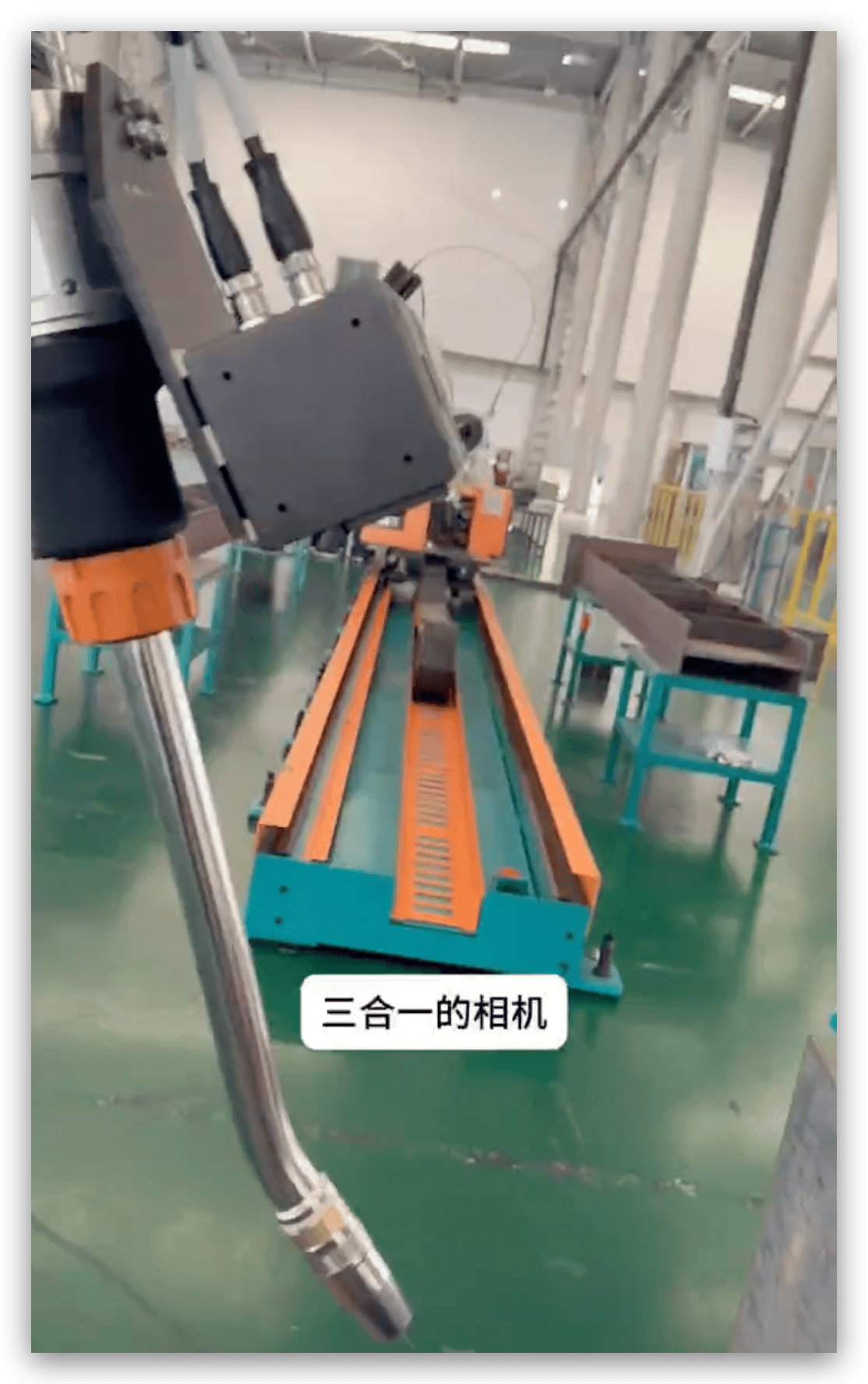

Is this mobile intelligent welding robot ideal for non-standard welding applications in steel structures, engineering machinery, shipbuilding sub-assemblies, bridge components, and metal fabrication?
Non-standard welding is hard to automate because products change, weld seams move, and many workshops still depend on experienced welders.
This mobile intelligent welding robot fits non-standard welding when parts are medium or small, batches change often, and the factory needs flexible automation for steel structures, machinery frames, shipbuilding sub-assemblies, bridge parts, and metal fabrication.
Why non-standard welding needs a different robot logic
In standard production, automation is easier. The same part comes again and again. The fixture is fixed. The weld seam stays in the same place. The robot program can be used many times. This is the ideal case for traditional robotic welding.
Many of my customers do not live in that ideal case. They produce steel structure connectors this week, machine frames next week, and custom metal parts after that. They may have ten pieces today and thirty pieces tomorrow. The drawing may change. The hole position may change. The plate thickness may change. The weld seam may move because assembly has tolerance.
This is why I care about intelligent recognition and flexible movement. The robot should help the worker handle change. It should not demand a perfect factory before it can start. A mobile intelligent welding robot is useful because it allows the team to test different parts in different areas. It can support non-standard production where fixed automation is too heavy or too slow to deploy.
Where I see the strongest fit
I often see this system fit best in industries where products are welded but not always repeated in large batches.
| Industry | Suitable Workpieces | Why I Think It Fits |
|---|---|---|
| Building steel structures | Brackets, beams, stiffeners, connectors | Many parts are similar but not always identical |
| Engineering machinery | Frames, bases, supports, box structures | Weld quality and strength are important |
| Shipbuilding | Sub-assemblies, stiffeners, local plate structures | Many small sub-parts need stable welding support |
| Bridge manufacturing | Auxiliary structures, support parts, connecting plates | Parts often need strong welds and flexible handling |
| Metal fabrication workshops | Custom frames and small-batch orders | Work changes often, and labor pressure is high |
| Equipment manufacturing | Machine bodies, welded frames, covers | Different products share similar welding logic |
How I choose the first parts for testing
I do not start with the hardest part. I start with parts that can help the team win confidence. This is important. If the first trial is too difficult, everyone will say the robot is not useful. If the first trial is practical, workers become more open.
I usually suggest starting with parts that have clear weld seams, stable assembly, and enough repetition. The part does not need to be mass production. It only needs to appear often enough for training and process testing.
| First Trial Part Feature | Reason I Prefer It |
|---|---|
| Clear weld seam | The robot and vision system can identify the welding path more easily |
| Stable fixture or support | The part position is more reliable |
| Medium weld length | The efficiency benefit is easier to see |
| Common thickness range | Welding parameters are easier to set and repeat |
| Safe torch access | The robot can move without collision or awkward angles |
| Repeat orders | The factory can reuse experience later |
What “ideal” really means in non-standard welding
I use the word “ideal” carefully. It does not mean the robot can weld any random part with no preparation. It means the system fits the real problem better than a large fixed station in many cases.
For example, a steel structure factory may have many small connectors and stiffeners. These parts may not justify a large gantry system. But they still take many hours of manual welding. A compact mobile robot can be moved near the parts and used for selected welds.
An engineering machinery factory may have frames and support structures with changing shapes. A mobile robot can help the team handle selected seams while workers handle assembly, tacking, turning, and special areas.
A shipbuilding workshop may have sub-assemblies that are too small for a large line and too varied for fixed automation. A mobile robot can support local welding tasks and help reduce labor load.
A bridge component workshop may have auxiliary plates and connection parts. The robot can help improve weld consistency when the seam structure is suitable.
Why the worker still matters
I always tell customers that the robot does not remove the value of skilled workers. It changes where their value is used. A skilled welder knows what a good weld looks like. He knows when the gap is too large. He knows when the assembly is wrong. He knows when the heat input may cause deformation. The robot needs this human judgment.
In a good mobile welding project, the worker becomes a process guide. He prepares the part. He checks the seam. He selects the welding node. He watches the first pass. He adjusts the parameters when needed. The robot provides stable movement and repeatable execution. The worker provides experience and final judgment.
This is why I like the phrase “skilled workers plus intelligent equipment.” It feels true to what I see in factories. The future workshop will not be only manual. It will also not become fully unmanned overnight. It will be a working mix.
What process options I consider
The compact mobile robot can be configured based on the welding process. I usually discuss the process after I understand the material, thickness, joint type, and production target.
| Process Option | Common Use Case | My Practical Comment |
|---|---|---|
| MIG/MAG robotic welding | Steel structures and frames | It is common, strong, and familiar to many factories |
| TIG robotic welding | Thin parts or cleaner weld needs | It may be slower, but it can give fine weld control |
| Laser welding | Thin to medium metal parts with high speed needs | It can be fast and clean when fit-up is good |
| Hybrid or customized setup | Special projects | I use it only after process testing proves the value |
For heavy structural welding, MIG/MAG is often the first discussion. For thin stainless steel or precision metal fabrication, laser welding may be considered. For special weld quality needs, TIG may make sense. I do not choose the process based on trend. I choose it based on the workpiece.
How intelligent recognition helps but does not replace preparation
Vision and intelligent recognition are very useful. They can help find weld seams, correct position error, and reduce manual teaching. But I still need the part to be prepared in a reasonable way. If the gap is too large, if the part is badly assembled, or if the weld area is blocked, the robot will face problems.
I explain this in simple words to customers. The robot can handle reasonable change. It cannot fix every upstream problem. Good cutting, fit-up, tacking, and fixture support still matter.
| Upstream Condition | Effect on Robotic Welding |
|---|---|
| Good part fit-up | Easier seam recognition and better weld quality |
| Stable tacking | Less movement during welding |
| Clean weld area | Fewer defects and better sensor reading |
| Controlled gap | More stable penetration and appearance |
| Clear access | Safer robot movement and better torch angle |
A human moment from my factory visits
I once watched an older welder stand beside a robot during a trial. At first, he did not say much. He crossed his arms and looked serious. After the robot finished a smooth weld bead, he walked closer and checked it with the habit of a man who had welded for many years. Then he said, “It is good, but the start point needs a little change.”
That sentence stayed with me. It showed the real role of intelligent welding. The robot did the stable work. The welder gave the key judgment. The best result came from both sides. I think many factories need this kind of cooperation more than they need slogans about replacing people.

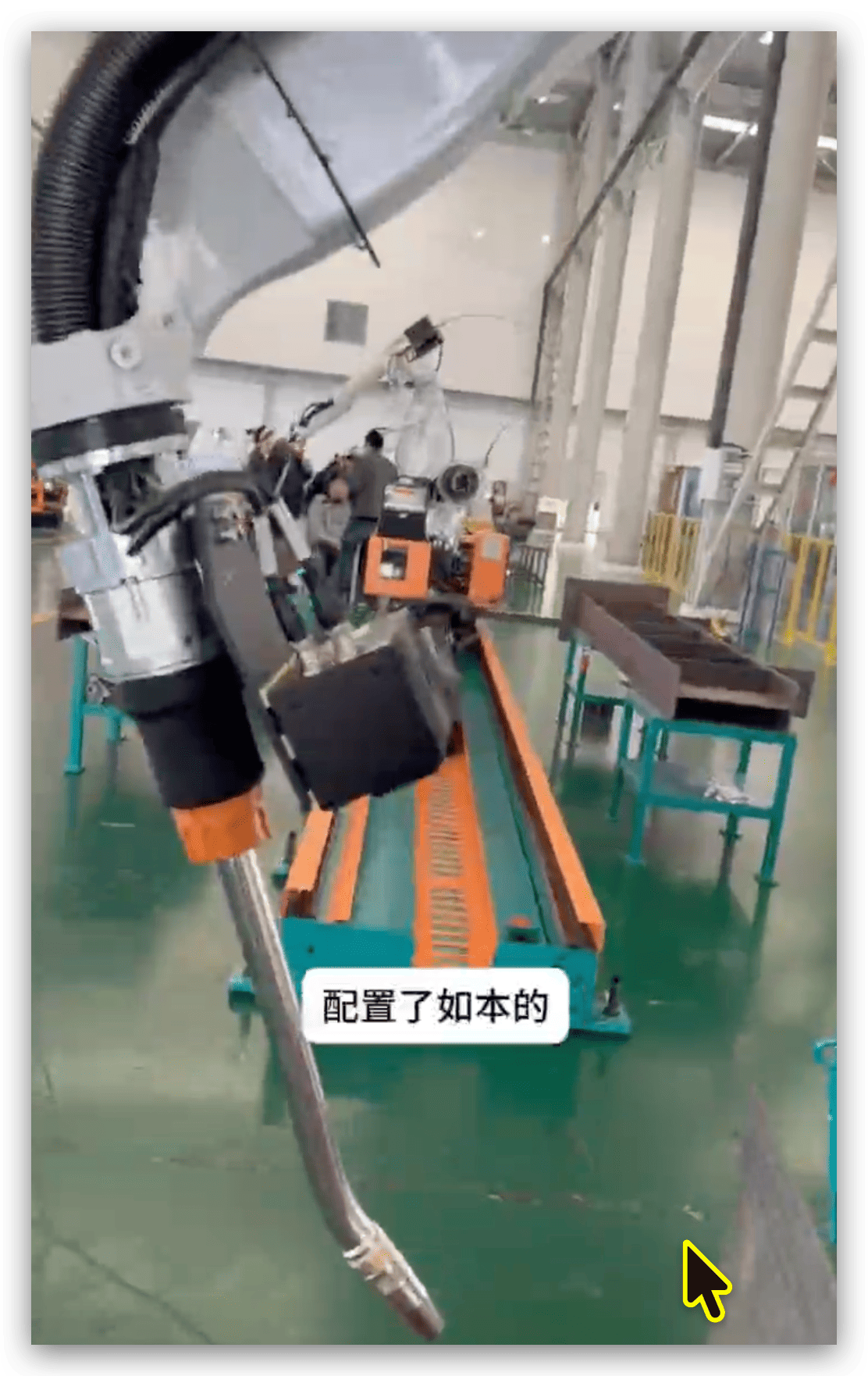

Can this compact robot complement ground-track, cantilever, and gantry welding systems while helping blue-collar workers collaborate efficiently with intelligent equipment?
A factory may already own large automation, but small parts, repair jobs, samples, and changing orders still pull workers back into manual welding.
This compact robot complements large welding systems by handling flexible, small-batch, and multi-station work. I use it as a support unit that helps blue-collar workers learn, verify, and cooperate with intelligent equipment in daily production.
Why I do not see it as a replacement for large systems
When a customer already has a ground-track welding system, a cantilever workstation, or a gantry robot, I do not tell him to replace those systems with a compact cart robot. That would not make sense. Large systems have clear strengths. They are stable. They can cover large workpieces. They can support heavier parts and longer welds. They can be tied into a digital production line.
The compact mobile robot has a different role. It fills the gaps around the big systems. In many factories, the large workstation is busy with main products. At the same time, small parts wait beside the line. Trial parts need welding. Repair welds appear. A rush order comes in. A sample must be verified before formal production. These tasks may not fit the large system well. They may also waste skilled welder time.
This is where the compact mobile system becomes useful. It is not the main highway. It is the flexible service road that keeps the whole plant moving.
How I compare different welding automation forms
| System Type | Strong Point | Limit I Often See | Best Use |
|---|---|---|---|
| Ground-track robot | Long working range and stable layout | Needs fixed space and planning | Large structures and repeated work |
| Cantilever robot | Good side access and workstation control | Workpiece size and station layout still matter | Medium to large parts |
| Gantry robot | Wide coverage and strong automation potential | Higher cost and larger project scope | Large components and production lines |
| Digital welding line | High system integration | Needs product rules and strong management | Mature batch production |
| Compact mobile robot | Flexible movement and low entry barrier | Not for every large or complex part | Small-batch, non-standard, multi-station work |
This comparison helps customers place each system in the right position. I have learned that confusion often comes from asking one machine to do every job. A strong factory uses different tools for different tasks.
How the compact robot completes the intelligent welding product chain
In my product thinking, intelligent welding should not be only one large machine. It should be a chain of solutions. Some customers need handheld laser welding. Some need a robotic laser welding station. Some need MIG/MAG robotic welding. Some need 3D vision scanning with programming-free path generation. Some need a gantry system. Some need a compact mobile robot.
When I add the compact mobile robot to this chain, I can serve customers who are not ready for large automation yet. I can also serve customers who already have large automation but still need flexible support.
| Customer Stage | Common Need | Suitable Solution Direction |
|---|---|---|
| Manual welding stage | Improve quality and reduce labor pressure | Handheld laser or entry-level mobile robot |
| First automation stage | Learn robotic welding with lower risk | Compact mobile intelligent welding robot |
| Growing automation stage | Add fixed stations for repeated parts | Ground-track or cantilever systems |
| Mature automation stage | Build larger production flow | Gantry systems or digital welding lines |
| Advanced smart stage | Reduce programming and improve recognition | 3D vision and intelligent path generation |
Why blue-collar collaboration is the real topic
Many people talk about robots like the only question is “Will the robot replace workers?” In my daily work, the better question is different. I ask, “How can the worker and the robot finish more work with better quality and less fatigue?”
Welding is hard work. It has heat, smoke, glare, and physical strain. Many young people do not want to become welders. Many experienced welders are getting older. Many factories have orders but cannot find enough stable workers. This labor problem is real.
A compact mobile robot can help by taking over selected repeatable welds. The worker can focus on preparation, checking, adjustment, and special welding. This does not remove the worker from the process. It raises the worker’s role.
How I train teams to accept the robot
I have seen projects fail not because the robot was bad, but because the people were not ready. The operator did not understand the process. The production manager expected too much too fast. The welder felt ignored. The maintenance team did not know basic checks. So I now take training very seriously.
I like to train in stages.
| Training Stage | What I Teach | Why It Matters |
|---|---|---|
| Basic safety | Robot movement, emergency stop, safe distance | Workers must feel safe first |
| Workpiece selection | Which parts fit robotic welding | The team must choose the right first jobs |
| Seam recognition | How the system finds or confirms weld seams | Operators must trust and verify the robot |
| Node selection | Start point, end point, weld order | Good choices improve quality and efficiency |
| Parameter adjustment | Current, voltage, speed, wire feed, laser power if used | Weld quality depends on process control |
| Daily maintenance | Torch, cable, sensor, cart, power source | Stable use needs simple daily care |
| Problem feedback | How to record defects and improve | The process must improve over time |
Why the entry-level learning value is not small
Some factory owners ask me, “If this compact robot is not the final solution, why should I buy it?” My answer is simple. A good first robot teaches the factory how to use the next robot better.
Before using a robot, many teams think automation is only about pressing one button. After using it, they understand that product selection matters. Fixtures matter. Weld sequence matters. Part tolerance matters. Parameter windows matter. Worker training matters. Maintenance matters.
This learning has real value. It reduces future mistakes. It helps the factory make better decisions when it buys larger systems later. It also helps managers speak the same language as operators. I have seen this change happen. At first, the meeting is full of guesses. After several weeks of real use, the team starts to discuss actual weld nodes, path logic, and process settings. That is a good sign.
Where I would use the compact robot in a factory with large systems
If a factory already has large automated systems, I would place the compact robot in roles that support the full production flow.
| Support Role | Example Task | Benefit |
|---|---|---|
| Small part welding | Brackets, plates, connectors | Frees large systems for larger work |
| Sample trial production | New product weld verification | Reduces disruption to main line |
| Repair welding support | Local weld repair or supplement | Reduces waiting time |
| Multi-station support | Move where capacity is short | Improves daily flexibility |
| Training unit | Teach operators robotic welding | Reduces risk before larger projects |
| Process testing | Test new parameters or weld methods | Builds internal welding knowledge |
This use logic makes the compact robot practical. It does not compete with large systems. It supports them.
How I see return on investment
I am careful when I discuss ROI because every factory is different. A robot’s return depends on part type, welding time, labor cost, quality requirements, rework rate, and utilization. Still, I can explain the main areas where value usually appears.
| ROI Source | How Value Appears |
|---|---|
| Labor support | One operator may manage robot welding for suitable tasks |
| Stable quality | More consistent welds can reduce rework |
| Higher output | Repeatable torch movement can improve welding efficiency |
| Flexible use | The robot can serve different workstations |
| Lower entry cost | The project can start without large workshop changes |
| Training value | The team learns automation before bigger investment |
| Better worker use | Skilled welders focus on judgment and complex work |
I do not promise one fixed payback period without data. I prefer to calculate with the customer. I ask for weld length, daily welding hours, worker cost, current output, defect rate, and expected robot use. Then we estimate together. This honest calculation is better than a simple sales promise.
What I would not use it for
A clear limit is also part of a good recommendation. I would not use this compact mobile robot as the first choice for very large parts that need long continuous coverage. I would not use it for parts that cannot be reached safely. I would not use it when the workpiece fit-up is very poor and the customer refuses to improve it. I would not use it when the factory expects full unmanned welding from day one.
| Not Ideal Situation | Better Direction |
|---|---|
| Very large structures | Ground-track, cantilever, or gantry system |
| High-volume fixed product | Dedicated robotic workstation or production line |
| Poor assembly and large gaps | Improve upstream process first |
| No operator training plan | Build training plan before automation |
| Unrealistic unmanned expectation | Start with worker-robot collaboration |
This honest boundary protects both sides. The customer avoids disappointment. I avoid building a project that cannot succeed.
Why I believe this product is part of the future workshop
I believe the future factory will include many levels of automation. Some welding will still be manual. Some welding will use handheld laser machines. Some welding will use fixed robotic stations. Some welding will use large gantry systems. Some welding will use vision-guided, programming-free intelligent systems. The compact mobile robot will sit between these layers.
Its value is not only in welding. Its value is also in access. It lets a factory touch smart manufacturing with less fear. It lets workers learn by doing. It lets managers test real products. It lets owners invest step by step. It lets the workshop keep its current rhythm while slowly becoming smarter.
I like this idea because it feels human. A factory does not change in one day. A worker does not trust a robot because of a brochure. A manager does not understand smart manufacturing because of a video. Real change comes from daily use, small success, honest failure, adjustment, and repeat practice. This compact mobile intelligent welding robot gives factories a practical way to begin that process.
Conclusion
I see compact mobile intelligent welding robots as a practical bridge where skilled workers, flexible production, and smart manufacturing can grow together.
