Is Your Factory Ready for a Nine-Axis Cantilever Robotic Welding Workstation?

Manual welding delays orders. A wrong robot choice delays them again. I see many factories skip the real question.

Your factory is ready for a nine-axis cantilever robotic welding workstation only when your workpieces, weld seams, fixtures, site space, power supply, operators, and welding process are ready for automation, not just when the robot price or brand looks acceptable.

I have spoken with many factory owners who want to move from manual welding to robotic welding. I understand the pressure. Welders are hard to hire. Quality changes from one shift to another. Delivery time becomes hard to control. So a nine-axis cantilever robotic welding workstation looks like a direct answer. In real customer discussions, I often find that the machine is not the first problem. The first problem is that the factory has not clearly checked the parts, the welding process, the site, and the people who will use the system. If you are thinking about this type of workstation, I want to walk through the same questions I usually ask before I recommend a solution.

Why Do I Start with the Workpiece Before Comparing Robot Specifications?

A strong robot still fails on the wrong part. I have seen buyers compare reach, payload, and price before they understand their weld seams.

I start with the workpiece because the part decides the welding posture, robot path, fixture design, cycle time, and final welding result. Robot specifications matter, but they only make sense after I understand the material, thickness, seam length, seam position, batch size, and current welding problem.

I Ask What the Factory Welds Every Day

When a customer asks me about a nine-axis cantilever robotic welding workstation, I do not start with the robot model. I start with the part. I usually ask for drawings, photos, videos, material information, and the current manual welding method. I do this because the robot does not weld a factory. The robot welds one seam after another seam on a real workpiece.

A workpiece can look simple from far away. It can become hard when I see the weld position. Some seams are long and straight. Some seams are hidden under a rib plate. Some seams need overhead posture. Some parts have big size differences from batch to batch. Some parts are easy to clamp. Some parts move after tack welding. These details decide if a nine-axis cantilever system is the right tool.

In customer discussions, a common issue is that the buyer says, “We weld steel structures,” or “We weld tanks.” That answer is too wide. I still need to know the joint type, the material thickness, the gap condition, the weld length, and the required penetration. I also need to know if the seam must be full penetration or if it is a fillet weld for strength and appearance.

Workpiece Question I Ask	Why I Ask It	What It Changes
What material do you weld?	Carbon steel, stainless steel, and aluminum need different process choices.	Laser power, wire feeding, shielding gas, and parameter range.
What is the thickness range?	Thin parts and thick parts have different heat needs.	Laser power, travel speed, joint preparation, and penetration plan.
Where are the seams?	The robot must reach the seam with the right torch angle.	Robot posture, external axis use, and fixture height.
How long are the seams?	Long seams can use automation better than very short random seams.	Cycle time, path planning, and ROI estimate.
How stable is the gap?	Robots need repeatable parts more than human welders do.	Fixture design, seam tracking, and pre-welding control.
How many pieces per day?	Automation needs enough repeat use to show value.	Workstation size, loading method, and project priority.

I Check the Weld Seam Before I Talk About the Axis Count

A nine-axis system sounds powerful. It can move more than a standard six-axis robot. It can cover a wider working range. It can move along a rail. It can lift and shift through external axes. This is useful for large steel structures, pipe frames, tank parts, and long workpieces. But more axes do not remove the need for a clear weld seam.

I look at the seam direction first. I want to know if the seam is horizontal, vertical, circular, inside corner, outside corner, or mixed. I also look at access. A robot arm needs space to approach the seam. The laser welding head, MIG torch, or TIG torch needs a correct angle. The cable package also needs space. If the part has many blocks around the seam, the robot may need a special fixture or a different workstation layout.

I also ask how the seam is welded by hand now. This is important. Manual welding habits show the real production problem. If the welder uses many short welds, stops often, grinds between passes, or adjusts the gap by hand, the robot project must include those steps in the plan. If the factory ignores these steps, the workstation may look good in a quotation and become difficult on the floor.

I Look at Volume, Mix, and Pain Points Together

A nine-axis cantilever robotic welding workstation is often considered by factories that have large parts or many part types. I do not assume that high-mix production is impossible. I also do not assume that automation is always right. I separate the workpieces into groups.

I like to group parts by weld position, size, thickness, and fixture method. If ten product models share the same basic seam type, one system may handle them with different programs or automatic path generation. If every part is different and every part is placed by hand in a new way, the factory must think harder about scanning, positioning, and operator training.

For intelligent programming-free systems with 3D vision scanning, I still explain one point clearly. “No programming” does not mean “no preparation.” It means the system can help generate paths from scanned seam or workpiece data under the right conditions. The factory still needs stable fixtures, clear seam access, correct welding parameters, and trained operators.

Production Situation	My View	Risk If Ignored
Long repeated seams	I usually see stronger automation value.	The factory may still lose time if loading is slow.
Large parts with similar structure	A nine-axis cantilever system may be suitable.	Poor fixture design can reduce repeatability.
Many different small parts	I check if one flexible cell is better.	The system may be underused.
Heavy parts with crane loading	I check safety area and workflow first.	Loading time may eat the welding time saving.
Parts with poor fit-up	I suggest fixing upstream process first.	The robot may repeat defects faster.

I Do Not Let Robot Specifications Hide the Real Problem

Many customers ask me, “What is the robot reach?” or “What brand do you use?” These questions are fair. A KUKA robot, a SIASUN robot, or another robot platform must fit the project. Payload, reach, repeatability, and control system all matter. But I only use these details after I understand the workpiece.

If the seam is outside the robot reach, then external X, Y, and Z axes may solve the range problem. If the seam needs a stable flat position, then a positioner may be more important than a longer robot arm. If the part changes shape after welding, then the process and fixture may be more important than the robot brand.

I also remind customers that a nine-axis cantilever workstation is not a magic box. It can help reduce dependence on high-skill manual welders. It can improve stability when the process is controlled. It can improve efficiency when loading, clamping, scanning, welding, and unloading are planned. But it cannot automatically fix poor drawings, bad cutting accuracy, weak fixtures, wrong welding parameters, or an untrained team.

How Do I Understand the Nine-Axis System as a Complete Welding Workstation?

A buyer may think he is buying a robot arm. I see a larger system. If one part is weak, the whole station suffers.

I understand a nine-axis cantilever robotic welding workstation as a complete system made of external axes, a ground rail, a cantilever beam, a robot, welding equipment, control cabinets, safety parts, lubrication, and software. These parts work together to expand reach and keep welding motion stable.

I Separate the Robot from the Workstation

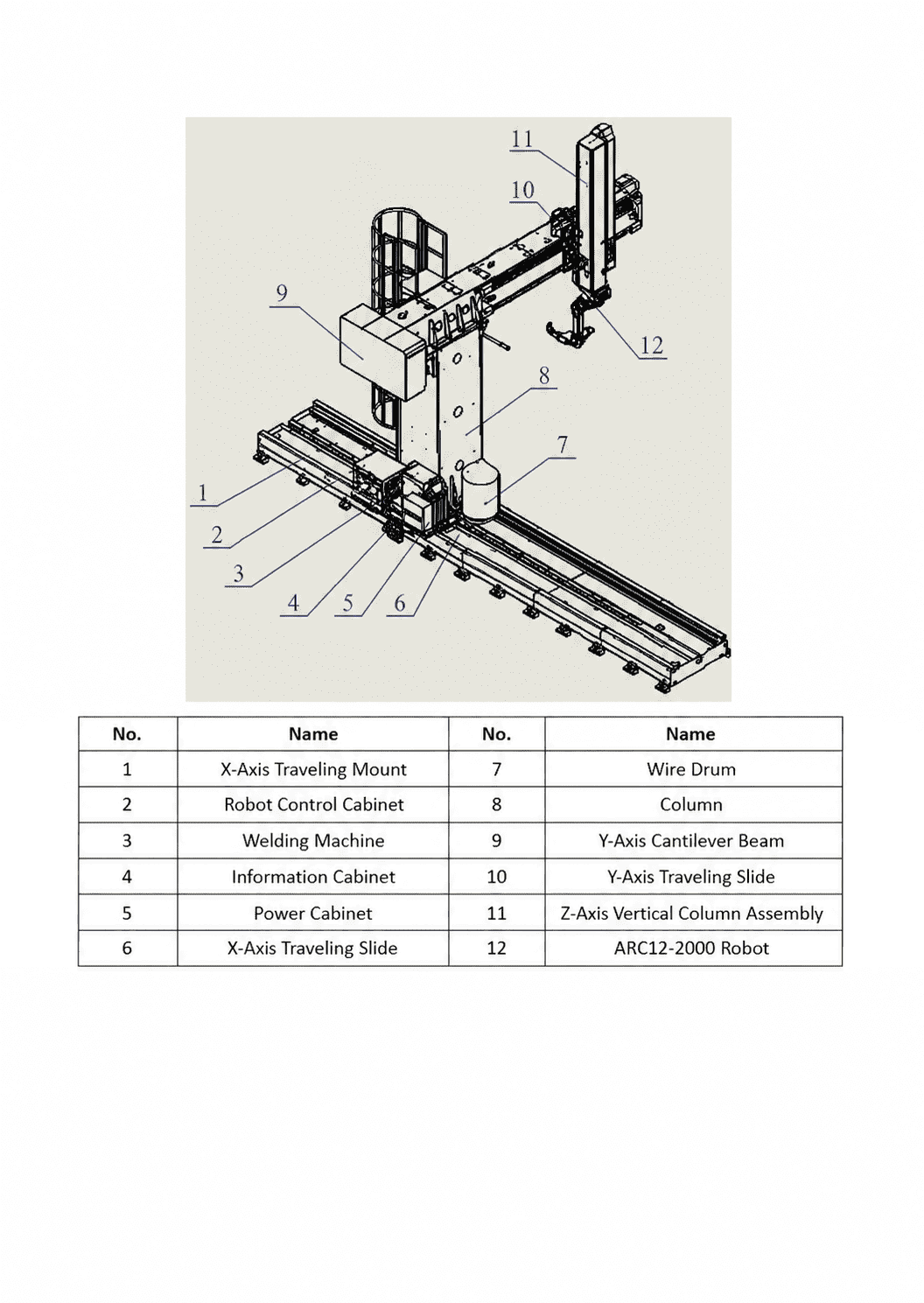

A six-axis robot arm is only one part of the system. A nine-axis cantilever station usually adds three external axes to increase working range and flexibility. In simple words, the robot does not stay in one fixed point. It can move with the system. The whole structure helps the welding head reach long or large workpieces.

The exact design depends on the supplier and project. In the equipment documents I review during pre-sales work, I usually see a layout that includes a ground rail, a moving column or support, a cantilever beam, a vertical lifting axis, the robot arm, the welding machine, wire feeder if needed, laser source if it is laser welding, chiller, control cabinets, cables, lubrication points, and safety devices. These items must be considered together.

If a buyer only compares the robot arm, he may miss the parts that decide daily use. A good robot with a weak layout can still make production slow. A strong welding power source with poor fixture access can still create bad welds. A smart scanning system with poor lighting or unstable part placement can still give trouble.

Workstation Part	What I Check	Why It Matters
Ground rail	Travel length, floor flatness, anchor plan, safe zone.	It decides how far the system can move.
Cantilever beam	Working width, stiffness, cable routing, height.	It affects reach and welding stability.
Z axis or lift axis	Vertical travel and clearance.	It helps reach high and low seams.
Robot arm	Reach, payload, wrist access, brand support.	It controls torch movement and posture.
Welding equipment	Laser power, MIG/TIG source, wire feed, gas.	It decides process capability.
Control cabinets	Power, signals, cooling, placement.	It affects installation and maintenance.
Lubrication system	Lubrication points and maintenance interval.	It protects moving axes.
Safety system	Fencing, light curtain, emergency stop, warning.	It protects operators and visitors.

I Explain the Three Extra Axes in Plain Words

When I talk with a factory owner, I avoid making the axis system sound mysterious. I explain it in normal shop language. The robot has six axes. These axes let the arm bend, rotate, and set the welding head angle. The station adds external axes. These axes move the robot or the robot base through a larger area.

The external axes may include movement along the ground rail, movement across the cantilever beam, and vertical movement. Some designs use X, Y, and Z names. Some designs use track, beam, and lifting names. The purpose is the same. The system gives the robot a larger working space.

This is useful when the workpiece is too long for a fixed robot. It is also useful when the factory wants the robot to weld several areas without moving the part many times. A long beam, a tank body, a trailer part, or a steel structure frame may need this type of movement.

But I also explain the trade-off. More movement means more installation work. The floor must support the rail. The travel area must stay clear. Operators must understand safe zones. Maintenance must include external axes and lubrication. If the factory only wants to weld small repeated parts, a simpler robot cell may be more practical.

I Connect the Welding Process to the Mechanical System

A nine-axis cantilever workstation can support different welding processes based on configuration. I work with customers who consider handheld laser welding machines, robotic laser welding stations, MIG robotic welding systems, TIG robotic welding systems, and intelligent systems with 3D vision scanning. I always match the process to the material and joint, not to a brochure.

Laser welding can give high speed and a clean seam on suitable materials and thicknesses. It can reduce heat input compared with some traditional processes. But it needs good joint fit-up, proper shielding gas, correct focus, and suitable power. A 1500W, 2000W, or 3000W laser source must be chosen based on material, thickness, joint type, and production target. Full penetration may be possible in suitable conditions, but it is not something I promise without checking the part and process.

MIG welding is still very useful for thicker steel structures and heavy fabrication. It can fill gaps better than laser welding in many cases. It may need more spatter control and cleaning. TIG welding can give high quality on certain parts, but speed may be lower. The right process depends on the part.

Process Choice	Where I Often Consider It	What I Confirm First
Robotic laser welding	Stainless steel, carbon steel, clean seams, suitable fit-up.	Thickness, gap, penetration need, laser power, gas.
Robotic MIG welding	Steel structures, thicker parts, general fabrication.	Wire size, joint prep, spatter control, pass number.
Robotic TIG welding	Parts needing smooth appearance or controlled heat.	Speed target, material, joint design, operator expectation.
Laser with wire	Parts needing some gap filling.	Wire feed stability, seam tracking, parameter window.
Vision-guided welding	High-mix parts or variable placement.	Scan access, surface condition, fixture repeatability.

I Treat “Programming-Free” as a Workflow, Not a Slogan

Many overseas customers like the idea of a programming-free welding system. I like it too, when the project fits. In simple terms, the system can use 3D vision scanning to identify the workpiece or seam and generate a welding path. This can reduce the need for traditional robot programming. It can help small and medium workshops move into automation with less robot coding burden.

But I always say that the word “programming-free” needs care. The system still needs a correct part setup. The operator still needs to choose or confirm process rules. The workstation still needs a clear start point, safe movement, torch angle limits, and welding parameters. The scanned seam must be visible to the sensor. The part must be placed in a known working area. The fixture must hold it during welding.

I once had a customer discussion where the customer wanted the robot to scan any random welded frame on the floor and weld it without fixture planning. I understood the wish. The factory had many different frames. The manager wanted to remove manual layout work. But I had to explain that automation still needs boundaries. If the part is randomly placed, if the gap changes too much, and if the seam is blocked, the system cannot be expected to solve every problem by itself.

I Look at Maintenance Before the Sale Is Finished

A complete workstation has moving parts. The external axes, rail, beam, robot, cable chain, welding equipment, cooling system, and lubrication points need care. I do not like to hide this from customers. A machine that is not maintained will not keep stable production.

In the equipment documents, lubrication instructions and maintenance points are usually listed. I treat these as a planning guide. The customer should know who will clean the rail area, who will check lubrication, who will inspect cables, who will monitor the chiller, who will replace consumables, and who will call for support when alarms appear.

This matters more in factories that are moving from manual welding to automation for the first time. A manual welding station can be rough and still work for a while because a skilled welder adjusts by hand. A robotic workstation repeats the same path. It needs a cleaner and more controlled work area. It also needs a person who owns daily care. If nobody owns maintenance, small problems become downtime.

What Should I Check About Site Space, Power Supply, Training, and Process Readiness Before Delivery?

A factory may approve the purchase order too early. I prefer to check the site first. Delivery is not the start of planning.

I check site space, floor condition, power supply, breaker capacity, safety area, crane path, operator training, fixtures, welding parameters, and production workflow before delivery. The workstation needs a prepared environment, or installation and debugging will take longer than expected.

I Use Manual Parameters as an Installation Readiness Checklist

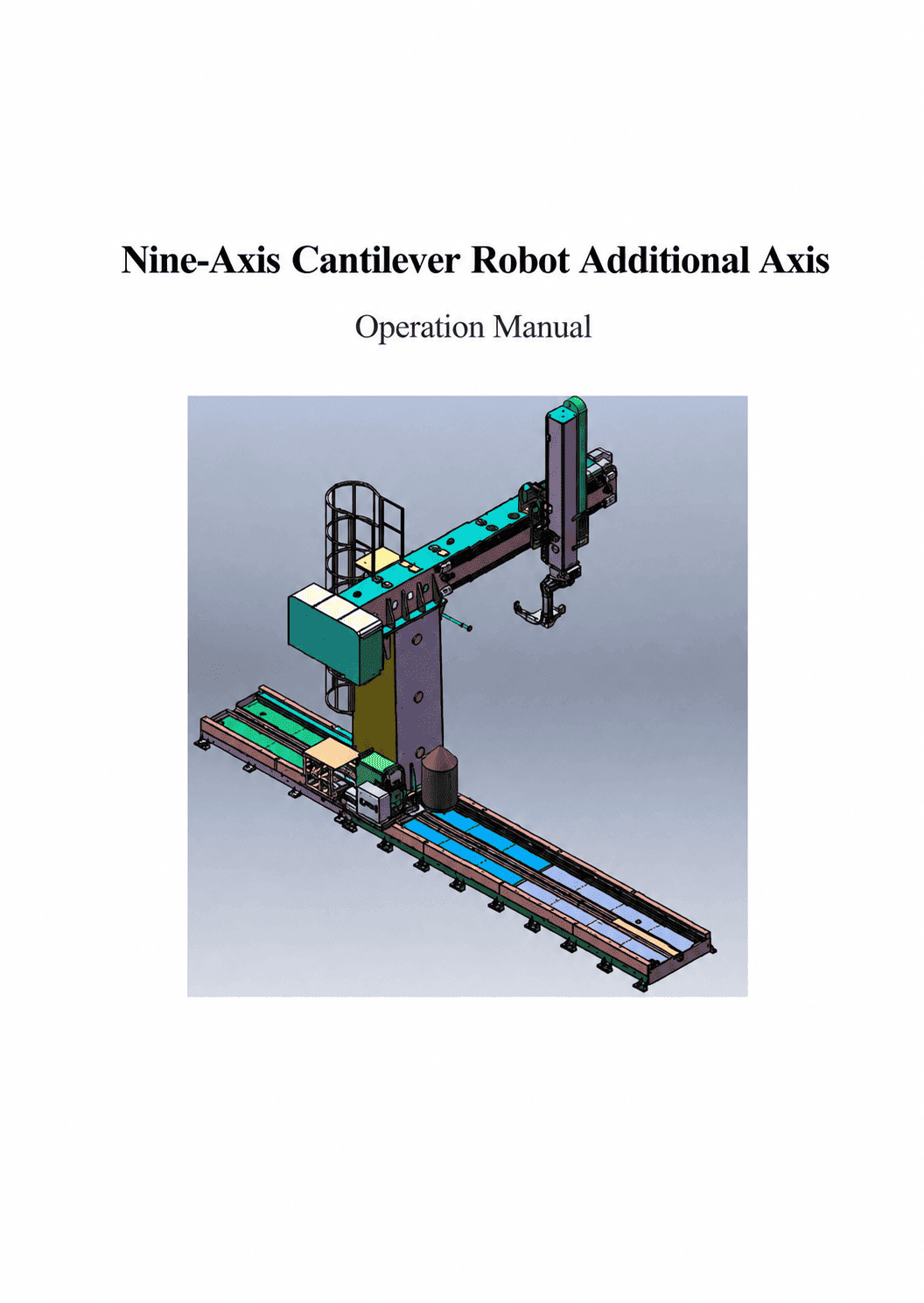

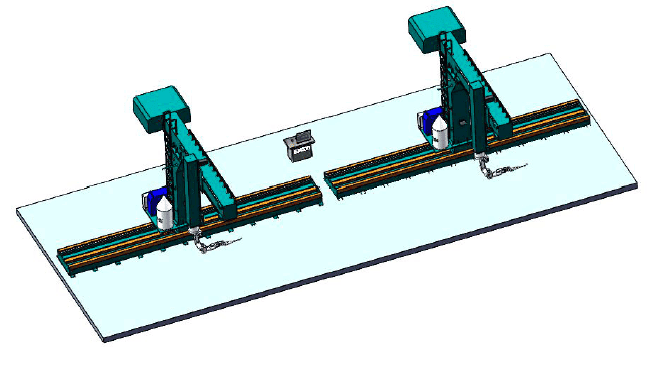

When I review a nine-axis cantilever workstation manual or power table, I do not treat the numbers as universal engineering standards. I treat them as a checklist for one equipment configuration. The final values must be confirmed by the supplier, the machine configuration, and qualified local engineers. This is especially important for overseas projects because power standards, breaker rules, cable rules, and safety codes vary by country.

The equipment documents may list overall dimensions, rail length, cantilever travel, machine height, control cabinet size, input voltage, rated power, working current, breaker recommendation, gas needs, cooling needs, and air supply needs if the system uses pneumatic parts. Each number should answer a customer question. “Can my workshop fit this system?” “Can my floor hold and level the rail?” “Can my electrician prepare the correct power?” “Can my crane load parts without entering the robot danger area?” “Can my operator reach the fixture safely?”

For example, some robotic welding stations use three-phase industrial power, often around 380V in China-based equipment configurations. Some projects may need a breaker in a range such as 63A, 100A, or higher based on robot, welding power source, laser power, chiller, and auxiliary equipment. I do not ask the customer to wire this by himself. I ask him to let a qualified electrician confirm the local supply and protection plan before shipment.

Checklist Item	What I Ask the Customer to Confirm	Why It Matters
Overall footprint	Length, width, height, and maintenance space.	The station must fit with safe access.
Workshop height	Beam height, robot movement, crane path.	The robot and workpiece must not collide.
Floor condition	Flatness, strength, anchor area, rail line.	The external axes need stable support.
Power supply	Voltage, phase, capacity, grounding, cabinet location.	Wrong power planning delays installation.
Breaker capacity	Local code and equipment table confirmation.	The system needs safe protection.
Gas supply	Shielding gas type, pressure, flow, storage.	Welding quality depends on stable gas.
Cooling system	Chiller space, water quality, ventilation.	Laser and welding equipment need cooling.
Safety area	Fence, door lock, light curtain, signs.	Operators need controlled access.
Loading method	Crane, forklift, manual handling, positioners.	Loading can decide real cycle time.

I Check Space as a Production Flow Issue

Many buyers only ask if the workstation can fit in the building. I ask a different question. I ask if the workstation can fit into the production flow. A large station needs clear material movement. Raw parts must enter. Finished parts must leave. Welders or operators must load fixtures. The crane or forklift must move without blocking other production lines.

A nine-axis cantilever system can be long. The ground rail and cantilever travel may take several meters. The robot also needs a working envelope. The safety fence or safe zone adds more space. The control cabinets, welding power source, laser source, chiller, gas bottles or gas pipeline, and maintenance access add even more space. If the factory only measures the rail and beam, the layout may fail.

I often ask customers to send a simple workshop layout. It does not need to be beautiful. A hand sketch can help if it shows walls, doors, columns, cranes, power cabinets, material paths, and nearby machines. I also ask for photos and short videos. These help me see what is not on the drawing. I may notice a low beam, a narrow door, a crane hook path, a storage area, or a floor drain near the planned rail.

I Check Power Supply Without Giving Wiring Instructions

I talk about power early because power problems are expensive after the machine arrives. I do not give detailed electrical wiring instructions. I am not the customer’s local electrician. I only point to the equipment document and ask the customer to have a qualified electrician confirm the supply.

A robotic welding workstation can include several power users. The robot controller needs power. The welding machine needs power. A laser system needs a laser source and a chiller. A wire feeder, air compressor, fume extractor, lighting, sensors, and safety devices may also need power. The total load is not only the robot arm.

The manual or power table may show rated power, working current, and breaker recommendations for a specific configuration. These values guide preparation. They do not replace local electrical design. The customer should confirm voltage, frequency, phase, grounding, cabinet protection, breaker capacity, and cable route based on local rules.

I also ask about power stability. Some factories have voltage drops when large machines start. Some workshops share power with plasma cutting, bending machines, or large cranes. If power is unstable, welding quality and machine alarms may become a problem. This is why I prefer to discuss power before shipment, not when the installation engineer is waiting on site.

Power-Related Question	Who Should Confirm It	My Reason
Is the voltage and phase suitable?	Qualified electrician and supplier.	The machine must match the local supply.
Is the breaker capacity enough?	Qualified electrician.	Protection must be safe and correct.
Is grounding prepared?	Qualified electrician.	Control and safety depend on it.
Is there enough spare capacity?	Factory electrical manager.	Other machines may share the line.
Is the cabinet location planned?	Factory and supplier.	Cable route and maintenance access matter.
Is the chiller power included?	Supplier and electrician.	Laser systems need cooling power.

I Prepare Fixtures Before I Expect Stable Welding

Fixtures are often less exciting than robots. But fixtures decide whether robotic welding feels easy or painful. A human welder can press a part, adjust a gap, change angle, and continue welding. A robot will follow its plan. If the part is not in the right place, the weld will not be in the right place.

For robotic welding, the fixture should hold the part in a stable position. It should expose the seam. It should allow the welding head to approach with the correct angle. It should reduce deformation if possible. It should allow fast loading and unloading. It should also be safe for the operator.

If the project uses 3D vision scanning, the fixture still matters. The scanner can find a seam within a certain range and condition, but it cannot make a loose part stable during welding. It cannot remove heavy distortion. It cannot always see a hidden seam. The fixture and scanning process must work together.

I encourage customers to test fixture thinking before the machine ships. They can choose a few main parts and mark clamping points. They can check if tack welds are needed. They can check if the seam is blocked by clamps. They can check if the part bends after the first weld. This small preparation saves large time during debugging.

I Treat Welding Parameters as a Project Task

Some customers think the robot arrives with perfect welding parameters for every part. I understand why they think this. Many videos show beautiful welds. But real production has different materials, surface conditions, gaps, thicknesses, and quality standards. A welding parameter set is not only a number in the machine. It is a process decision.

For laser welding, I look at laser power, welding speed, focal position, shielding gas, wire feeding if used, wobble setting if used, and joint preparation. For MIG welding, I look at current, voltage, wire feed speed, travel speed, torch angle, stick-out, gas, and pass plan. For TIG welding, I look at current, arc length, filler use, gas, and speed. The robot can repeat parameters very well, but the parameters must be suitable first.

I also ask about inspection standards. Does the customer need visual quality only? Does the part need leak testing? Does the part need full penetration? Does the factory cut and polish sample welds? Does the buyer require documentation? The answer changes the debugging plan.

Process Preparation	What I Ask For	Why It Helps
Sample materials	Real plates, tubes, or parts.	Testing should match production.
Thickness range	Minimum and maximum thickness.	Parameter windows are different.
Joint drawings	Groove, fillet, lap, butt, corner.	The welding path depends on joint type.
Quality standard	Appearance, strength, leak, penetration.	Debugging needs a target.
Surface condition	Oil, rust, coating, oxide, cutting quality.	Surface affects weld stability.
Gas plan	Gas type, purity, flow, supply stability.	Shielding affects weld quality.

I Plan Training Before the Operator Touches the System

A robotic welding workstation needs trained people. The operator does not need to become a senior robot programmer in every case, especially when the system has automatic path generation. But the operator must understand how to load parts, select tasks, start the system, respond to alarms, clean consumables, check gas, and follow safety rules.

I like to separate training into three levels. The first level is daily operation. The operator learns normal start, stop, loading, unloading, program selection, and safety. The second level is process adjustment. A welding technician learns how parameters affect weld quality. The third level is maintenance and troubleshooting. A maintenance person learns daily checks, lubrication, basic alarm handling, and when to contact support.

Remote training can help before installation. On-site training is still important after the machine is installed. Videos, manuals, and online meetings help the team understand the system. But the real learning happens when the operator loads the customer’s own part and sees how the robot moves. I tell customers to choose operators early. If the people who attend training leave the project later, the factory loses knowledge.

I Check Production Workflow and ROI with Real Cycle Time

Return on investment is important. I know many customers must justify the machine to the owner or board. But I do not calculate ROI only from welding speed. Real cycle time includes loading, clamping, scanning, path generation, welding, cooling if needed, unloading, inspection, and rework if any.

A robot may weld faster than a human on long stable seams. But if the operator spends too much time clamping parts, the total cycle time may not improve enough. If the crane is shared with another line, the station may wait. If the part needs heavy grinding after welding, the saving may be lower. If the fixture is designed well, the station may run much better.

I ask customers to provide current production data. How many workers weld this part now? How many pieces per shift? How many meters of weld per part? How much rework happens? How much grinding happens? How many shifts run per day? What is the labor cost? What is the delivery pressure? These questions make ROI more realistic.

Time Element	Manual Welding	Robotic Workstation	What I Watch
Part loading	Often flexible but labor-heavy.	Needs planned method.	Crane and fixture time.
Fit-up	Welder may adjust by hand.	Must be controlled before welding.	Gap and repeatability.
Path setup	Human decides during welding.	Robot needs program or scan result.	Part variation.
Welding	Depends on welder skill and fatigue.	Can be stable when process is ready.	Seam length and access.
Unloading	Often simple.	Must avoid collision and waiting.	Finished part movement.
Inspection	May catch human variation.	Must confirm robot consistency.	Standard and records.

I Keep Safety in the Main Plan

A large robotic welding system must be treated as industrial equipment, not as a tool that people can stand beside casually. The robot can move fast. The external axes can move heavy structures. Laser welding also brings laser safety needs. MIG and TIG welding bring arc light, fumes, heat, and spatter. A safe layout is not optional.

I ask customers to plan fencing, safety doors, emergency stops, warning lights, safety interlocks, fume extraction, laser protection if needed, and safe loading procedures. The exact safety design must follow local standards and supplier guidance. I avoid giving the customer a simple “one size fits all” answer because each workshop is different.

Safety also affects production efficiency. If the operator must enter the danger area often, the system stops often. If loading is planned outside the robot’s active area, the workflow can be smoother. If the fixture is designed for easy access, operators work faster and safer.

I also remind customers to train visitors and managers. In many factories, managers like to stand close to new machines during trials. This is not safe. A robotic workstation should have clear rules from the first day.

I Set the Right Expectation Before Delivery

Before delivery, I like to make expectations clear. The workstation is a powerful tool. It can help a factory move from manual welding toward stable and more controlled production. It can help reduce the need for skilled manual welding on suitable seams. It can improve repeatability when the part, process, and fixture are ready. But it is still a project.

The customer should prepare sample parts. The customer should prepare the site. The customer should confirm power. The customer should choose operators. The customer should support fixture design. The customer should provide welding quality targets. The supplier should provide the workstation, documents, training, remote support, and on-site support when included. Both sides need to work together.

In customer discussions, I often say one simple thing. “The robot is only one worker in the new system.” The other workers are the fixture, the power supply, the welding process, the operator, the maintenance plan, and the production flow. If these workers do not cooperate, the robot cannot carry the whole factory alone.

Conclusion

I choose a nine-axis cantilever robotic welding workstation only after I confirm the part, process, site, power, training, safety, and workflow are ready.
