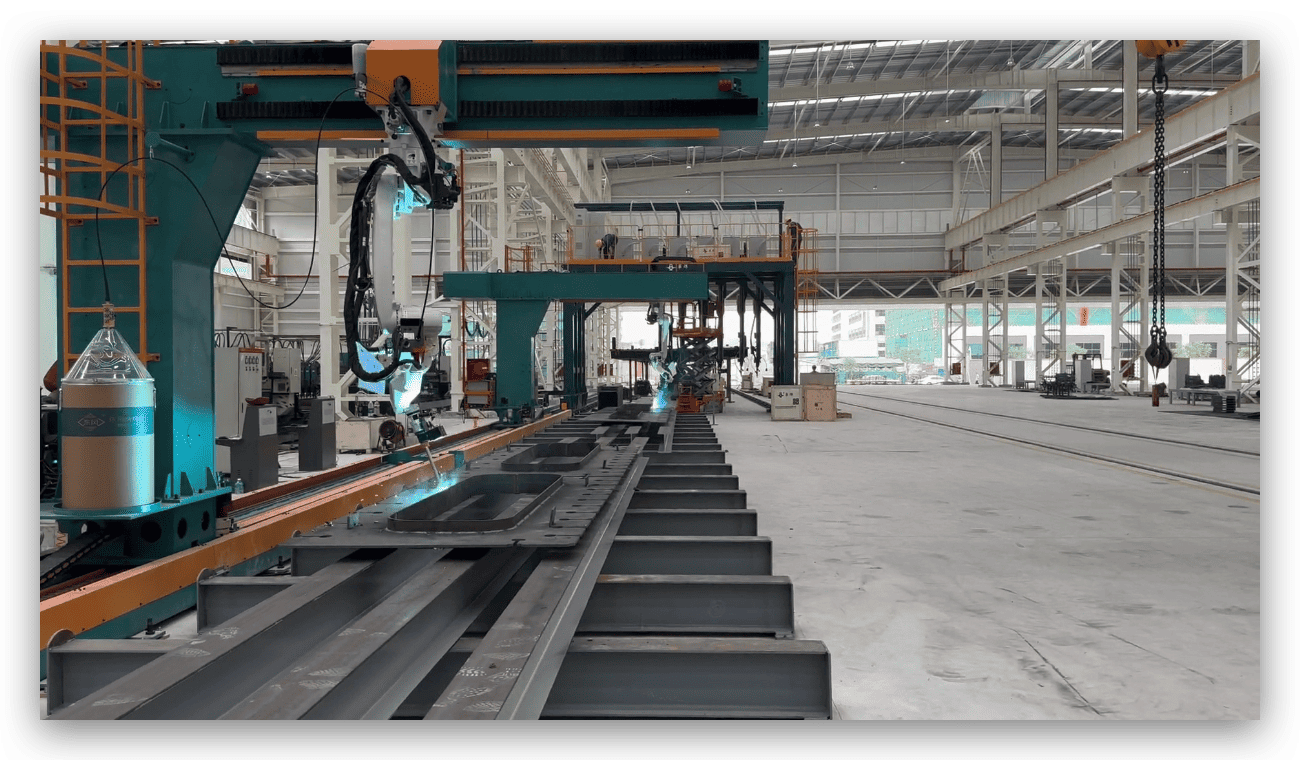

Manual welding of bridge diaphragm reinforcement rings can slow production, increase rework, and make quality hard to control. I see this problem often in non-standard steel fabrication.
Programming-free intelligent welding solves this by using a 3D camera to scan the workpiece, identify the weld seam, build the welding path, and guide the robot to weld without manual programming or teaching.
I have met many steel structure factories that want automation, but they feel blocked by one problem. Their parts are not always the same. A bridge diaphragm reinforcement ring may look simple from a distance, but the real part often has size changes, position changes, welding gaps, and small assembly errors. A normal robot welding system needs teaching or programming. That takes time. It also needs a skilled robot operator. For high-mix, low-volume production, this becomes a serious barrier.
This is why I focus on programming-free intelligent welding. I want the operator to place the workpiece, let the 3D camera scan it, and let the system generate the path. The operator does not need to write code. The operator does not need to move the robot point by point. The workpiece does not need to be fixed in one perfect position every time. This makes the robotic welding system much closer to real workshop needs.
For bridge diaphragm reinforcement rings, I see this as a practical answer. It uses reverse modeling, 3D scanning, automatic seam recognition, and intelligent path planning. It can work with a robotic welding machine, an industrial welding robot, or a robotic arc welding system based on the welding process and material thickness. The main idea is simple. The system should adapt to the part, not force the worker to adapt to the robot.

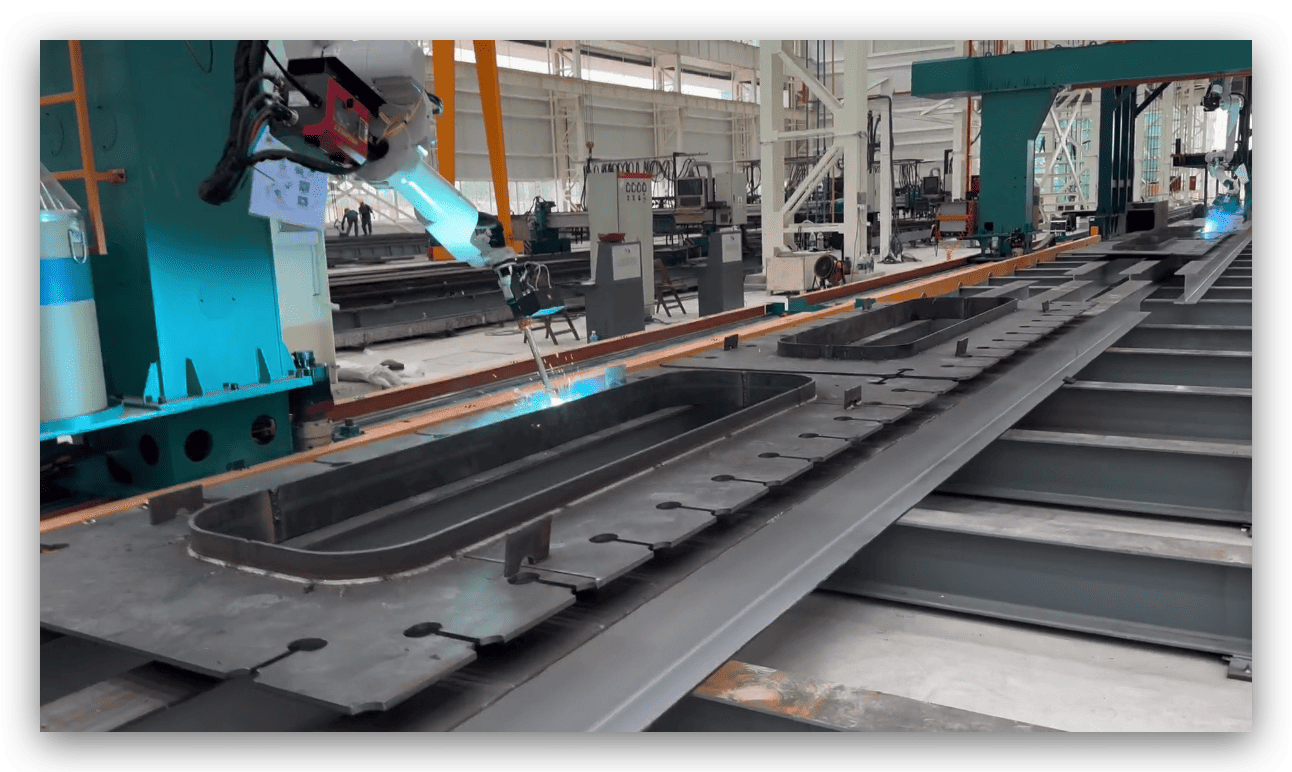

How Does a 3D Camera Automatically Identify the Weld Seam and Start Welding After Scanning?
If the robot cannot find the weld seam by itself, the factory still depends on skilled programming. I think this is where many automation projects fail.
A 3D camera scans the workpiece, builds shape data, finds the seam position, and sends the welding path to the robot. The operator only needs to load the part, start scanning, confirm the result, and begin welding.
I Start From the Real Shape, Not the Drawing
In many workshops, the drawing looks clean. The real workpiece is different. A bridge diaphragm reinforcement ring may be cut, bent, assembled, and tacked by different workers. Each step adds a small change. These small changes matter when a robot starts welding. A traditional robot welding machine follows the path that was taught before. If the real seam moves, the weld may be off position.
This is why I use 3D camera scanning. The camera does not guess. It looks at the real part. It captures the surface, edge, height, gap, and position. The software then uses this data to identify the weld seam. In bridge diaphragm reinforcement ring welding, the system can scan the ring area, locate the joint line, and build a new welding path for that actual part.
| Real Workshop Problem | 3D Camera Function | Result I Want |
|---|---|---|
| The part is not placed in the exact same position | The camera scans the real position | The robot adjusts the welding path |
| The reinforcement ring has small shape changes | The system builds local 3D data | The path follows the actual seam |
| The operator does not know robot programming | The software generates the path | The operator can run production |
| The fixture is not very complex | The system reads the workpiece shape | The factory saves fixture cost |
I Use Reverse Modeling to Reduce Manual Work
Reverse modeling sounds complex, but the value is simple. I do not need to start from a perfect digital model only. I can start from the physical part. The 3D camera scans the workpiece and creates useful shape information. The software then extracts the welding feature. For bridge diaphragm reinforcement rings, this may include circular seams, fillet welds, edge joints, and local connection areas.
This method helps when the customer has many part types. Some factories produce bridge components in small batches. Some only weld a certain reinforcement ring a few times per month. In this situation, manual programming is not efficient. A programming-free robotic welding system can scan each workpiece and generate the path. This makes automation useful even when the part is not mass-produced.
I often explain it this way. A normal robot repeats memory. An intelligent robot welding system sees before it moves. That one change makes the equipment easier for non-standard structures.
I Keep the Operator Role Simple
I do not want the operator to become a software engineer. I want the operator to follow a clear work process.
| Step | Operator Action | System Action |
|---|---|---|
| 1 | Place the bridge diaphragm part on the table | The system waits for scan command |
| 2 | Start 3D scanning | The camera captures workpiece data |
| 3 | Check the seam result on screen | The software marks the weld seam |
| 4 | Confirm the welding path | The robot receives path data |
| 5 | Start welding | The robot welds along the real seam |
This kind of process is important. A steel fabrication factory may not have many robot engineers. The team may have experienced welders, fitters, and production workers. They understand metal. They understand weld quality. They may not understand robot code. So I believe a good automated welding robot should protect their experience and reduce the need for programming.
I Match the Welding Process to the Part
The 3D camera and software solve the path problem. The welding process solves the joint problem. For thick bridge structures, a robotic arc welding system is often used. For certain carbon steel structures, a MIG welding robot or an automatic MIG welding robot can be a practical choice. If the production needs stable arc welding with repeatable bead shape, a robotic MIG welding system can work well.
For other parts, laser welding or hybrid solutions may also be considered. I do not choose the process by name only. I look at the material, thickness, gap condition, weld size, production speed, and inspection requirement. A bridge diaphragm reinforcement ring may need strong welds and stable penetration. So I first check the welding standard, then I choose the power source, wire, gas, robot payload, torch angle, and seam tracking method.
The key point is this. The robot must know where to weld, and the welding process must be suitable for the joint. When both parts are right, the result becomes stable.

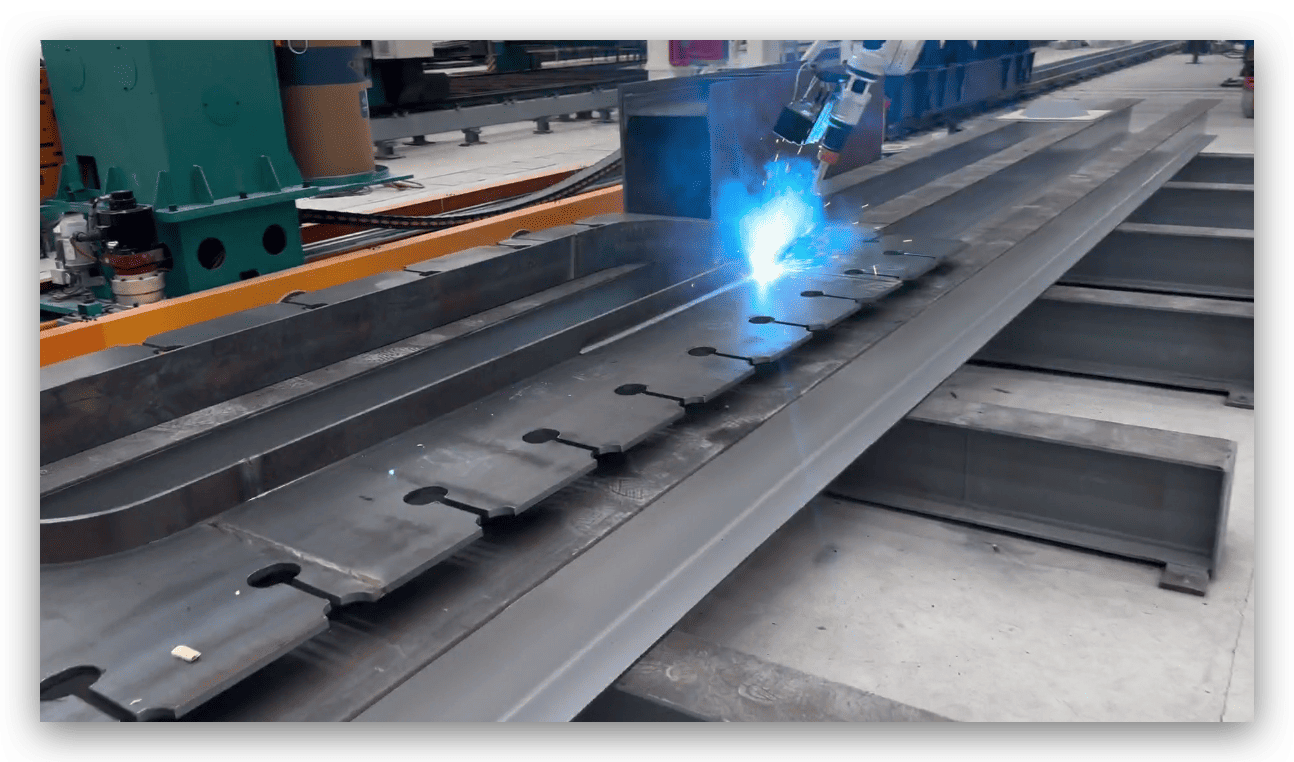

Why Does Programming-Free Welding Fit Non-Standard Structural Parts?
Many factories buy automation for standard parts first. I understand that choice. But I also see the biggest pain in non-standard structures.
Programming-free welding fits non-standard structural parts because it removes manual teaching, reduces fixture dependence, and lets the robot adapt to part position and shape changes through scanning and automatic path generation.
I Know Non-Standard Parts Do Not Wait for Perfect Conditions
In steel structure fabrication, the workpiece is often large, heavy, and not easy to position. Bridge diaphragm plates and reinforcement rings may come from different cutting batches. The assembly may be slightly different. The tack weld may pull the part. The gap may change. If I use a traditional robot welding machine, I may need a strong fixture and repeated teaching. That can be expensive. It can also reduce flexibility.
I prefer a system that accepts real production conditions. The operator can place the part in a reasonable position. The 3D camera scans it. The software finds the seam. The robot welds based on the new data. This method is not magic. It is a practical way to reduce the gap between automation and workshop reality.
| Traditional Robot Teaching | Programming-Free Intelligent Welding |
|---|---|
| The operator teaches points one by one | The camera scans and identifies the seam |
| The part must be placed very accurately | The system can correct position changes |
| New parts need new programming time | New parts can be scanned and processed faster |
| Skilled robot programmers are needed | Normal trained operators can run the system |
| Complex fixtures are often required | Simple positioning is often enough |
I Do Not Remove the Welder’s Knowledge
Some customers worry that automation will replace skilled welders in a bad way. I see it differently. I think the best robotic welding system uses the welder’s knowledge in a better place. The welder can set the welding process. The welder can check bead shape. The welder can judge penetration, undercut, spatter, and heat input. The robot then handles the repeated motion.
This is useful for bridge diaphragm reinforcement rings. The seam path may be long. The posture may be tiring. Manual welding may depend heavily on the worker’s physical condition. If the welder is tired, the bead may change. If the welder changes, the result may change. A robot welding system can keep the torch angle, travel speed, arc length, and weaving pattern more stable.
For a MIG welding robot, stable wire feeding and stable torch motion are very important. For an automatic MIG welding robot, the path accuracy also matters. If the 3D camera gives the correct path, the welding process can become much more repeatable. The operator still controls the standard. The robot handles the repeat work.
I Care About the Whole Workflow
A robot is not only a robot arm. A useful industrial welding robot project includes scanning, positioning, safety, welding power, torch system, software, robot motion, fume control, and training. If one part is ignored, the project may not reach the expected result.
I usually check these points before I recommend a solution:
| Check Point | Why I Check It | Example for Bridge Diaphragm Reinforcement Ring |
|---|---|---|
| Material | It affects welding process and parameters | Carbon steel may use MIG/MAG process |
| Thickness | It affects power and weld pass design | Thick plates may need multi-pass welding |
| Gap | It affects bead shape and penetration | Large gaps may need parameter adjustment |
| Part size | It affects robot reach and table design | Large plates may need a long rail or positioner |
| Batch type | It affects automation value | High-mix work benefits from programming-free scanning |
| Quality requirement | It affects inspection and process control | Bridge parts may need stable strength and appearance |
This is why I do not sell only a robot arm. I sell a complete welding method. In some cases, the answer is a robotic MIG welding system. In other cases, the answer is a robotic arc welding system with 3D vision and multi-layer planning. In some lighter applications, a laser solution may be better. I only feel confident when the solution matches the workpiece.
I Make Automation Easier to Start
Many small and medium workshops want automation, but they are afraid of the first step. They worry about programming. They worry about training. They worry about downtime. They worry about after-sales support. I understand that. I have seen customers who bought a robot, but the robot stayed idle because nobody wanted to program it.
Programming-free welding reduces this risk. The operator uses a screen-based process. The 3D scan gives visual feedback. The system shows the seam. The operator confirms the path. This makes the first step easier. It also makes daily production less dependent on one expert.
I still provide training. I still explain safety. I still teach parameter setup. I still help the customer build welding procedures. But I do not want the customer to feel trapped by programming. A good robot welding machine should help the factory produce parts, not create another technical burden.
I See Real Value in Flexible Placement
For non-standard structural parts, flexible placement is more than a convenience. It is a cost saver. A heavy bridge diaphragm may not be easy to clamp in a perfect fixture. If the fixture must be very accurate, it can become large, expensive, and slow to adjust. With 3D scanning, the system can accept reasonable variation. It can find the seam after the part is placed.
This does not mean there is no need for any fixture. The part still needs to be stable. The weld area must be visible to the camera and torch. The robot must have access. But the fixture can often be simpler. This helps factories that produce many part sizes.
I like this approach because it respects the nature of steel fabrication. The work is heavy. The parts change. The schedule is tight. The people need tools that help them move faster without losing control.

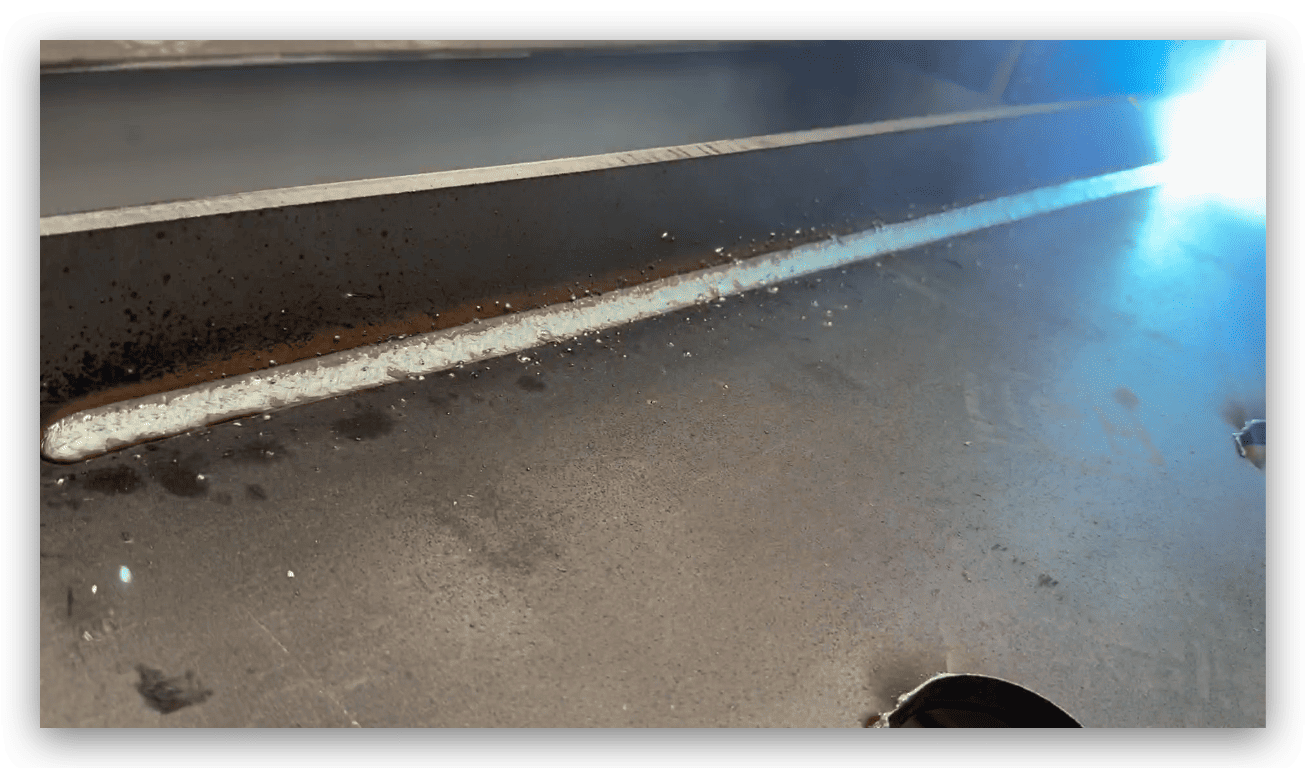

How Can One Operator Manage Multiple Machines and Improve Welding Stability?
Labor pressure is real in many welding workshops. Skilled welders are hard to find, and manual quality can change from worker to worker.
One operator can manage multiple intelligent welding stations because the robot handles scanning, path generation, and welding motion. The operator loads parts, checks results, changes consumables, and monitors several machines at the same time.
I Want the Operator to Manage Production, Not Fight the Robot
In a traditional manual welding line, one welder usually handles one job at a time. The welder positions the body, controls the torch, watches the molten pool, and manages the weld speed. This is skilled work. It is also tiring work. When the seam is long, the worker may slow down. When the position is difficult, the quality may change.
With an automatic welding robot, the job changes. The robot handles the torch movement. The operator prepares the next part, checks the scan, starts welding, and monitors the result. If the system is stable, one operator can manage more than one station. This is not about rushing people. It is about using people in a smarter way.
For bridge diaphragm reinforcement rings, this can be very useful. The weld path may repeat across different parts, but the exact position may change. The 3D vision system handles the position change. The operator does not need to spend time teaching every part. So the operator can focus on loading, inspection, and production rhythm.
I Look at Efficiency in a Practical Way
Some people ask me how much faster a robotic welding system can be. I do not give one fixed answer. The result depends on the seam length, weld size, part handling time, welding process, and current manual speed. But I can explain where the improvement comes from.
| Efficiency Factor | Manual Welding | Intelligent Robot Welding |
|---|---|---|
| Weld speed | Depends on each welder | More stable after parameters are set |
| Arc time | Often reduced by fatigue and repositioning | Higher when loading and scanning are organized |
| Quality consistency | Changes by worker and shift | More repeatable bead shape and motion |
| Rework | Can be high if fit-up and posture are poor | Can be reduced with stable path and parameters |
| Labor use | One welder does one job | One operator can watch several stations |
The biggest gain is not only speed. The bigger gain is control. If the weld quality is stable, the factory spends less time repairing. If the production rhythm is stable, the manager can plan delivery better. If the dependence on a few top welders is lower, the factory has less risk.
I Care About Quality Stability First
I never tell customers to buy a robot only because it is fast. Speed without quality is not useful. For bridge components, weld quality matters. Penetration, fusion, bead size, and defect control are important. A robotic arc welding system can help because it repeats the same motion. A robotic MIG welding system can also help because it controls travel speed and torch angle with high consistency.
The 3D camera adds another layer of stability. It helps the robot start from the correct seam position. Without that, even a high-quality robot may weld the wrong line if the part moves. With scanning, the system has a better chance to follow the real joint.
I also pay attention to welding parameters. A good path is not enough. The current, voltage, wire feed speed, travel speed, torch angle, stick-out, gas flow, and weaving must match the joint. If the customer needs full penetration or deep fusion, I test it. I do not want to promise by words only. I prefer sample welding, parameter records, and clear acceptance standards.
I Build Trust Through Testing
When a customer is unsure, I suggest a sample test. The customer can send drawings, photos, videos, or sample parts. I can study the part before making a proposal. If needed, I can test scanning and welding in my workshop. This helps both sides. The customer can see if the system can identify the seam. I can see if the joint is suitable for automatic welding.
A good test should answer practical questions:
| Test Question | Why It Matters |
|---|---|
| Can the 3D camera see the weld seam clearly? | The system needs good data to generate the path |
| Can the robot reach all welding positions? | Robot reach and torch access must be checked |
| Can the process meet weld size and penetration needs? | Welding quality must match the standard |
| Can the operator process be simple enough? | Daily use must be realistic |
| Can the cycle time support production goals? | ROI depends on real output |
I believe this process builds confidence. The customer does not need to rely only on a brochure. The customer can see a real result. For non-standard parts, this is very important. A bridge diaphragm reinforcement ring may have special details. I want to understand those details before I say yes.
I Think ROI Comes From More Than Labor Saving
Many buyers first calculate labor saving. That is fair. If one operator can manage multiple machines, the labor cost per part can go down. But I think ROI also comes from other places. Stable quality reduces rework. Faster production reduces delivery pressure. Less dependence on rare skilled welders reduces hiring risk. Better process records improve factory management.
For a factory that produces bridge structures, tanks, pipe parts, or heavy equipment, this can be important. The welding work often sits on the critical path. If welding is slow, the next process waits. If welding quality is not stable, inspection and repair consume time. An automated welding robot can help build a more predictable production flow.
I also compare price with European brands when customers ask. I know many customers want strong performance, but they also need a realistic budget. As a Chinese manufacturer with more than 10 years in the laser and welding automation field, I focus on practical design, competitive pricing, and support. I provide remote help, on-site installation when needed, and operator training. I want customers to feel safe after the machine arrives, not only before payment.
I Use the Right Robot System for the Right Job
The words can be confusing. Some customers say robotic welding machine. Some say robot welding machine. Some say industrial welding robot. Some say automatic welding robot or automated welding robot. I do not worry too much about the name. I care about the real function.
For bridge diaphragm reinforcement rings, I normally check whether the customer needs arc welding, MIG welding, laser welding, or another process. If the part needs MIG/MAG welding, I may suggest a MIG welding robot with 3D vision. If the production needs a complete cell, I may call it a robotic MIG welding system. If the welding includes arc process control, robot motion, safety guarding, and vision guidance, I may describe it as a robotic arc welding system.
The most important point is the same. The system should scan, identify, plan, and weld. It should reduce programming. It should handle non-standard parts. It should improve stability. It should be easy enough for the workshop team to use every day.
I Want Customers to Buy With a Clear Mind
I know a welding automation purchase is not small. The customer may worry about whether the machine can handle their parts. The customer may worry about training. The customer may worry about spare parts and service. I think these worries are normal. I also think they should be answered before the order.
This is why I like to discuss the workpiece first. I ask for part size, material, thickness, weld type, annual quantity, current welding method, current production problems, and quality requirements. I ask for photos and videos. I ask how the part is loaded and moved. I ask what the operator skill level is. These details help me avoid a wrong proposal.
If the part is suitable, I explain the system clearly. I show the process from scanning to welding. I explain what the operator does. I explain what the robot does. I explain the limits too. For example, the camera needs to see the seam. The part must be stable during welding. Extreme gaps may need fit-up improvement. Very thick welds may need multi-pass planning. I believe honest limits make the final solution stronger.
Conclusion
I use programming-free 3D vision welding to make non-standard bridge reinforcement ring welding simpler, more stable, and easier for real workshops to adopt.
