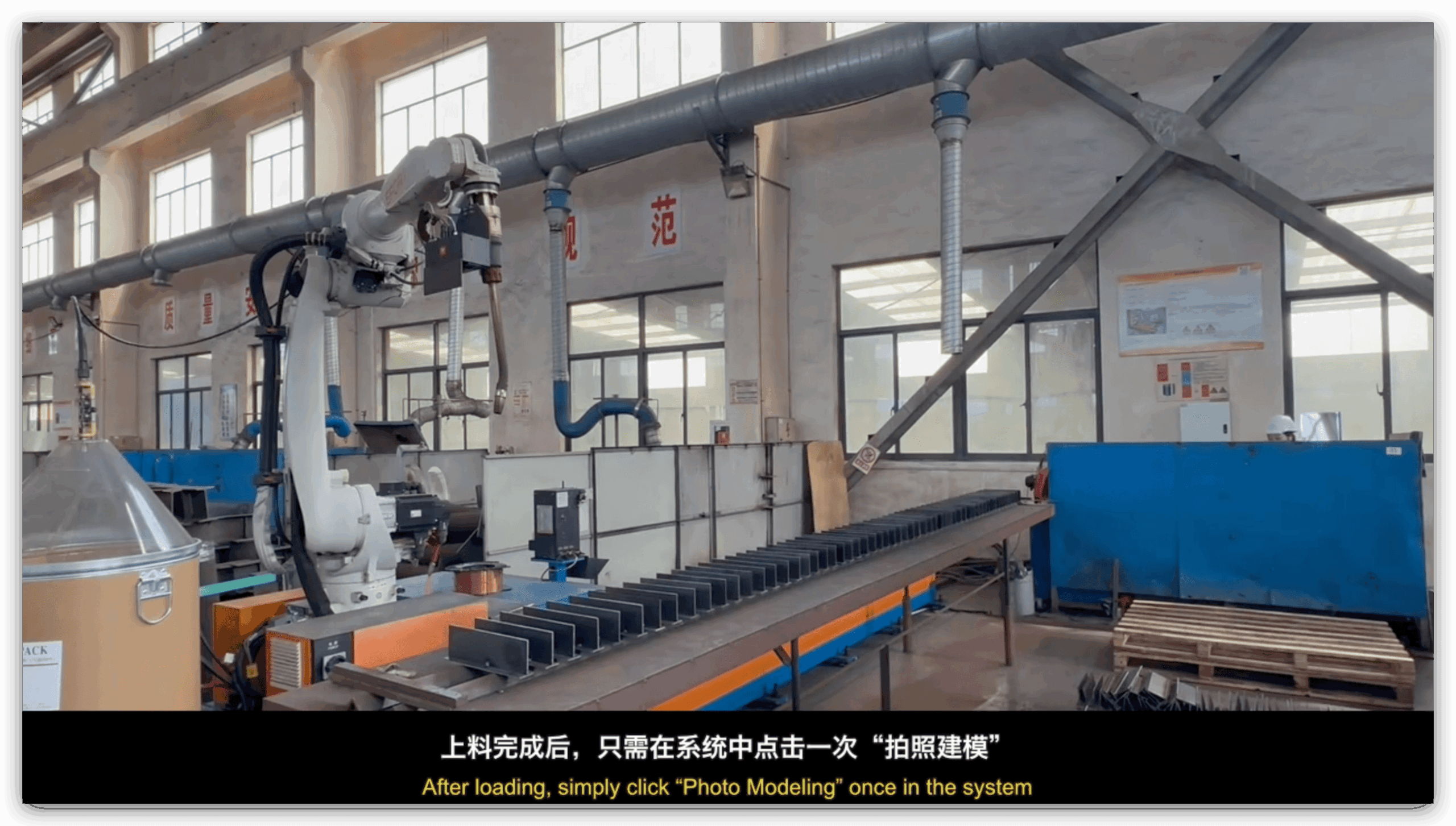

Intelligent Robotic Welding: From Digital Twin to Process Execution — What Does It Really Take?

Manufacturers evaluating intelligent robotic welding systems tend to focus on the obvious questions first: Can the robot find the weld seam? Can it generate its own programs? How much faster will production run? Will it reduce dependence on skilled welders? These are reasonable questions — but intelligent robotic welding demands far more than capable hardware.

Intelligent robotic welding is a complete production system upgrade involving people, data, welding process knowledge, and equipment working together. A robot that can move is not the same as a robot that can weld reliably. True automation success depends on three things happening simultaneously: a results-oriented team that coordinates across functions, a functioning data loop connecting digital models to physical components, and robot kinematics that actually satisfy the welding process requirements for each specific joint. Without all three, equipment runs but production does not stabilize.

Understanding why these three pillars matter — and how they interact — is the difference between a welding robot demonstration and a production line that runs reliably every day. The sections below work through each layer in detail, from digital twin fundamentals to the very practical question of when a skilled human welder still needs to complete the root pass.

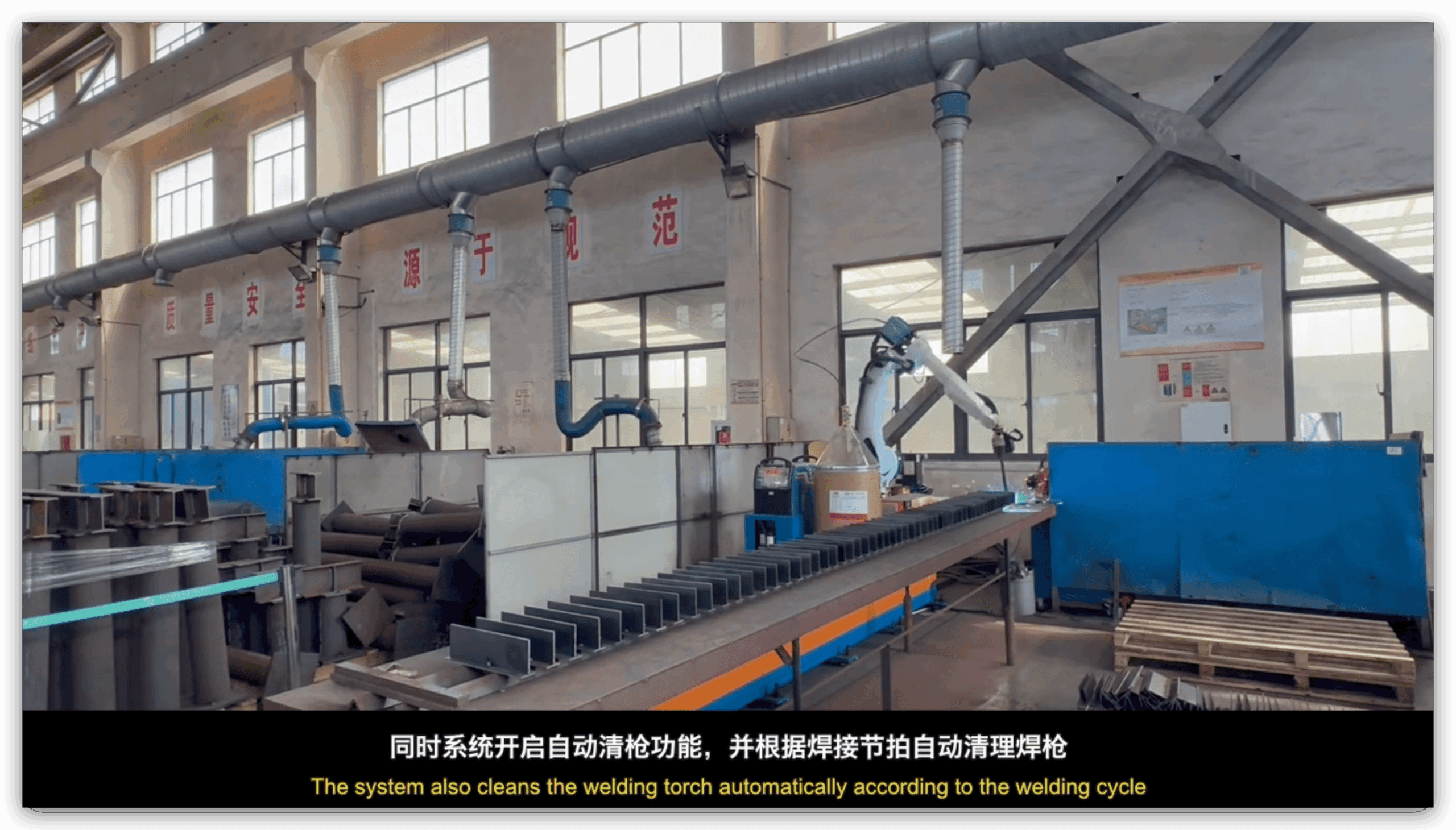

From 3D Vision and Digital Twin to Autonomous Robot Path Generation — How Does the Loop Actually Close?

Most discussions of intelligent robotic welding start with the robot arm. That is the wrong place to start. Before the robot moves, someone or something has to tell it where the weld joint is, what geometry it follows, what the joint fit-up actually looks like on this specific part — not the theoretical part from the drawing — and what welding parameters the joint requires. Solving that problem is where digital twins and 3D vision do their real work.

A digital twin in robotic welding creates a bidirectional link between a digital model and a physical component. In the forward direction, a 3D CAD model defines joint locations and generates a theoretical robot path. In the reverse direction, a 3D vision system scans the actual part, captures its real geometry as point cloud data, and uses that data to correct the theoretical path before the robot strikes an arc. The loop closes when the welding result feeds back into the system to improve the next cycle.

This sounds clean on a diagram. In practice, the path from CAD model to arc-on involves a chain of decisions that each carry real consequences if they go wrong.

Forward Path: From Model to Motion

The forward direction starts with a 3D model — typically a CAD file describing part geometry, weld joint locations, and nominal dimensions. From this model, offline programming software can simulate robot motion, check for reach and collision, and generate a preliminary path without anyone teaching the robot point by point on the shop floor.

Offline programming has real advantages:

• Reduced teaching time on the production floor. Programming happens at a workstation, not at the robot. The machine keeps running while the next program is being prepared.
• Collision checking before the robot moves. Software can flag configurations where the torch would hit a fixture or a part feature before metal gets scratched.
• Reusable programs for recurring part families. Once a program exists for a family of similar components, new members of that family require only parameter adjustments.

The limitation of offline programming alone is accuracy. A part that matches its CAD file perfectly is uncommon in real fabrication. Cut tolerances, fit-up gaps, tack weld distortion, fixture wear, and thermal effects during assembly all shift the actual joint away from its theoretical location. If the robot executes the theoretical coordinates, the torch drifts off the joint.

Reverse Path: Scanning the Real Part

This is where 3D vision enters the system. A structured light scanner, line laser, or stereo camera system captures the surface geometry of the actual component sitting in the fixture. The result is a point cloud — a dense set of measured coordinates describing what is really there, not what the drawing says should be there.

From this point cloud, the system performs several tasks:

1. Feature extraction. Algorithms identify joint geometry — V-grooves, fillet joints, T-joints, butt joints — from the shape of the point cloud data.
2. Seam localization. The system determines the actual position and orientation of each weld joint in the robot's coordinate frame.
3. Path correction. Deviations between the theoretical model and the measured reality are calculated. The robot path is adjusted to follow the real joint.
4. Parameter matching. If the system includes a process database, it can retrieve welding parameters — current, voltage, travel speed, weave pattern — matched to the identified joint type, material, and thickness.

The quality of this process depends on several factors that buyers should evaluate carefully before committing to a system:

Closing the Loop: Data That Feeds Forward

The digital twin concept becomes most valuable when welding results flow back into the system rather than disappearing after each part. Every completed weld represents information: the actual path executed, the parameters applied, any arc interruptions, post-weld inspection results if available.

When this data is captured and retained, it enables several things over time:

• Process database refinement. Parameter sets that consistently produce acceptable welds for a given joint type and material combination become the default recommendation for future similar joints.
• Algorithm improvement. With enough labeled examples of successful and unsuccessful path corrections, machine learning approaches can improve seam recognition accuracy — particularly for complex joint geometries or inconsistent surface conditions.
• Traceability. For industries with quality audit requirements, a complete record of what the robot actually did on each part — not just what it was programmed to do — has compliance value.

I have observed situations where companies installed capable scanning and vision hardware but collected no structured data from production. The equipment was sophisticated, but the intelligence never grew. The robot was doing the same thing on its thousandth part that it did on its first. Building the data infrastructure from the beginning is not optional if the goal is a system that actually improves.

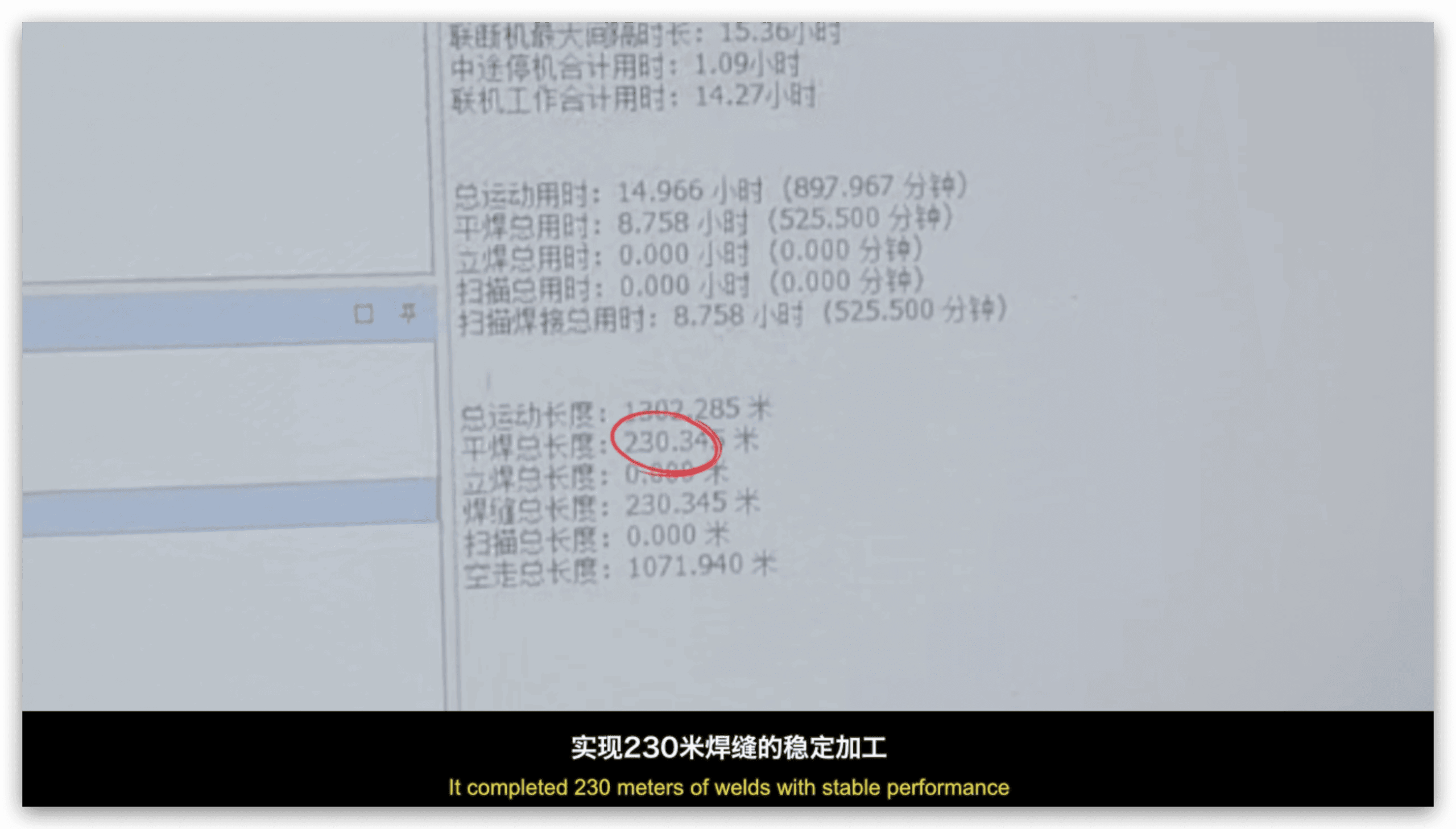

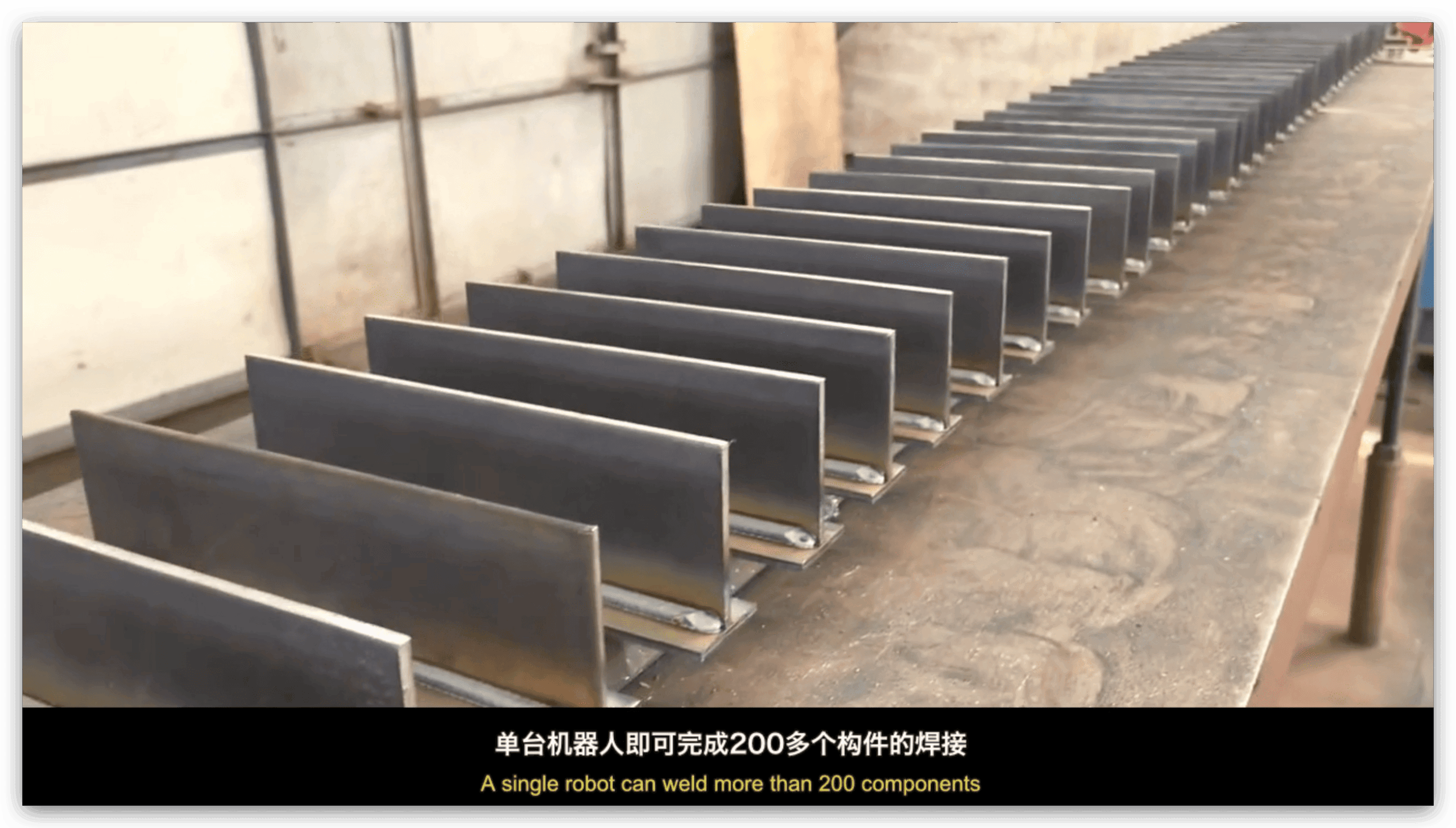

Quick Changeover: Why Intelligent Robotic Welding Is Especially Well-Suited for High-Mix, Low-Volume Production?

The traditional argument for robotic welding has always been high volume, high repetition. Weld the same joint ten thousand times, and the investment in setup pays back quickly. That argument is straightforward. The more interesting development in intelligent robotic welding is what happens at the other end of the volume spectrum — the high-mix, low-volume environment where a fabricator might run dozens of different part numbers in a single week.

Intelligent robotic welding addresses high-mix, low-volume production by replacing manual teach programming with automated path generation from 3D scans or imported models. Changeover from one part type to the next no longer requires an operator to re-teach the robot point by point. The system scans the new part, identifies its joints, generates a path, and retrieves matching process parameters — reducing changeover time from hours to minutes in favorable conditions.

This capability is meaningful, but it needs to be evaluated honestly. "Minutes" assumes the system can handle the new part's joint geometry reliably. Not all part families are equally scannable, and not all joint types are equally amenable to automated recognition.

What Makes a Part Family Well-Suited for Automated Changeover?

Several characteristics make a component well-suited for high-mix automated welding:

• Consistent material and thickness within a part family. If all members of the family are mild steel plate in a similar thickness range, the process database has a usable starting point. If the family mixes stainless, coated steel, and castings, each subgroup needs its own parameters.
• Joint types that can be reliably detected by the scanning technology. Fillet joints and butt joints with sufficient gap or step geometry for feature extraction are generally tractable. Very narrow V-grooves with included angles below about 45 degrees, or joints that are nearly flush with no geometric signature, are more difficult.
• Assembly variation that falls within the system's compensation range. Vision-based path correction can handle fit-up gaps and positional shifts within certain limits. When variation exceeds those limits — for example, a gap that is sometimes 0 mm and sometimes 4 mm on the same nominal joint — parameter switching logic becomes necessary, and that logic must be designed explicitly.
• Torch access throughout the joint path. This point deserves emphasis. Scan-and-weld systems solve the problem of where the joint is. They do not automatically solve the problem of whether the torch can physically reach it. More on this in a later section.

What True Changeover Time Looks Like

When a manufacturer advertises that their intelligent welding system achieves "zero programming" or "one-click changeover," it is worth asking exactly what steps that claim includes and excludes.

A complete changeover cycle typically involves:

1. Part loading and fixturing. The new part must be placed in the fixture. If the fixture itself must change, that time should count.
2. Scanning. The vision system captures the part geometry. Scan time depends on part size and system speed. For a medium-complexity structural component, this might range from 30 seconds to several minutes.
3. Feature recognition and path generation. The software processes the point cloud, identifies joints, and produces a robot path. This is usually fast — seconds to a minute — but depends on computational load and algorithm complexity.
4. Parameter retrieval. The system matches identified joints to process parameters from its database. If the joint type or material is not in the database, a human must intervene to define parameters.
5. Path review and approval. In many installations, an operator reviews the generated path before the robot runs. This is prudent practice, not a system failure.
6. First-part weld and inspection. The first part of a new run typically warrants verification before full production starts.

Total time from "last part of previous run" to "arc on for first part of new run" is the meaningful metric. This can genuinely be much shorter than traditional teach programming, but the savings depend on system capability, database completeness, and fixture design — not just the scanner itself.

Comparing Programming Approaches for High-Mix Production

The important insight is that these methods are not competitors. A mature intelligent welding installation often uses all of them, applying each where it fits the part and production pattern.

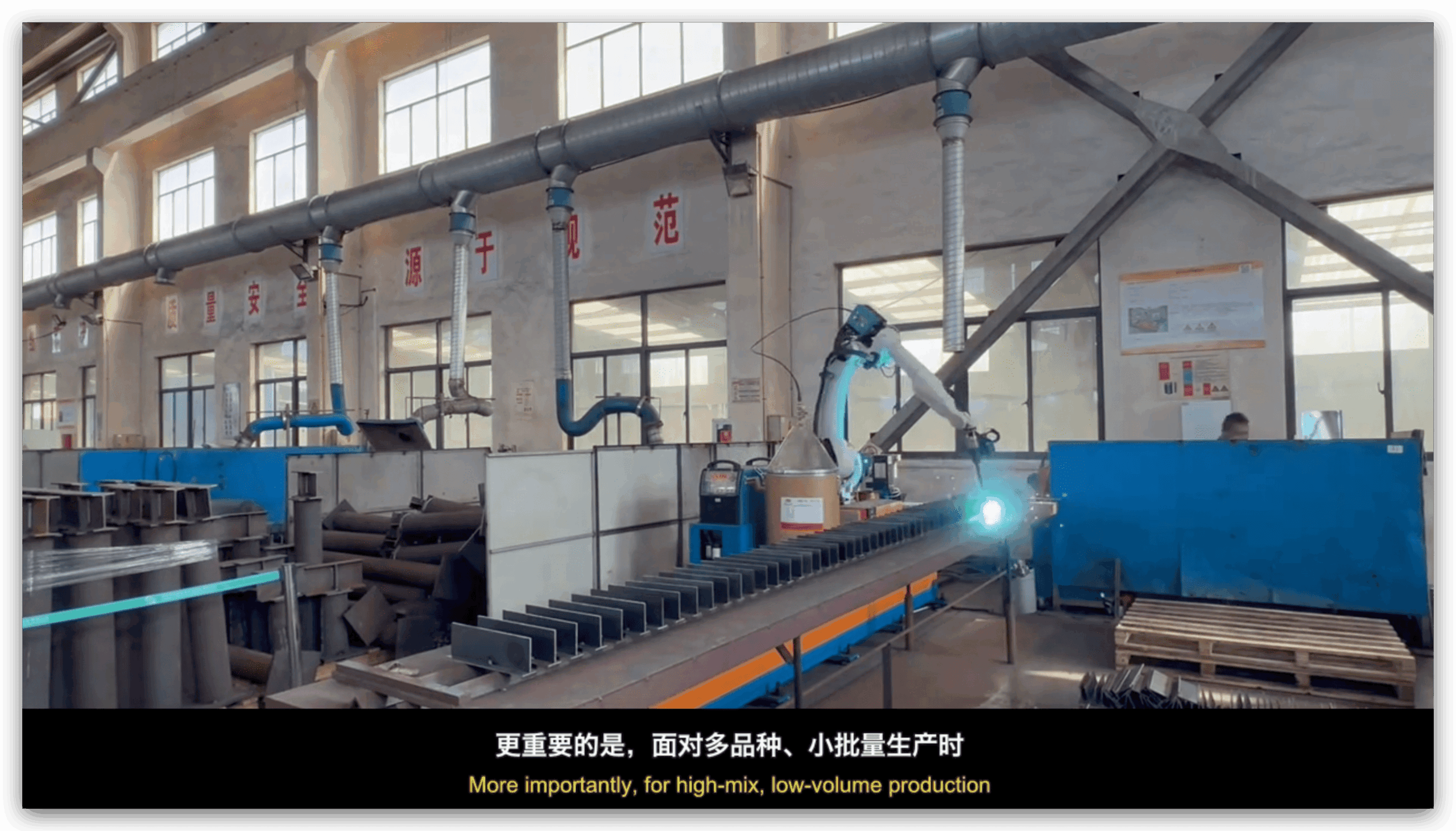

The Application Boundaries of No-Teach Welding, Positioners, and Vision Guidance — Where Do the Limits Actually Lie?

This is the section that most marketing materials skip. Understanding where intelligent robotic welding works well requires understanding where it does not work well — and being honest about both.

No-teach welding systems, positioners, and vision guidance each address different aspects of the automation challenge. No-teach systems reduce programming labor by generating paths from scans. Positioners improve weld quality by rotating components into favorable welding positions. Vision guidance compensates for assembly variation by correcting robot paths to match actual part geometry. Each technology has firm physical and process limits that determine where it applies and where other solutions are needed.

Let me work through each technology's limits in turn, using specific examples that represent real production situations.

No-Teach Systems: What Vision Can and Cannot Solve

A no-teach or teach-free welding system resolves one specific problem very well: it eliminates the need for an operator to manually guide the robot to each point along a weld joint and record that position. Instead, the vision system finds the joint and generates the path automatically.

What vision solves:

• Joint location uncertainty. Even with consistent fixtures, parts vary. Vision finds where the joint actually is.
• Geometric variation between parts. If joint length or curvature varies part to part, the vision system generates a path matched to the actual geometry rather than a fixed theoretical path.
• Repetitive programming labor. For a shop running many different part numbers, eliminating point-by-point teaching is a significant productivity gain.

What vision does not solve:

• Torch access. A vision system can identify a weld joint in a deep, narrow groove. It cannot shrink the torch to fit into that groove. If the torch body, nozzle, or contact tip geometry prevents the torch from reaching the root in the required orientation, scanning the joint more accurately does not fix the problem.
• Process qualification. Vision tells the robot where to go. It does not verify that the resulting weld has adequate fusion, acceptable porosity levels, correct throat dimension, or any other quality characteristic. Process qualification still requires test welds, inspection, and engineering judgment.
• Unusual surface conditions that fool the scanner. Very shiny surfaces, heavy mill scale, dark oxides, or irregular surface texture can degrade feature recognition reliability. This needs to be evaluated with actual samples, not assumed to work based on laboratory demonstrations.

The Cast Tooth Example

Consider a cast steel bucket tooth — a component with known casting variation, irregular groove geometry, and surface texture that is far from machined quality. The assembly fit-up varies significantly from piece to piece. A no-teach vision system can scan this part and identify the approximate weld joint location.

However, the groove on a cast tooth is often deep and narrow. The included angle may be less than 45 degrees. A standard torch with its full complement of nozzle, contact tip, and gas shroud may not physically enter the groove to reach the root. If the operator extends wire stick-out to compensate — running the wire longer than standard to get the arc closer to the root — arc stability degrades, shielding gas coverage at the arc point deteriorates, and weld quality suffers.

A skilled manual welder in this situation might remove the nozzle, use a narrow-profile torch configuration, position their body to create the right approach angle, and complete the root pass with technique that no robot can replicate in that geometry.

The practical solution is a hybrid process: manual root pass, followed by robot fill and cap passes. The human resolves the access problem. The robot handles the repetitive, high-deposition fill work where its consistency and endurance advantages apply. This division of labor is not a failure of the intelligent system — it is the correct engineering decision.

Positioners: When "Robot Can Reach It" Is Not Enough

A robot arm has reach. It can position its torch at a wide range of angles to a joint. But being able to reach a joint in some orientation does not mean that orientation is a good welding position.

Welding position affects:

• Gravity's effect on the molten pool. Overhead and vertical positions require the welder — human or robot — to work against gravity. This limits achievable travel speeds, usable parameter ranges, and deposit characteristics.
• Fusion quality. Flat and horizontal positions generally allow higher heat input and better fusion than overhead. A joint that can be welded overhead by a robot is not automatically a joint that will meet the same quality standard as the same joint welded in flat position.
• Wire deposition efficiency. Travel speeds achievable in flat position may be two to three times higher than in overhead position for the same filler metal and wire diameter.

A positioner — a motorized fixture that rotates and tilts the workpiece — addresses this by bringing the joint to the robot rather than asking the robot to reach to the joint in a difficult orientation. With a two-axis positioner coordinated with the robot, many joints that would otherwise require overhead or vertical welding can be repositioned to flat or horizontal position.

The Excavator Bucket Example

An excavator bucket contains dozens of joints: straight fillet welds along edges, curved joints following the bucket contour, corner joints at varying angles, and internal joints that are geometrically accessible from only certain approach directions.

A robot arm can kinematically reach most of these joints. But "kinematically accessible" does not mean "weldable in that position at required quality." The internal corner joints in particular may present overhead geometry without positioner assistance.

A no-teach system could scan the bucket and generate paths to all these joints. But if the system only generates geometric paths without accounting for:

• Welding position at each point along the path
• **Needed parameter
