We are as a long history as a laser Marking/Cutting/Welding/Cladding manufacturer in China.
The robot does not require traditional programming through teach pendants or code.

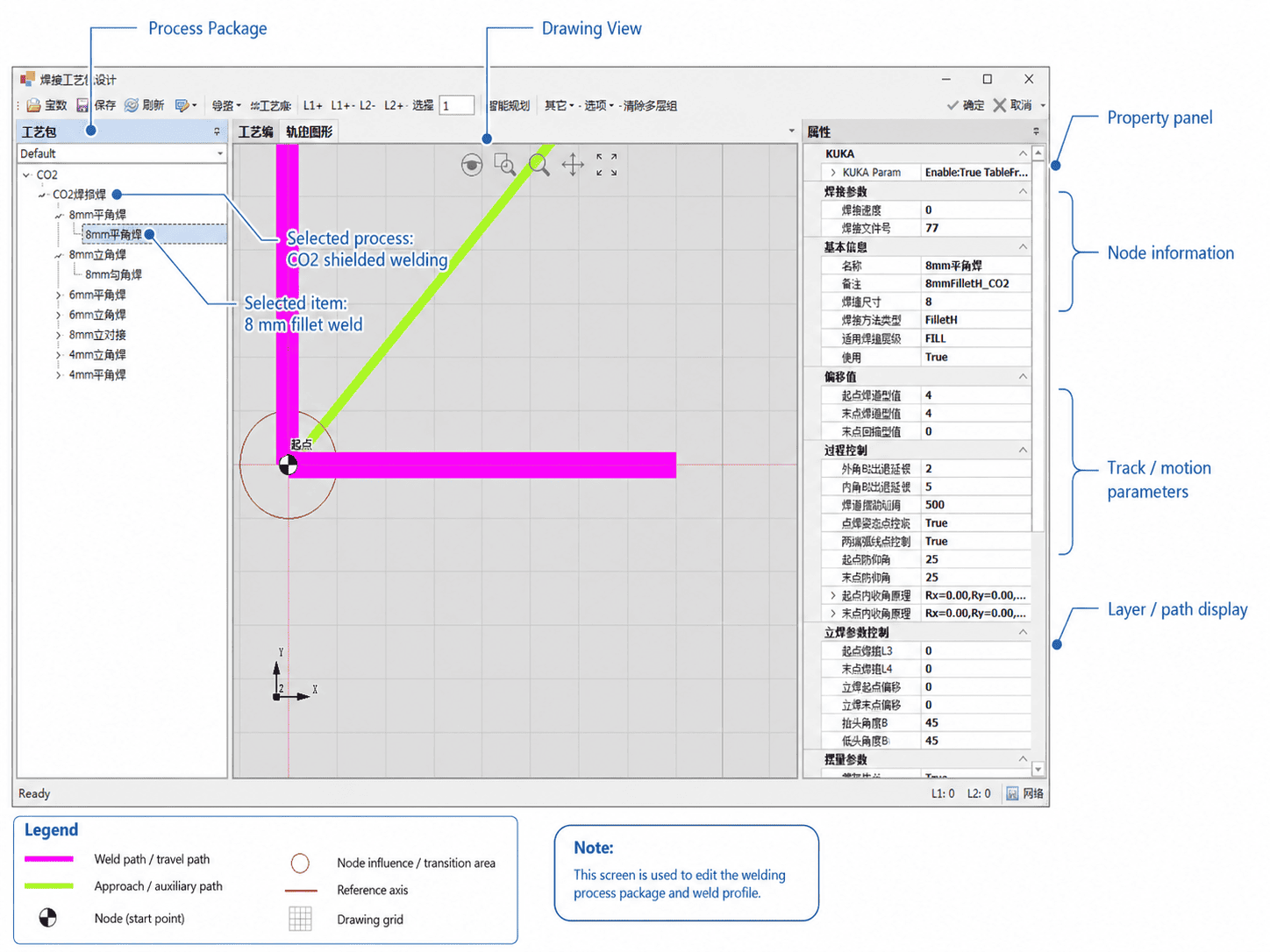

Users can operate the system through a simplified interface or by using pre-defined templates.
Eliminates the need for manual point-to-point teaching.
Utilizes smart recognition or AI-assisted systems to automatically detect weld paths.
0 CommentsComment on Facebook

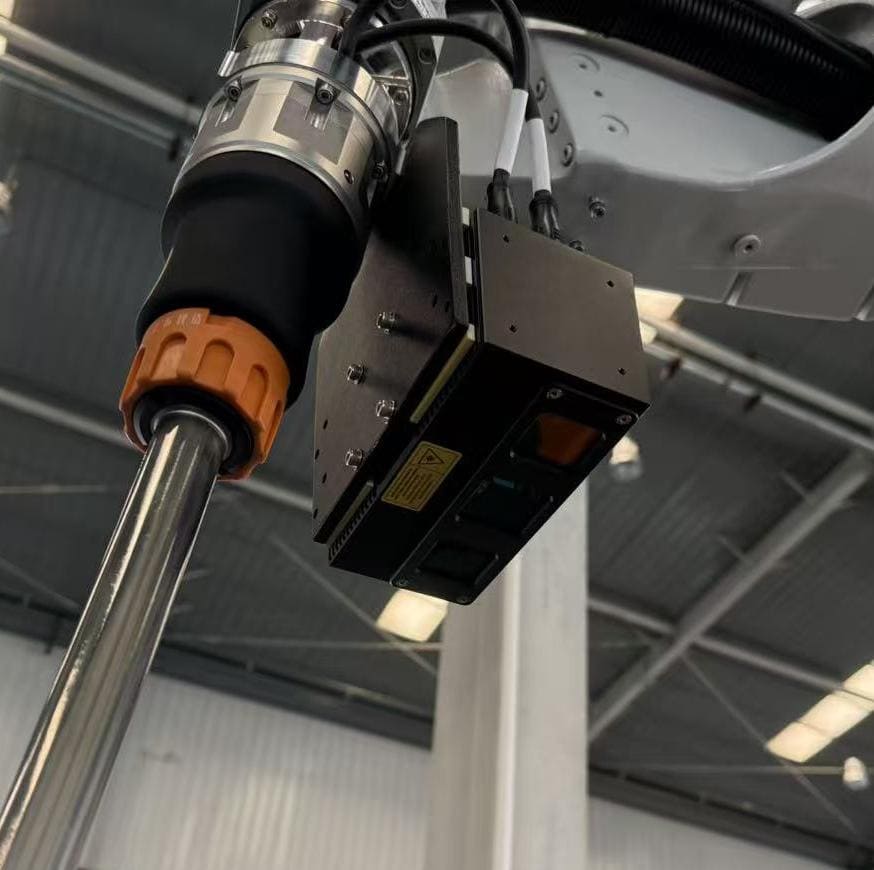

Collaborative robot used on-site by the customer for multi-layer, multi-pass welding with arc tracking, primarily focused on welding in narrow and confined spaces.
1 CommentComment on Facebook
💪🏿
Arc tracking in robotic welding systems enables precise seam tracking through real-time analysis of welding parameters. It utilizes arc sensors to detect dynamic changes in current/voltage caused by deviations in weld position, allowing the robot to dynamically adjust the torch trajectory. Key components include:
1. Sensing Module: Employs arc sensors (collecting current/voltage signals) with optional visual sensors for enhanced detection.
2. Control Algorithm: Processes signals using PID/fuzzy control to generate corrective instructions.
3. Actuation System: Servo/stepper motors drive mechanical arms for high-precision adjustments.
This technology addresses challenges like strong arc interference and complex joint geometries through advanced signal filtering (e.g., wavelet analysis) and multi-modal data fusion. Applications span automotive, aerospace, and pipeline welding, achieving weld accuracy within ±0.1mm.
0 CommentsComment on Facebook
