I often see tower factories lose time before welding even starts. The parts wait, the workers wait, and each small change creates new programming work.
A reverse modeling intelligent welding solution scans the power tower component first, builds a model in seconds, extracts the welding seam, and drives the robot to weld without manual teaching. I use it to reduce preparation time, improve weld consistency, and support batch production.
When I first visited this power transmission tower factory, I saw a very common problem. The workers had good welding skill, but the parts were not always simple. A row of cross arm components looked similar, but every batch had small size changes. Some holes moved a little. Some plates had small fitting gaps. Some fixtures had slight position errors. These small changes did not look serious from far away, but they created real pressure in welding automation.
In the past, many factories believed that a robot could only weld well after an engineer imported a 3D model, made an offline program, checked the path, corrected the points, and tested the first part. I understand this way. It works for stable products. It works for large batches. But many power tower manufacturers do not always produce one fixed part for months. They work with different towers, different drawings, different connection plates, different cross arms, and different batch sizes.
This is why I pay close attention to reverse modeling. In this project, the operator does not need to import a 3D model in advance. The vision guided welding robot scans the real component on the worktable. The system builds the model from the actual part. It then finds the weld seam, creates the welding path, and sends the task to the robot welding machine. In plain words, I call it “scan and weld” or “take a picture and weld.”
This is not only a new function. It changes how I think about robotic welding system design for steel structure and power tower parts. The robot no longer depends only on ideal drawings. It can look at the actual workpiece. It can handle the small differences that happen in a real workshop. That point matters a lot for users who want automation but do not want a difficult programming process.
How Can the System Generate a Welding Path Without Importing a 3D Model?
Manual programming slows many factories down. I have seen operators spend more time teaching points than welding parts, and this makes automation feel too heavy.

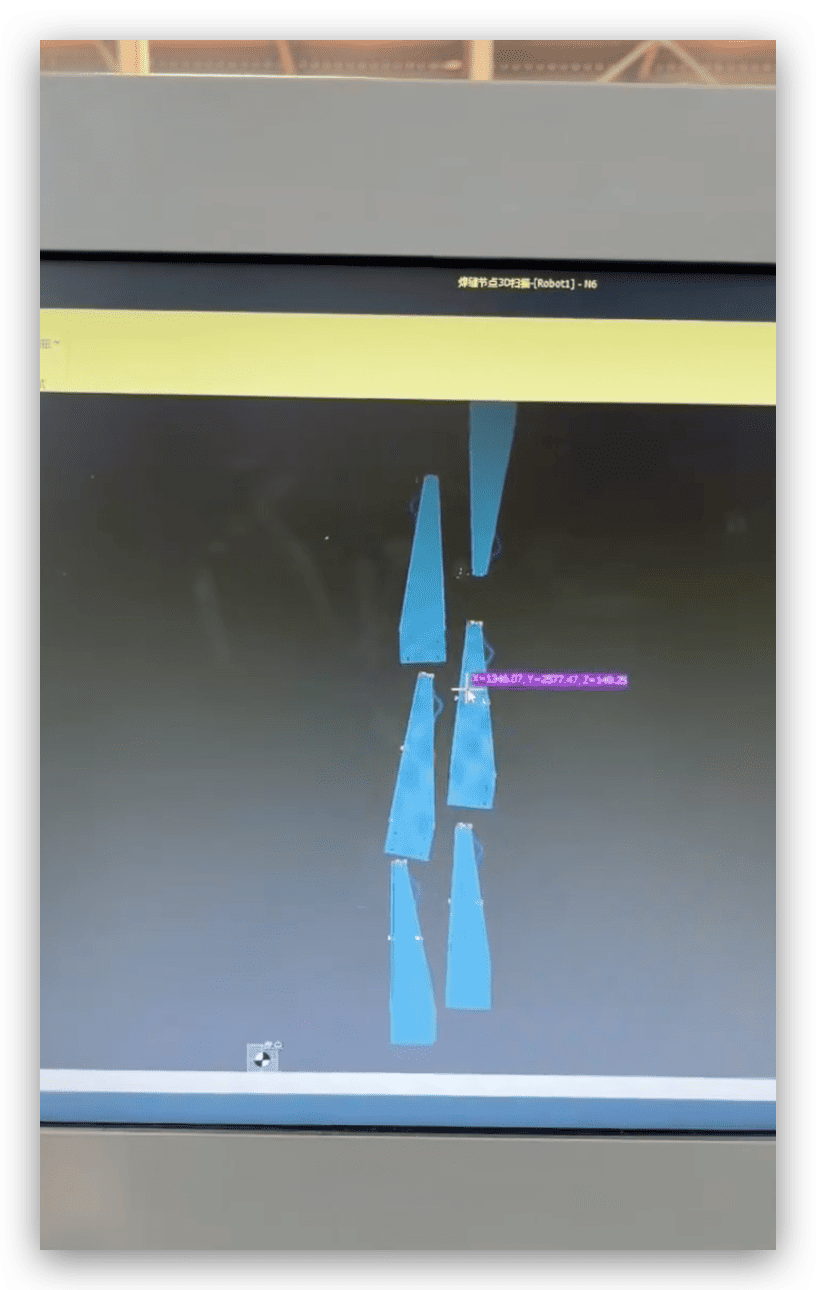

The system scans the real component, builds a digital model, identifies the seam position, and creates the welding path automatically. I use this method as a welding robot without teaching, especially for high-mix power tower components.
What I Saw on the Factory Floor

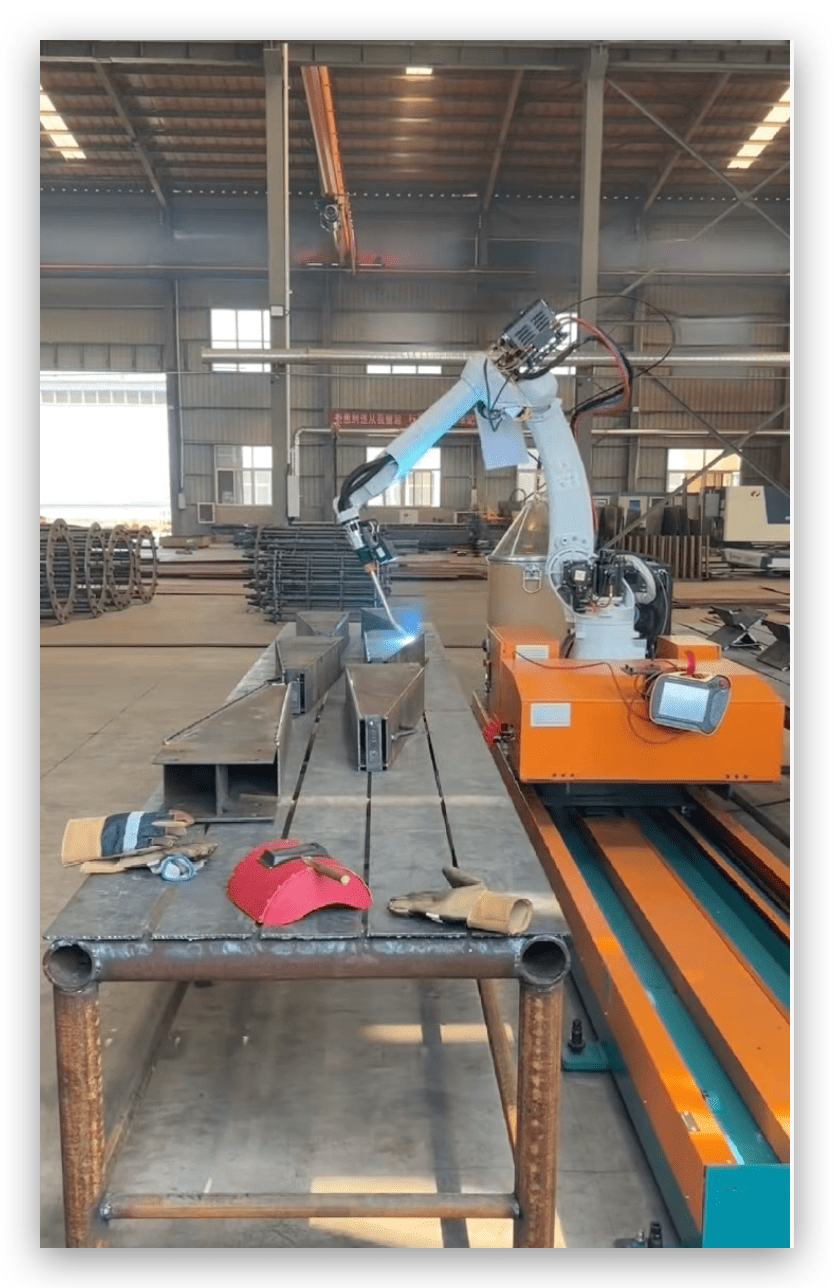

At the customer factory, the rail-mounted robot moved along a row of power tower cross arm components. The scanning head looked at each workpiece. The system collected the surface data. In tens of seconds, the screen showed a model of the component. I watched the seam lines appear on the software interface. The operator did not draw the seam by hand. The operator did not teach point by point. The system found the welding position from the scanned model.
This is the main value of reverse modeling. The system does not ask the factory to prepare a perfect digital file before production. It reads the real part. It uses the actual plate position, the actual angle, and the actual fixture state. This is useful because welded steel parts often have tolerance. I have seen many factories use good fixtures, but the final position still changes by a few millimeters. A traditional robot may miss the seam if the path is fixed. A vision guided welding robot can adjust the welding path based on the scanned result.
Why I Prefer Reverse Modeling for Power Tower Parts
Power tower parts are often made from angle steel, plates, ribs, cross arms, and connection structures. These parts are strong, but they are not always beautiful before welding. They may have cutting tolerance. They may have assembly tolerance. They may also have surface rust, zinc coating, or edge difference. A robot that only follows a fixed point list can face trouble in this environment.
With reverse modeling, I can let the system deal with many of these changes before welding starts. The robot scans first. The software calculates the seam. The industrial welding robot then follows the new path. This reduces human correction work. It also reduces the need for a highly skilled robot programmer at every shift.
| Traditional Robot Teaching | Reverse Modeling Intelligent Welding |
|---|---|
| The operator teaches points one by one | The system scans the workpiece and creates the path |
| The path depends on fixed part position | The path follows the actual scanned part |
| Skilled programming is needed | Basic operation is enough for many tasks |
| Small product changes need new teaching | Similar parts can be handled with less setup work |
| First-piece trial takes more time | First-piece preparation becomes faster |
| The robot follows memory | The robot follows real part data |
How the “Take a Picture and Weld” Process Works
I usually explain the process in a very simple way to customers. First, the operator loads the component on the fixture. Second, the scanner or 3D vision unit scans the key area. Third, the software builds the part model. Fourth, the system extracts the weld seam. Fifth, the robot starts welding based on the generated path. If the system is matched with an automatic seam tracking welding robot, the robot can also make real-time correction during welding when needed.
This process is useful because the operator does not need to understand robot code. The operator also does not need to spend a long time on every new workpiece. In my view, this is what a programming free welding robot should really mean. It should not only remove manual coding. It should also reduce the daily pressure on the production worker.
Where This Method Fits Best
I do not say reverse modeling is the best choice for every part. I never like to sell one method as a magic answer. If a factory produces one simple part for a very long time, a fixed robot program may be enough. But if the factory produces different tower components, small and medium batches, and parts with size changes, reverse modeling gives much more flexibility.
For power tower factories, this flexibility is important. The business often follows project orders. One order may include many cross arms. Another order may include different brackets and plates. The drawings change. The hole positions change. The angles change. The welding robot must not become another bottleneck. It must help the factory move faster.
| Suitable Workpiece Type | Why Reverse Modeling Helps |
|---|---|
| Cross arm components | Similar structure, but different lengths and plate positions |
| Connection plates | Many small welds, and manual teaching can be slow |
| Brackets | Shape changes happen often between projects |
| Stiffened plates | Seam position may change with assembly tolerance |
| Heavy steel frames | Large size makes manual teaching tiring |
| Construction machinery parts | Similar logic also supports robot welding for construction machinery |
My Practical View on Welding Quality
Path generation is only the first step. The weld still depends on welding process control. I always check the wire, gas, current, voltage, travel speed, torch angle, and plate fit-up. A good robotic welding system should combine smart path planning with stable welding parameters. If the system only finds the seam but cannot weld well, it is not complete.
For power tower parts, many users care about weld appearance and strength. They need stable bead width. They need enough fusion. They need fewer defects. They also need a process that workers can repeat every day. I often tell customers that automation is not only about speed. Automation must make the result more predictable. When the path comes from real scanning and the welding data is controlled, the factory can get a more stable weld than manual work in many repeated tasks.
How Do Two Rail-Mounted Robots and Four Workstations Support Continuous Production?
A single robot can still wait if loading and unloading are slow. I have seen good robots lose value because the station layout was not planned well.
Two rail-mounted robots with four workstations allow loading, scanning, welding, and unloading to happen in a balanced rhythm. I use this layout to reduce waiting time and keep production continuous.
Why the Layout Matters as Much as the Robot
Many people ask me first about robot brand, welding power source, and software function. These points are important. But I always look at the production rhythm first. A robot can weld fast, but it cannot create value when it is waiting for a crane, waiting for a worker, or waiting for the next part. This is very common in heavy fabrication workshops.

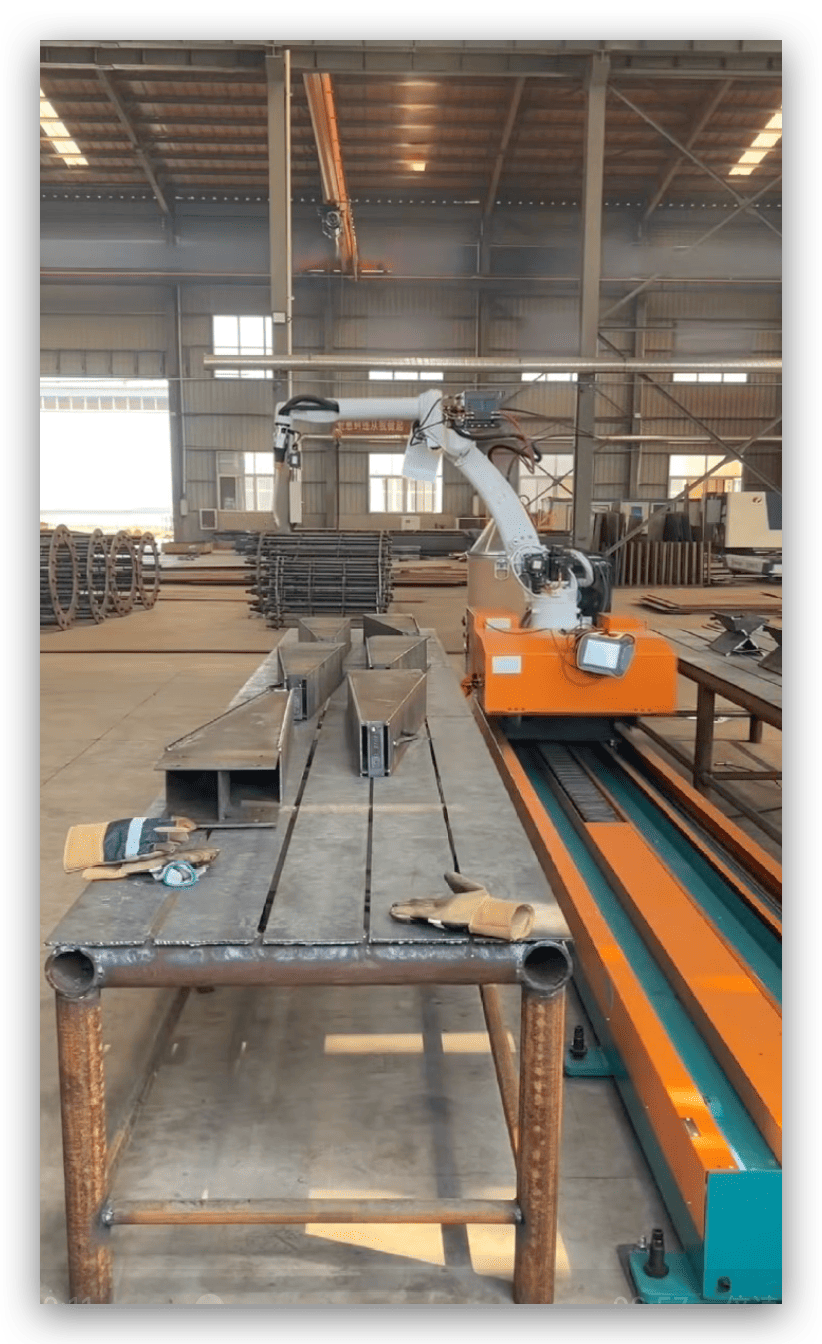

In this power tower project, the user factory uses two rail-mounted robots and four workstations. This layout gives the system a better rhythm. While one station is welding, another station can be loaded. While one robot finishes a part, the next part can already be prepared. The workers are not forced to stand still and wait for the robot to stop. The robot is also not forced to wait for workers all the time.
A rail-mounted robot is useful because power tower components can be long. A fixed robot arm may not cover the full length. The ground rail gives the robot more travel distance. The robot can move along the workpiece and weld multiple seams in one setup. This is a practical design for cross arms, long brackets, and similar steel structure parts.
How Four Workstations Improve Daily Output
I like four-station designs because they create a simple production loop. The factory can set up two stations on one side and two stations on the other side, or arrange them based on floor space and crane movement. The key idea is the same. The robots weld in one area, and workers prepare parts in another area.
| Station Status | Worker Action | Robot Action | Production Value |
|---|---|---|---|
| Station 1 | Part already clamped | Robot scans and welds | Active welding time increases |
| Station 2 | Worker loads next part | Robot is not disturbed | Loading does not stop welding |
| Station 3 | Finished part is unloaded | Robot works elsewhere | Unloading time is hidden |
| Station 4 | Next batch is prepared | Robot can switch later | Flow stays stable |
This kind of layout is very different from a small single-station robot cell. In a single-station cell, the robot stops when the worker loads or unloads. If the part is heavy, that stop can be long. In a four-station system, the robot can keep working for more of the shift. The final output does not come only from faster welding speed. It comes from less waiting.
Why Rail-Mounted Robots Fit Power Tower Production
Power tower components are often larger than normal small parts. Some workpieces are long. Some are heavy. Some need welds in several positions. If I use a small fixed robot station, the robot may not reach all seam areas. If I use too many fixtures, the floor becomes crowded. A rail-mounted industrial welding robot gives me more working range without making the robot arm too large.
The rail also helps when I need to weld a row of similar components. The robot can move from one part to the next. The vision system can scan each part. The software can create each path. The robot can then complete the welds in order. This makes the system suitable for batch production, but it still keeps the flexibility needed for project-based manufacturing.
I have also seen similar logic used in other heavy industries. For example, robot welding for construction machinery often needs long travel, large workpieces, and flexible seam detection. A boom, frame, or bracket may have many welds across a large area. In those cases, a rail-mounted robot and a vision system can solve many reach and tolerance problems. Power tower parts are different products, but the production pain is very similar.
How I Match Welding Process and Robot System
The robot structure is only one part of the solution. The welding process must match the workpiece. For many tower components, arc welding is common. A robotic MIG welding system can be a good choice because it offers stable deposition, good speed, and strong process control. In some cases, an automatic MIG welding robot is the most practical solution for carbon steel plates and structural components.
I do not choose the process only by name. I first look at the material, thickness, weld size, joint type, gap condition, and required production speed. If the part needs deep penetration and high deposition, I choose the proper power source and wire. If the part needs better control on thin areas, I adjust the current and travel speed. If the seam position changes, I consider laser vision, arc tracking, or both.
| Selection Point | What I Check | Why It Matters |
|---|---|---|
| Material | Carbon steel, galvanized steel, coated steel | It affects wire, gas, spatter, and cleaning |
| Thickness | Plate and angle steel thickness | It affects current, pass number, and heat input |
| Joint type | Fillet weld, lap weld, butt weld | It affects torch angle and path planning |
| Gap condition | Small gap or unstable gap | It affects seam tracking and weld quality |
| Batch size | Large batch or mixed batch | It affects fixture and programming method |
| Worker skill | Robot engineer or normal operator | It affects system operation design |
What I Learned From the Four-Station Project

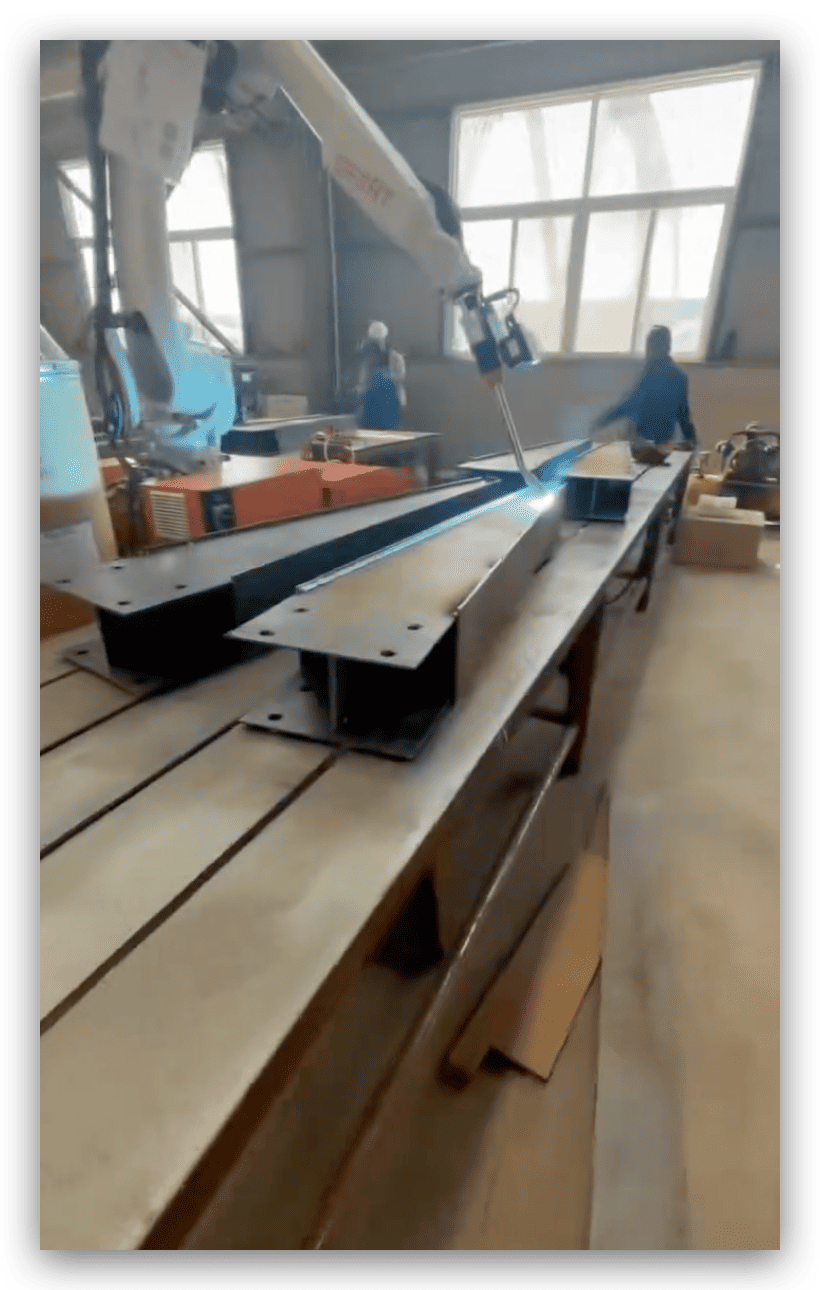

When I stood near the line, I noticed one thing. The robot itself did not look rushed. The workers did not look rushed either. The system created a calm rhythm. The scanning happened before welding. The robot moved along the rail. The welding arc stayed stable. The finished welds looked more even than manual welds from a busy shift.
This is the production feeling I want customers to have. A good robot system should not make the workshop more stressful. It should make the work more controlled. It should reduce repeated manual work. It should allow workers to move from heavy welding labor to loading, checking, operating, and managing the process.
In many factories, the biggest problem is not that workers are lazy or robots are not advanced enough. The problem is that the process has too many breaks. The worker waits for the crane. The robot waits for the worker. The engineer waits for the drawing. The welding team waits for the first article approval. A two-robot and four-station layout cannot solve every management problem, but it can remove many small waiting points inside the welding process.
Why Is This Solution Suitable for Cross Arms, Connection Plates, and Similar Power Tower Components?
Power tower factories often weld many similar parts, but the details keep changing. This makes manual welding tiring and makes traditional robot teaching slow.
This solution suits cross arms, connection plates, brackets, and similar tower components because it uses scanning, automatic path generation, and stable robotic welding to improve weld quality and batch efficiency.
Why Cross Arms Are a Good Starting Point
I often suggest cross arm components as a starting point for power tower welding automation. Cross arms usually have repeated structures. They also have enough weld length to show clear efficiency improvement. Workers usually weld many similar areas in one batch. This makes the part suitable for robotic welding.
But cross arms also have enough variation to make traditional teaching uncomfortable. The length may change. The plate position may change. The assembly tolerance may change. If the factory teaches each new version point by point, the robot becomes slow to prepare. That is why reverse modeling is so useful here. The system scans each component and builds the actual model. The programming free welding robot then creates the path and starts welding with much less manual input.
In my experience, cross arm welding also benefits from stable torch posture. Manual welders may change the angle during a long shift. Fatigue affects the bead. A robot can keep the same torch angle, same travel speed, and same welding condition. This helps the weld bead look more uniform. It also helps reduce rework when the fixture and process are correct.
Why Connection Plates Also Need Automation
Some people think connection plates are too small or too simple for robotic automation. I do not fully agree. Connection plates often have repeated short welds. Manual welders can finish them, but the work is boring and repetitive. When the order volume grows, short welds can consume a surprising amount of time.
A vision guided welding robot can help here because it finds the real seam position. Many connection plates have small size differences or small placement errors. If the robot uses a fixed program, it may need frequent correction. If the system scans first, it can adjust the path. This makes automation more practical for mixed components.
| Component | Common Welding Pain | How the Intelligent System Helps |
|---|---|---|
| Cross arm | Long part, repeated welds, changing sizes | Rail robot covers length and scanning creates paths |
| Connection plate | Many short welds, position tolerance | Vision finds seam and reduces teaching work |
| Bracket | Different shapes across projects | Reverse modeling reduces program preparation |
| Stiffener plate | Small assembly errors | Seam tracking improves path accuracy |
| Angle steel assembly | Many corner welds | Robot keeps stable torch angle |
| Heavy support part | Manual welding fatigue | Robot improves repeatability |
How Weld Quality Improves in a Real Workshop
I always separate “weld quality” into visible quality and internal quality. Visible quality includes bead shape, width, smoothness, spatter, undercut, and overall appearance. Internal quality includes fusion, penetration, porosity, cracks, and strength. A robotic system can help both, but only when the process is set correctly.
For visible quality, the robot gives stable movement. It does not shake from fatigue. It does not suddenly slow down because the welder is tired. It does not change torch angle without reason. This helps the weld bead become more consistent. For internal quality, the welding power source, parameters, wire feeding, gas shielding, and joint preparation are very important. I always test the process before full production. I cut samples when needed. I check penetration when the customer has strength requirements.
An automatic seam tracking welding robot can help when the seam is not perfectly straight or when the part position changes slightly. The system can follow the seam instead of blindly following an old path. This is important for structural parts because real parts are rarely perfect. In power tower production, the final weld must be stable because the components work outdoors and carry load. The robot helps create repeatability, and the process test helps confirm strength.
Why Batch Efficiency Improves
Batch efficiency improves because several time losses become smaller. The first loss is programming time. Reverse modeling reduces the need for manual point teaching. The second loss is waiting time. The two-robot and four-station layout lets loading and welding happen at the same time. The third loss is rework time. Stable welding reduces uneven bead shape and missed welds. The fourth loss is training time. A welding robot without teaching is easier for normal operators to use than a traditional robot that needs complex programming.
| Efficiency Factor | Manual Welding | Traditional Robot | Reverse Modeling Intelligent Robot |
|---|---|---|---|
| Setup time | Low for one part, high for many workers | High when teaching is needed | Lower because scanning creates paths |
| Welding speed | Depends on worker condition | Stable after programming | Stable after scanning and path generation |
| Flexibility | High, but quality varies | Lower for changing parts | Higher for mixed parts |
| Labor need | More welders needed | Fewer welders, more programmers | Fewer welders and less teaching work |
| Quality repeatability | Varies by person and shift | Good for fixed parts | Good for parts with small differences |
| Batch rhythm | Hard to balance | Good if fixtures are ready | Better with multi-station layout |
I often tell customers that automation is not only a machine purchase. It is a production method change. If the factory only buys one robot and places it in a corner, the result may be limited. If the factory plans the part flow, fixture, scanning, welding process, and operator work together, the result can be much better.
How This Solution Supports Small and Medium Workshops
Many small and medium workshops want automation, but they worry about programming. They may not have a full robot engineering team. They may have good welders, but not robot programmers. They may also have many product types. This makes a normal robot cell difficult to use.
This is where I see real value in a programming free welding robot. The system lowers the entry barrier. The operator can load the part, start scanning, check the seam path, and begin welding. Of course, the factory still needs training. The worker must understand safety, clamping, welding parameters, and basic maintenance. But the daily operation becomes much easier than point-by-point teaching.
For factories that use a robot welding machine for the first time, I usually suggest starting from a clear product family. Cross arms and connection plates can be good examples. The factory can build confidence from one group of parts. Then it can expand to more brackets, plates, and assemblies. This step-by-step method is safer than trying to automate every product on the first day.
My View on Return on Investment
Customers often ask me when they can recover the investment. I cannot give one fixed answer without their production data. I need to know labor cost, shift hours, weld length, part quantity, rework rate, and current production bottleneck. But I can say where the savings usually come from.
The first saving is labor reduction. One operator can manage more welding output than one manual welder in many repeated tasks. The second saving is efficiency. The robot can keep a stable speed and work longer hours with less fatigue. The third saving is quality. Fewer defects mean less grinding, repair, and inspection trouble. The fourth saving is order capacity. When the factory can produce faster, it can accept more work or deliver faster.
| ROI Source | How It Appears in Production |
|---|---|
| Less manual welding time | Workers move from welding to operating and inspection |
| Less programming time | Reverse modeling shortens preparation for new batches |
| Less rework | Stable path and parameters reduce welding defects |
| Better delivery time | Continuous production increases daily output |
| Better worker use | Skilled welders can manage process instead of doing all welds |
| More flexible orders | Mixed batches become easier to handle |
I like to be honest about ROI. A robot is not a money printer. It must match the product. It must have enough work to do. It must be supported by good fixtures and good operators. But when the product is suitable, the return can be very strong. Power tower components often have enough repeated welding work to make the investment meaningful.
Why I Connect This Solution With Future Factory Upgrades
This reverse modeling solution is not only for one production line. It also points to a more flexible factory direction. In the past, many welding robots needed fixed parts, fixed programs, and fixed fixtures. That model was useful, but it did not fit every factory. Now, with 3D vision, automatic path generation, and seam tracking, the robot can adapt to more real workshop conditions.
I see this as an important step for power tower manufacturers. The market asks for faster delivery. Workers are harder to find. Skilled welders are expensive. Product types keep changing. A factory that depends only on manual welding may face more pressure in the next few years. A factory that builds flexible automation can become more stable.
This is why I believe the combination of reverse modeling, robotic welding system design, and multi-station production will become more common. It gives the factory a practical way to automate without forcing every part into a perfect standard shape. It also gives workers a better role. They can operate, check, adjust, and manage the line. They do not need to spend every day under welding smoke and heat.
I still respect skilled manual welders. Many of them know welding better than any machine. But I also know that factories need stable production. The best direction is not to replace human knowledge. The best direction is to put that knowledge into a system that can repeat good results every day.
Conclusion
I use reverse modeling welding to help tower factories scan real parts, generate paths, and weld cross arms and plates with better speed and consistency.
